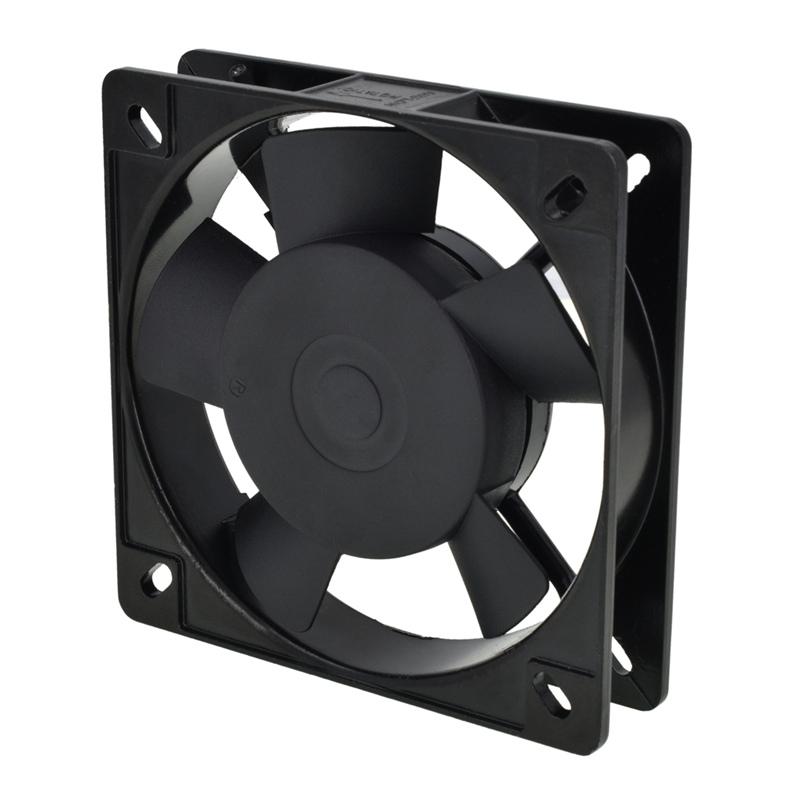

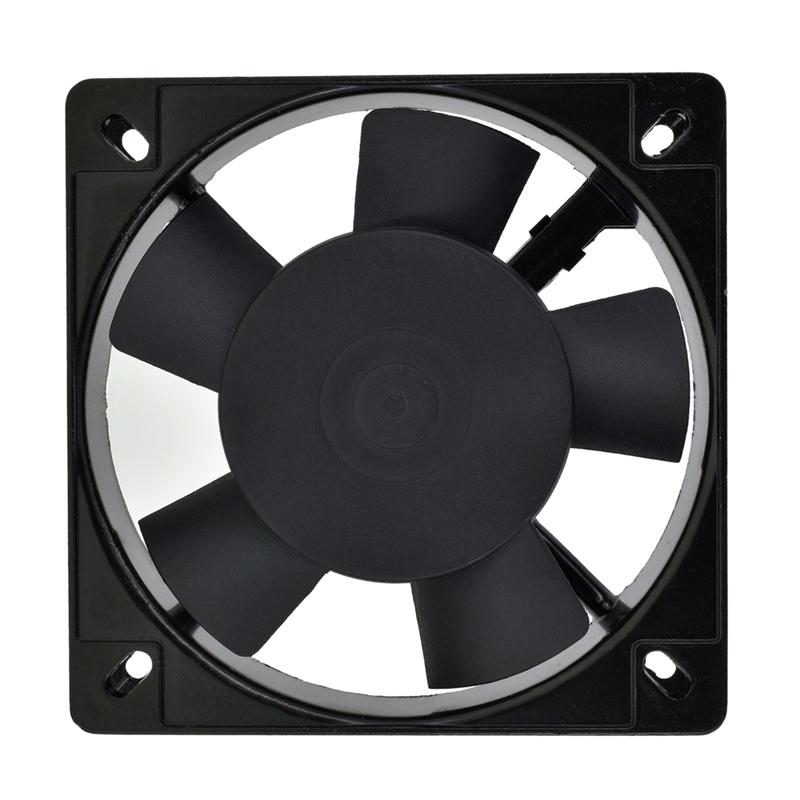

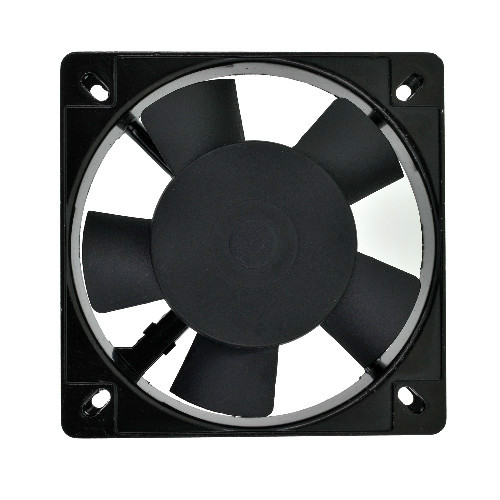

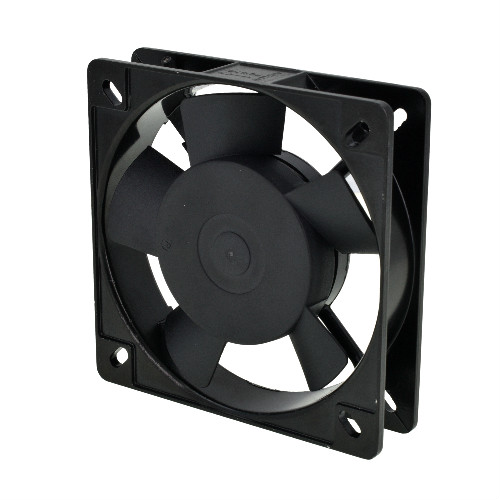

110mm Aluminum Silent Ventilation Axial Exhaust Fan

110/60Hz 220/50Hz Axial Cooling Fan with FG Function. This function mainly outputs a square wave signal from the inside of the fan, and the frequency of the signal represents the rotating speed of the fan, which means that the rotating speed of the cooling fan can be read by reading the FG signal.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

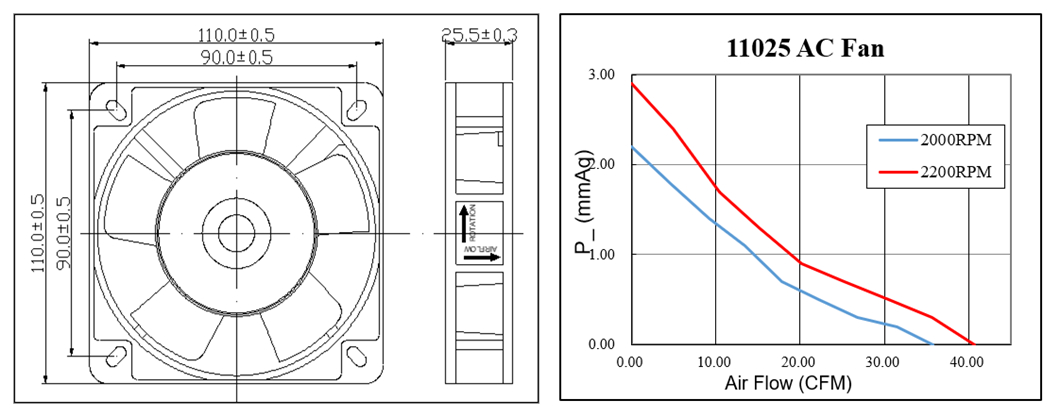

• Dimension of outer the frame is 110 mm(L) x 110 mm(W) x 25 mm(H) / The size of fan in inch is 4.33 in(L) x 4.33 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 90.0 ± 0.5 mm / 3.54 in.

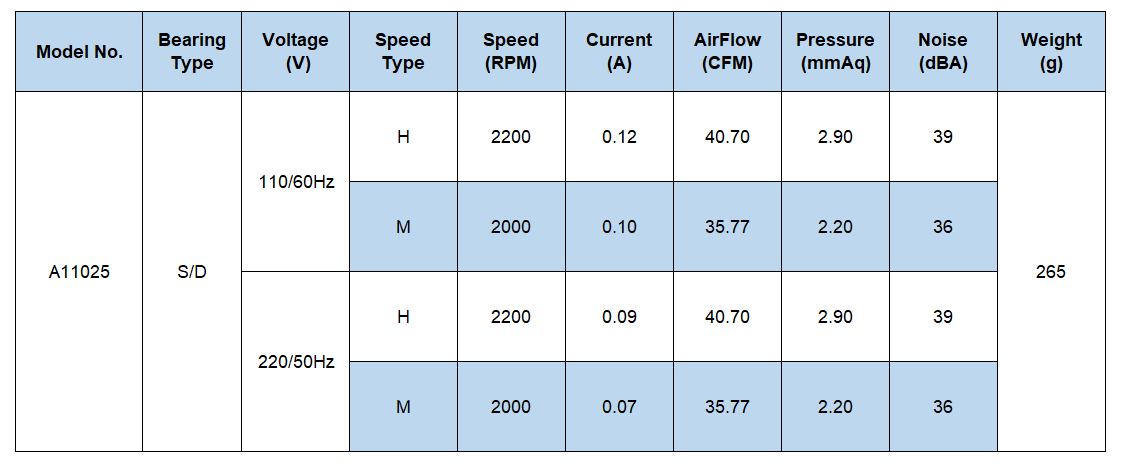

• Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.07 ~ 0.12 Amp | Speed: 2000 ~ 2200 RPM | Airflow: 35.77 ~ 40.70 CFM | Noise: 36 ~ 39 dBA | Pressure: 2.20 ~ 2.90 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

AC AXIAL FAN 110x110x25mm(4.33"x4.33"x0.98")

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• High performance but low noise;
• It's a good choice for cooling your equipments;
• Effective and extremely quiet ventilation for quick removal of humidity and odors;
• Available in frequencies of 50Hz and 60Hz, as well as varying rated voltages 110V, 220V;
• Use a unique design, increases airflow, protect the fan from overheating at high temperatures;

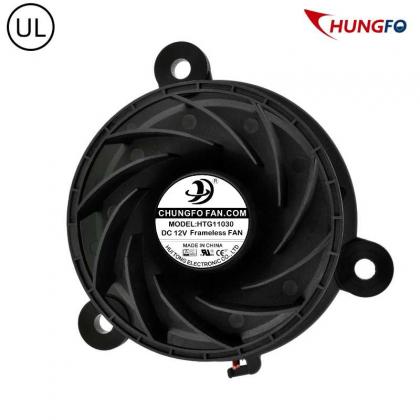

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Application

Our axial fans are mainly used for computer, power, home appliance, car, security, communication, industrial control, electric power, electric welding machine, instrument panel, and etc.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
