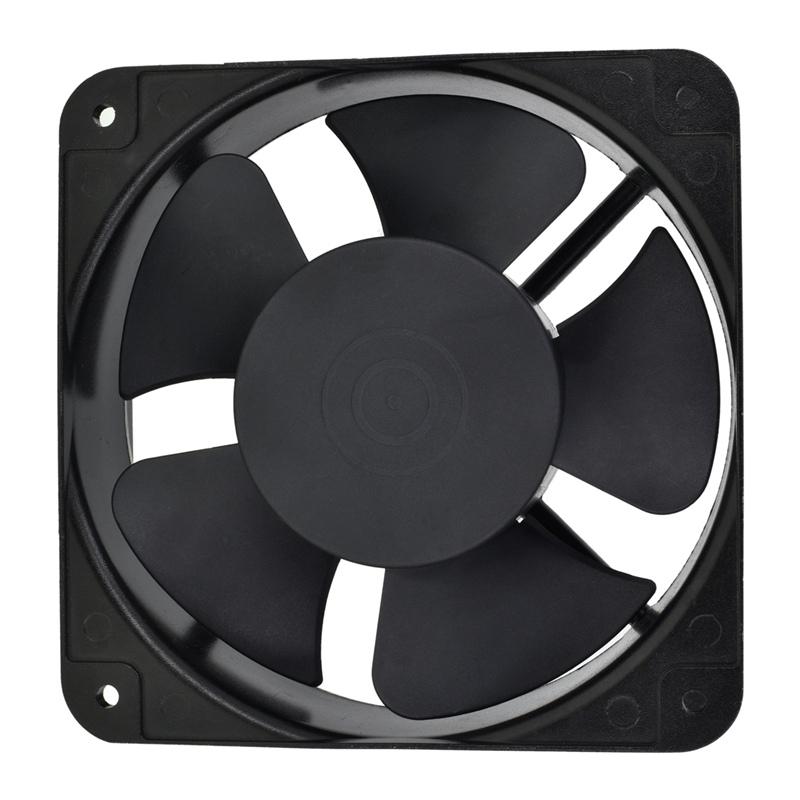

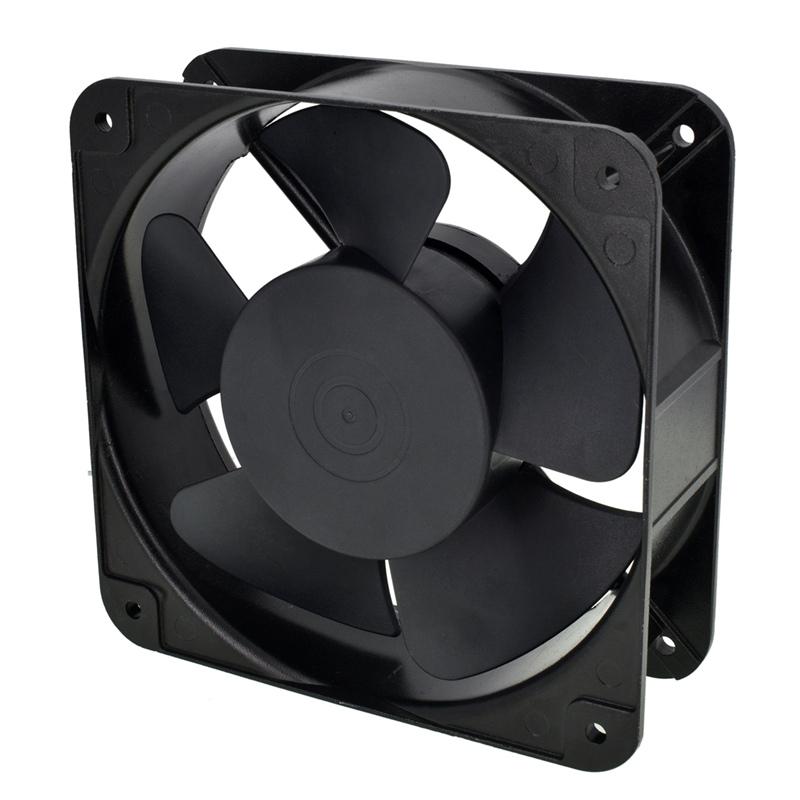

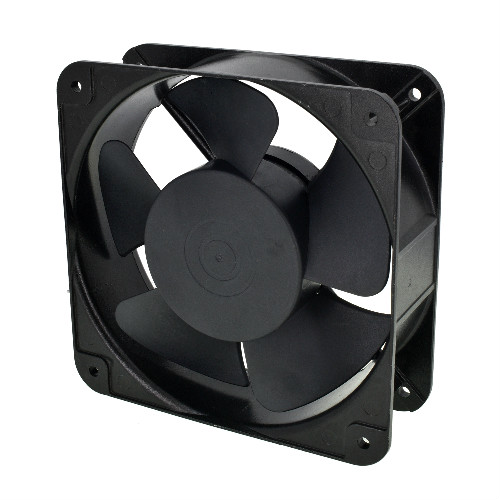

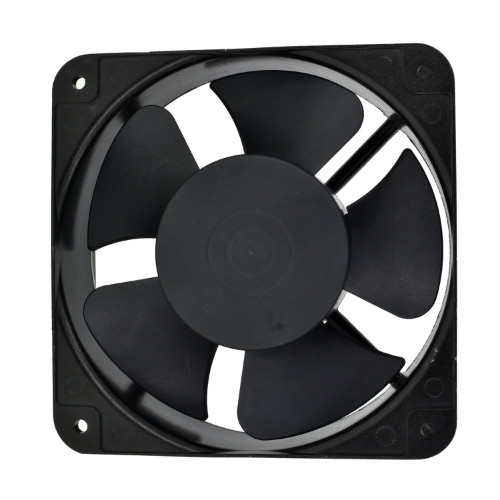

Air Cooled Radiator Ventilation Square Exhaust Fan

7 Inch High Speed 180mm Powerful Range Industrial Metal Durable Axial Flow Fan. This fan ensures the required cooling and minimizes noise levels.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 180 mm(L) x 180 mm(W) x 60 mm(H) / The size of fan in inch is 7.08 in(L) x 7.08 in(W) x 2.36 in(H); The center to center distance beween the mountiong holes is 155.0 ± 1.0 mm / 6.10 in.
• Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.11 Amp | Speed: 2600 ~ 3000 RPM | Airflow: 14.71 ~ 16.73 CFM | Noise: 30 ~ 34 dBA | Pressure: 2.7 ~ 3.5 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

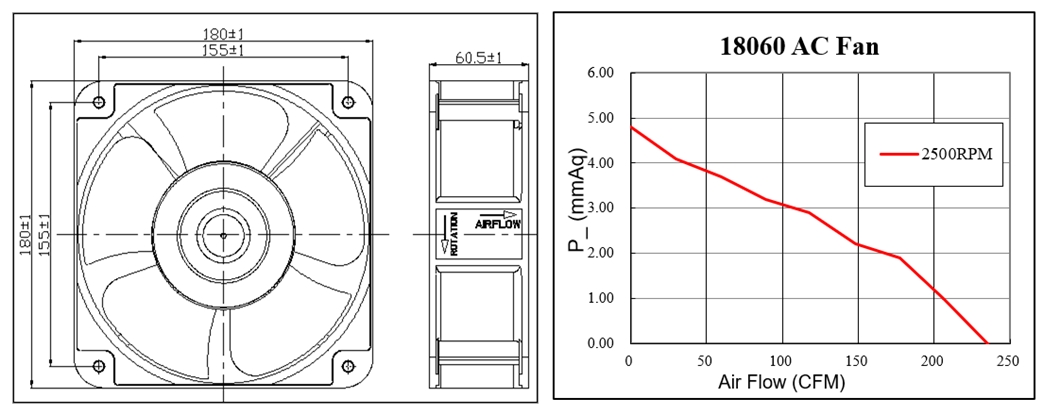

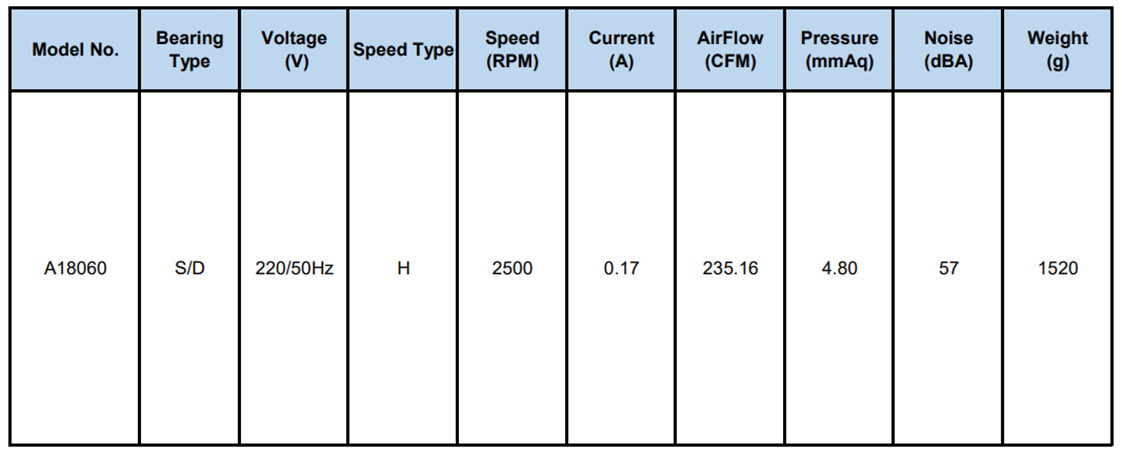

AC AXIAL FAN 180x180x60mm(7.08"x7.08"x2.36")

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s

Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Double ball bearing exhaust fan with square housing;
• The 5 blades design, improve the air flow performance;
• When the power input voltage is 220V, the fan can be work very quiet and silent;
• Provide systematic products and customized service;
• Long life cycle, low noise, high efficiency, meet the strict test of waterproof and dustproof.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Application

For DC/AC axial fan products :These are widely application on communication products, optoelectronic products, consumer electronics, automotive, home appliances, IT telecommunication.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
