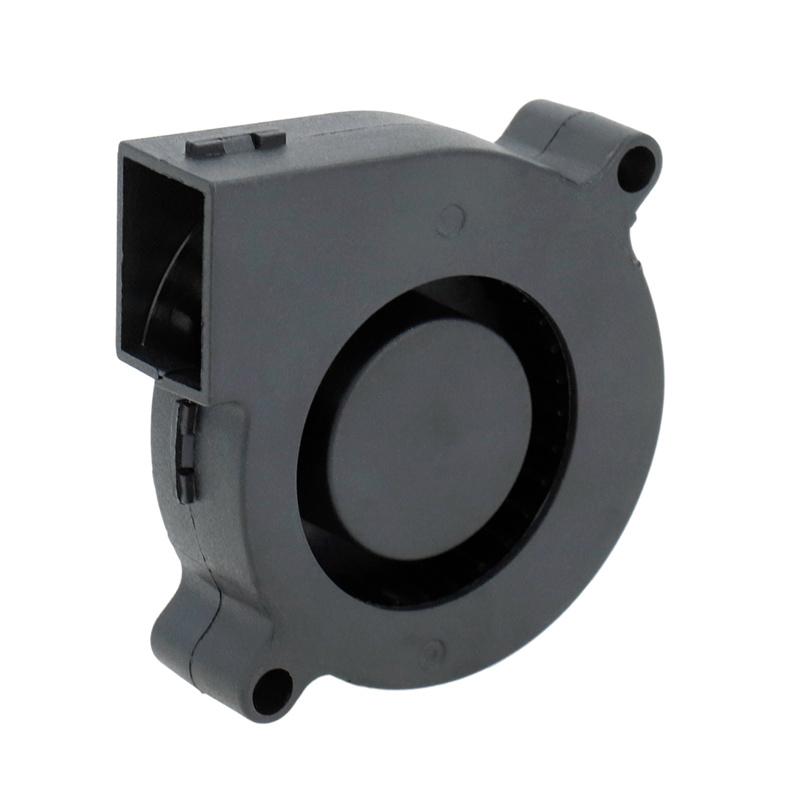

Heat Gun Air Radiator Ventilation Centrifugal Blower

Small size and light weight but can generate a decent air flow output. Centrifugal brushless ball bearing radiator blower fan is made for cooling and ventilating solution with long life expectancy.

  • Item NO.:

    C05015B
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    26g
  • Product Detail


Plastic Impeller DC Brushless Centrifugal Air Cooling Radiator Fan Ventilation Blower. Size of the fan is 50mm x 50mm x 10mm, with ball bearings system has a lifespan of 67,000 hours.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

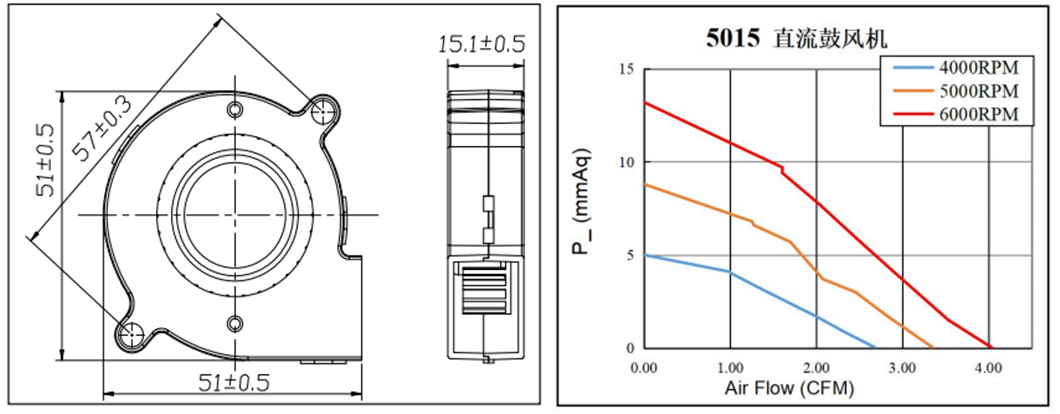

  • Dimension of outer the frame is 50 mm(L) x 50 mm(W) x 15 mm(H) / The size of fan in inch is 1.96 in(L) x 1.96 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 57.0 ± 0.3 mm / 2.24 in.
  • Operating Voltage Range: DC 5V/12V/24V | Current: 0.04 ~ 0.27 Amp | Speed: 4000 ~ 6000 RPM | Airflow: 2.69 ~ 4.05 CFM | Noise: 31 ~ 42 dBA | Pressure: 5.00 ~ 13.20 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

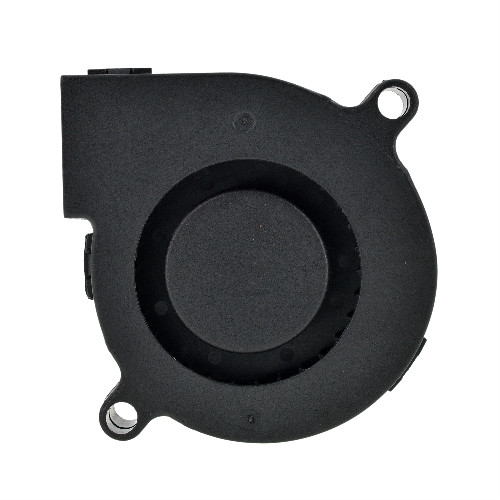

DC BLOWER FAN 50x50x15mm(1.96"x1.96"x0.59")

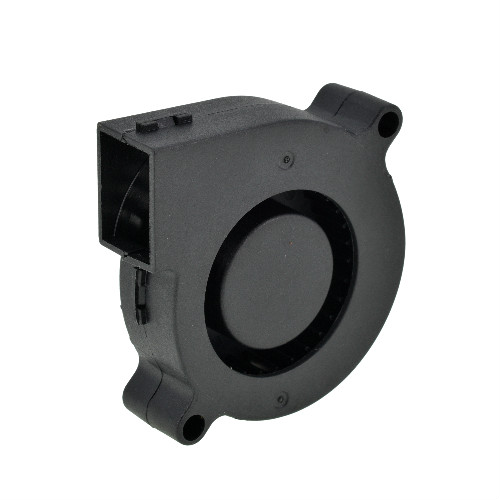

 DC Centrifugal Fan 50x50x15mm waterproof radial blower fan


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

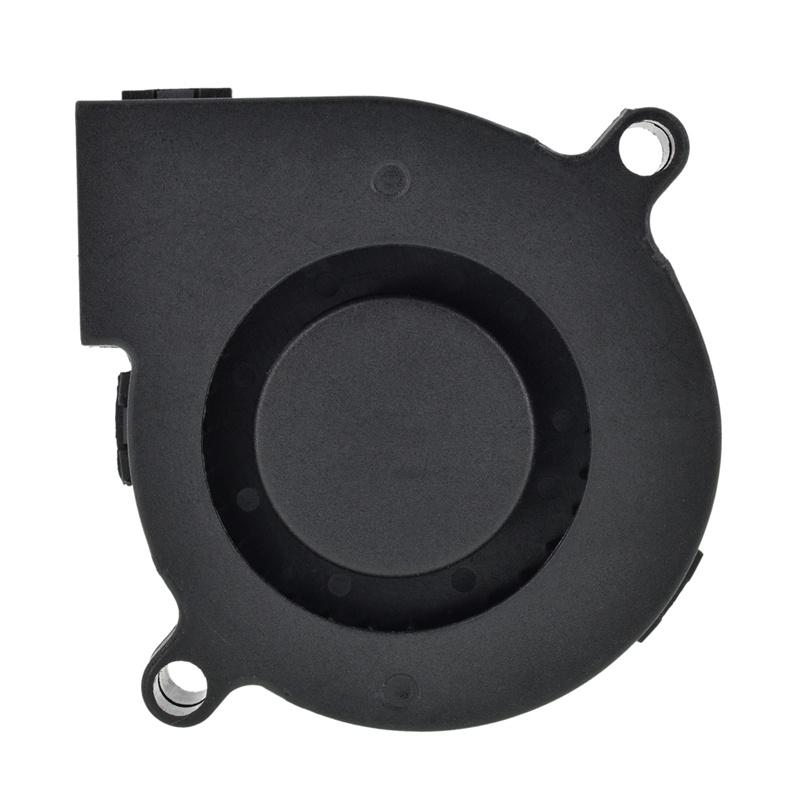

50x50x15mm silent air blower cooling fan

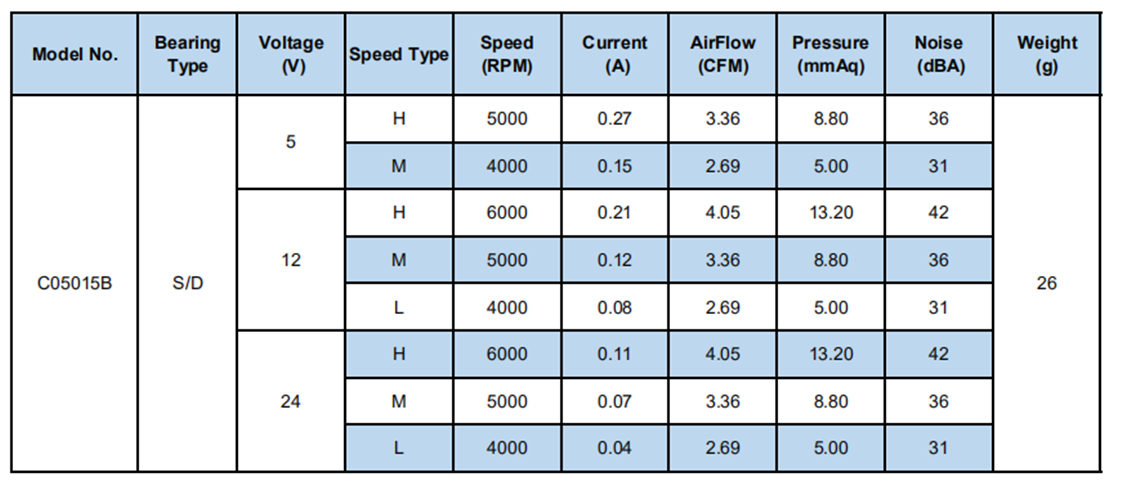

   5015 DC Blower Cooling Fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Strict Waterproof & Dustproof Test;
  • Controllable versatility, high speed of 5000RPM in operation;
  • Impedance protection ensures safe operation at high temperatures;
  • PBT frame and blades, not easy to deform and break, long service life;
  • They are available to customers in various voltages, and are fabricated in accordance with international standards.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Blower C04020 40x40x20mm(1.57"x1.57"x0.78") DC Blower C06015B 60x60x15mm(2.36"x2.36"x0.59")
C05015 50x50x15mm(1.96"x1.96"x0.59") C07525 75x75x25mm(2.95"x2.95"x0.98")
C05025 50x50x25mm(1.97"x1.97"x0.98") C07530 75x75x30mm(2.95"x2.95"x1.18")
C05828 58x58x28mm(2.28"x2.28"x1.10") C09733 97x97x33mm(3.91"x3.91"x1.30")
C06015A 60x60x15mm(2.36"x2.36"x0.59") C12032 120x120x32mm(4.72"x4.72"x1.26")



Application

We are committed to solving cooling and ventilation problems of Electronic Products, Medical Equipment, Office Electrics, Air Purifier, Automotive Electronics, ect.

high airflow centrifugal blower fan

  • Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
  • Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
