AC Fan Brushless Shaded Pole Gear Electric Motor

Single-phase AC motors are cheaper in cost, more reliable, simple in construction, and very easy to repair.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

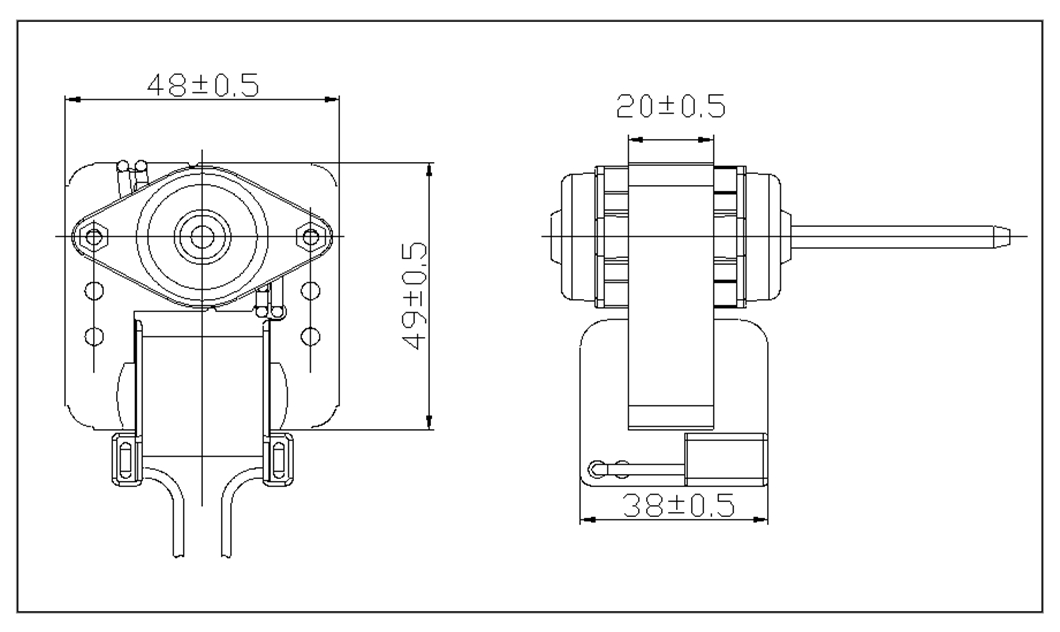

• Dimension of the motor is 48 mm(L) x 20 mm(H) / The size of fan in inch is 1.88 in(L) x 0.78 in(H).

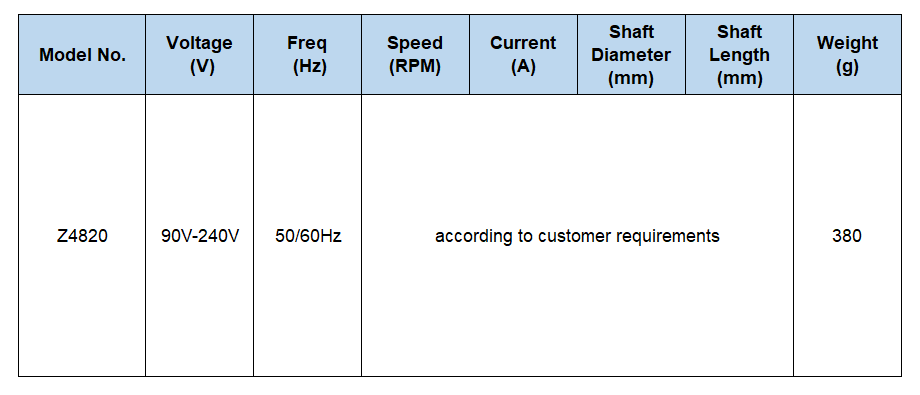

• Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
• Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

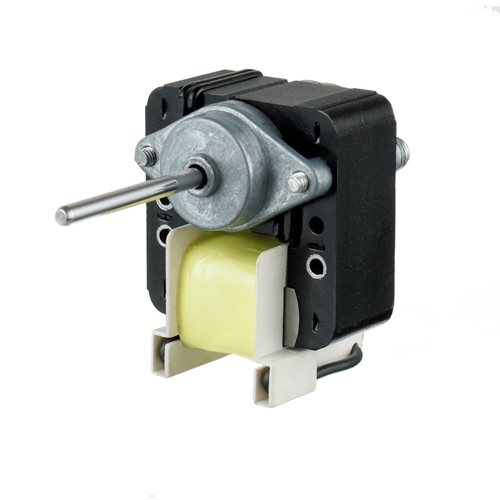

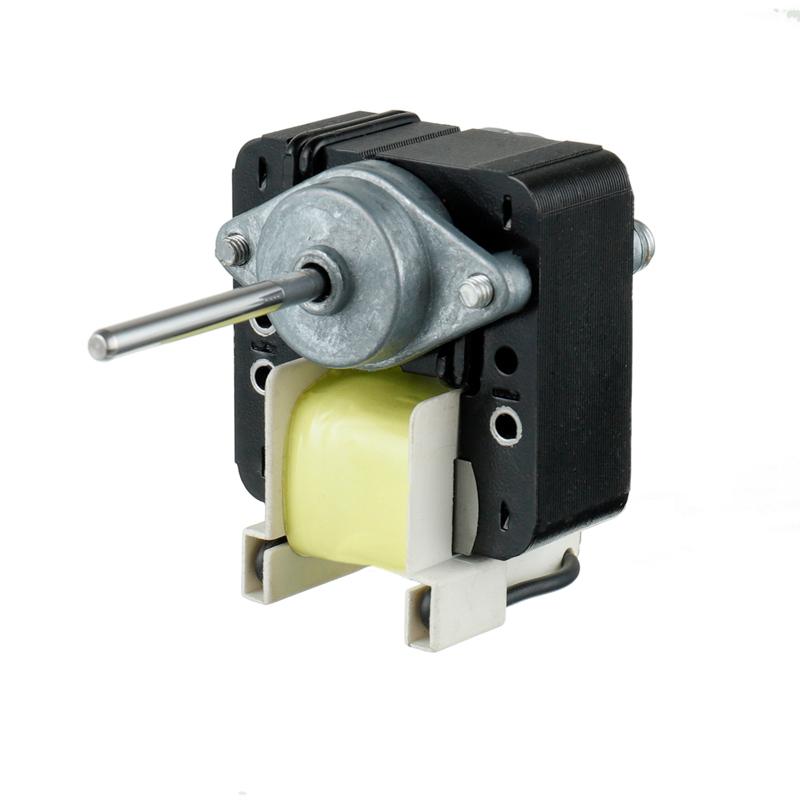

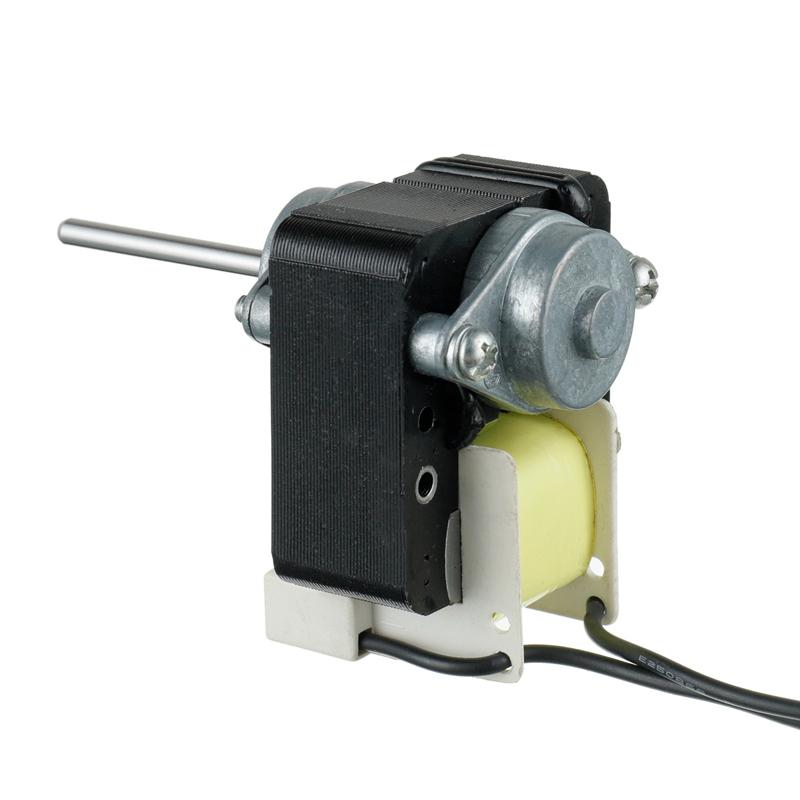

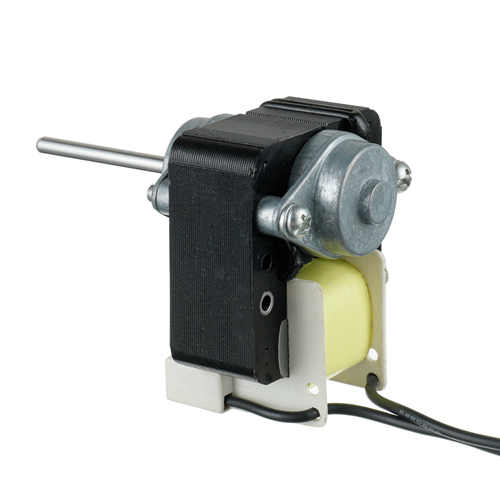

AC Shaded Pole Motor Z4820

General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Used in small devices like fans;
• Efficiency is low due to power loss in the shading coil;
• It produces starting torque that equals to half of the torque on full load;
• Depending on the shaded coil position, the direction of rotation depends;
• Because of the simplicity of these motors, they can be configured to fit most any mounting arrangement.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type	Model	Type	Model

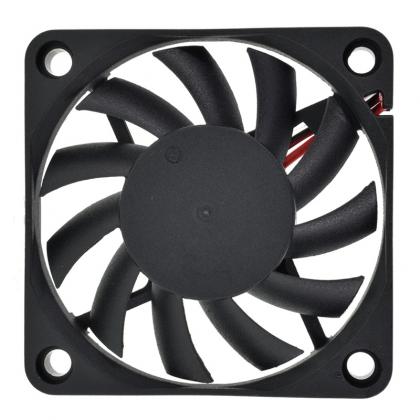

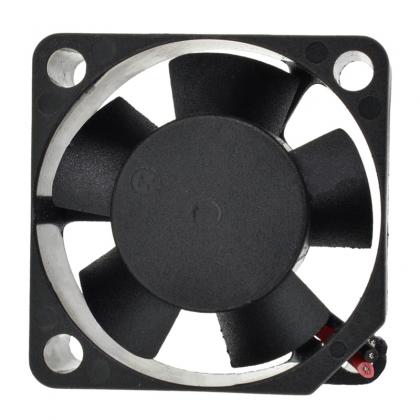

AC Shaded Pole Motor	Z4815	DC Brushless Motor	M25-20
	Z6110		M38-20
	Z6120		M6830
	Z6130
	Z8213
	Z8220

Application

Our motors are used in applications such as forced airflow systems, bathroom and kitchen ventilation fans, appliances (microwaves and convection oven fans, refrigerator evaporative cooler fans, dishwashers, and humidifiers), and portable medical equipment.

• Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
• Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
