AC Shaded Pole Asynchronous Motor for Cooling Fan

This type of AC shaded pole motor is used to drive the devices which require low starting torque.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

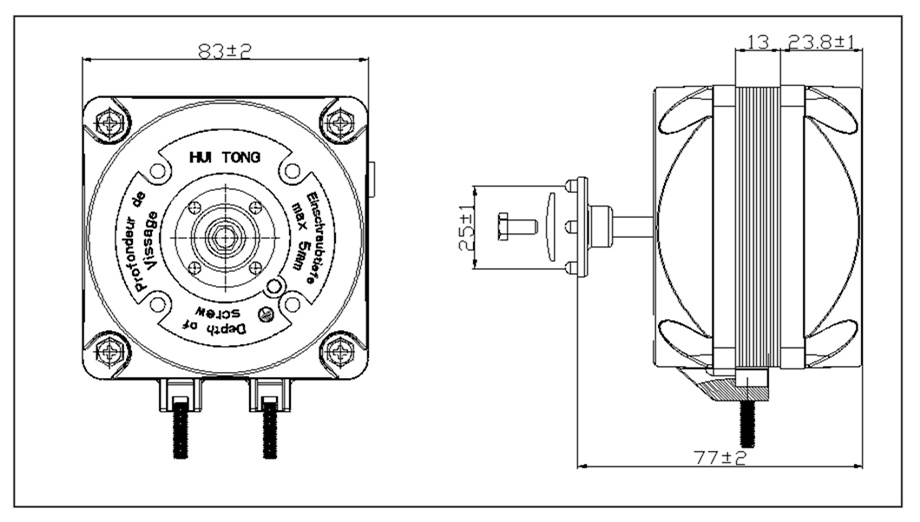

• Dimension of the motor is 82 mm(L) x 13 mm(H) / The size of fan in inch is 3.22 in(L) x 0.51 in(H).

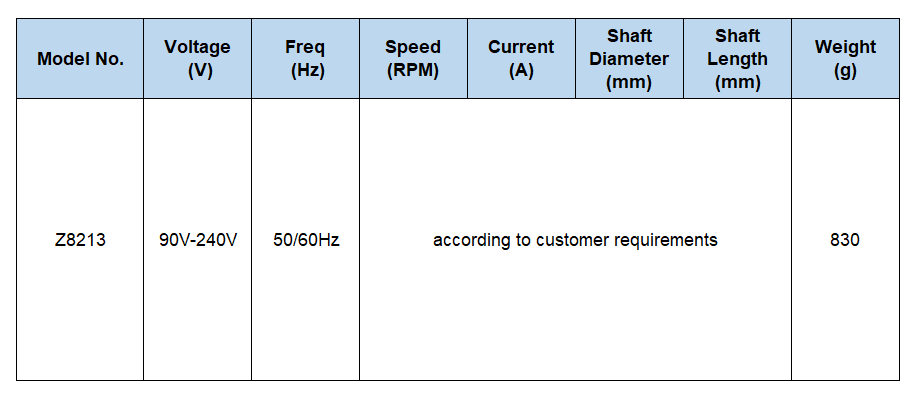

• Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
• Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

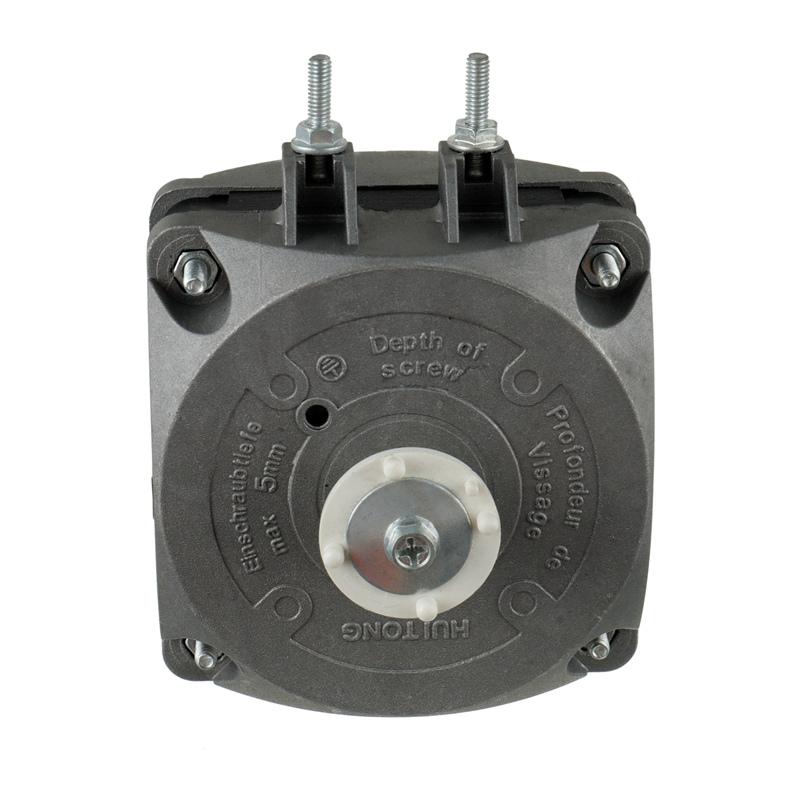

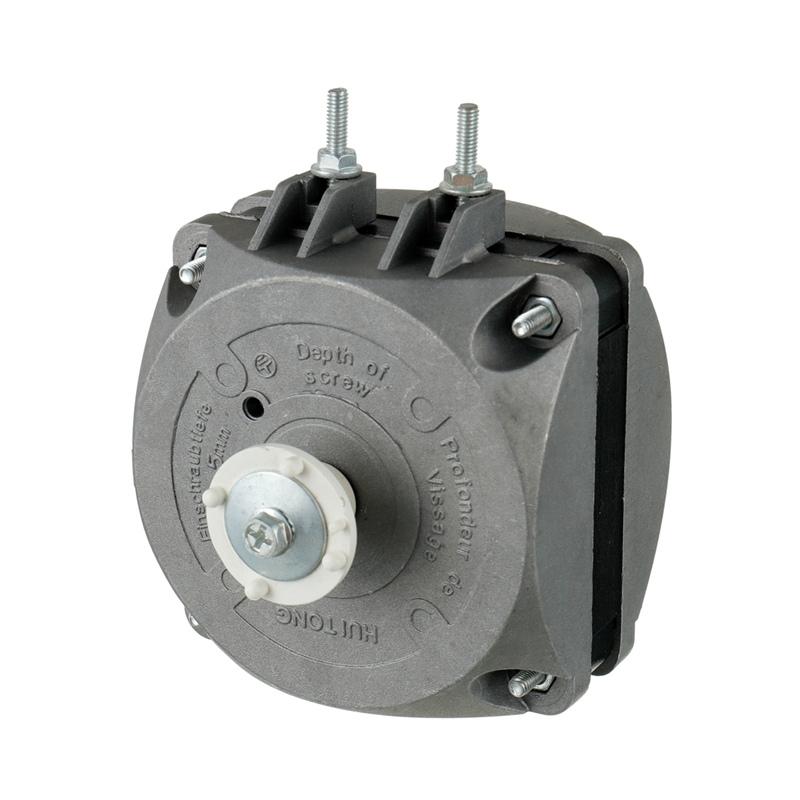

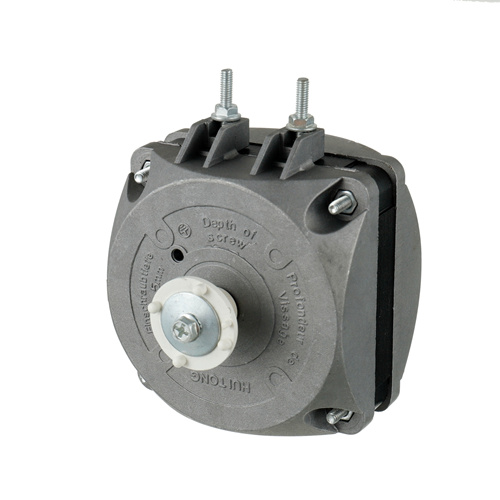

AC Shaded Pole Motor Z8213

General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Parameters can be set according to customer requirements;
• Made of high-quality metal material, is not easy to be deformed;
• Operating temp of  -10℃ ~ +70℃ super high temperature range;
• Due to the compact design, they can easily be accommodated in various devices;
• Compact construction, light weight, high speed, low noise & vibration and easy mounting.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type	Model	Type	Model
AC Shaded Pole Motor	Z4815	DC Brushless Motor	M25-20
	Z6110		M38-20
	Z6120		M6830
	Z6130
	Z8213
	Z8220

Application

The shaded pole motors are most useful in home, offices, business, and many more. These are widely used in fans, cleaners, refrigerators, blowers, washing machines, etc.

• Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
• Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
