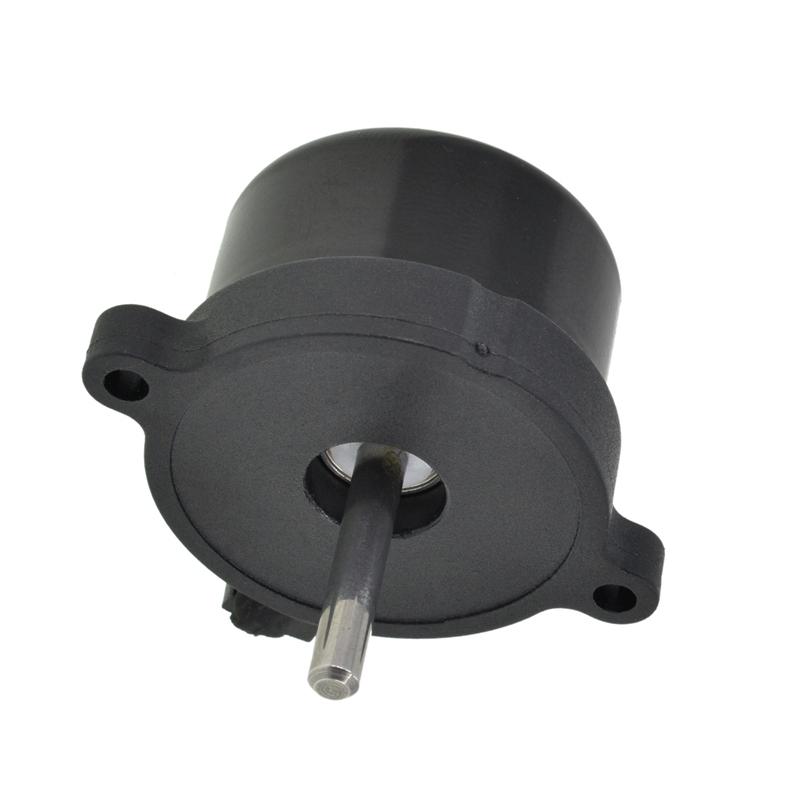

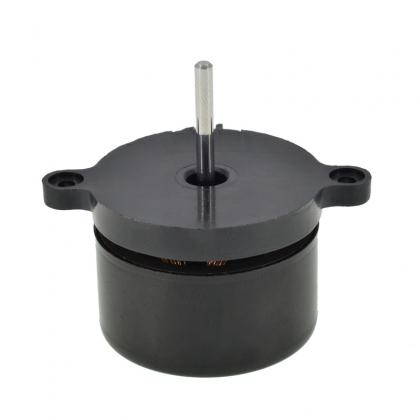

DC Brushless Cross Flow Fan Electric Motor

A low power dc motor with electronic commutation. Also known as commutatorless motor, DC motor without commutator. Compared with other types of motors, brushless motors have a very efficient operation, meaning lower power consumption at the same power output compared with brushed DC motors.

  • Item NO.:

    M25-20
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    50g
  • Product Detail


Brushless Motor, 12V DC Brushless Gear Motor & Brushless Motor with Controller Customizable. The motor is mainly composed of a stator made of permanent magnetic materials, a rotor (armature) wound with coil windings, a commutator and brushes.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

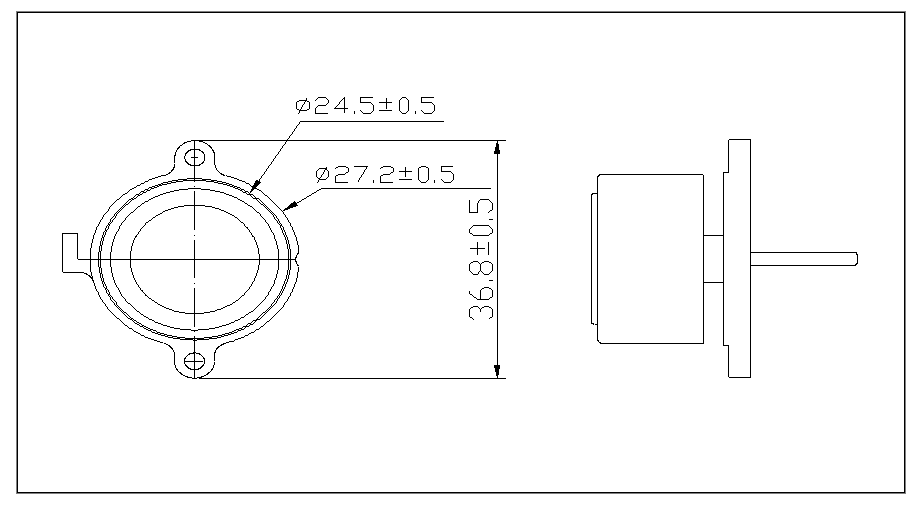

  • Dimension of the motor is 25 mm x 20 mm / The size of fan in inch is 0.98 in x 0.78 in.
  • Operating Voltage Range: DC 5 ~ 24V | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.

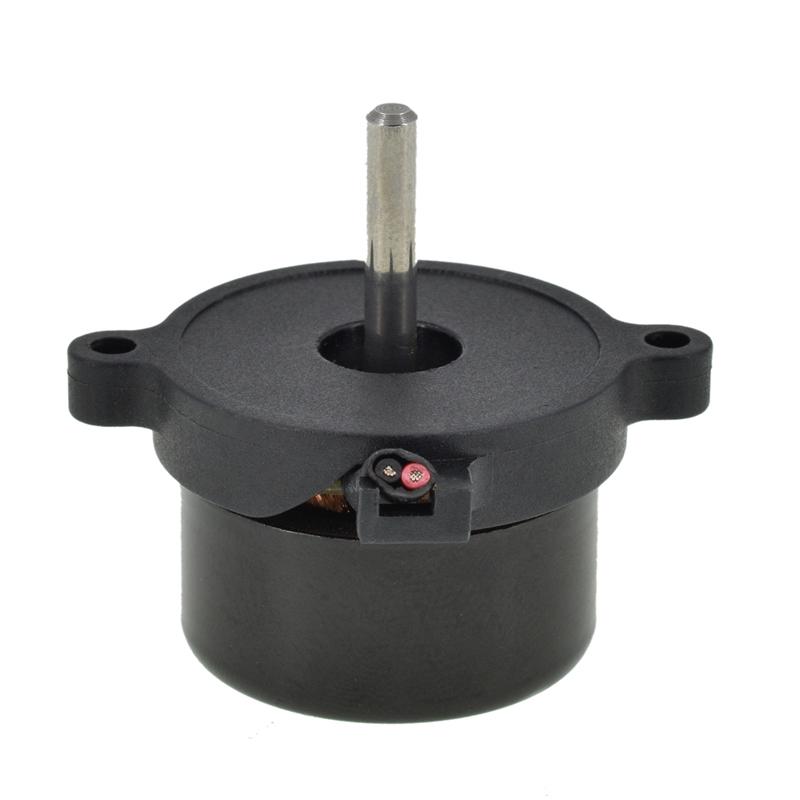

  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

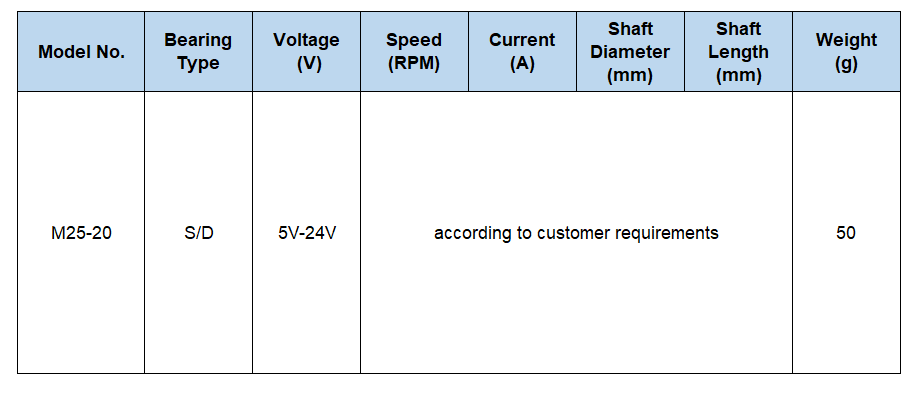

DC Brushless Motor M25-20


    High Torque Ball Bearing Brushless DC Motor     Small Size Low Noise Brushless DC Motor


General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


      Custom Electric Brushless DC Motor

      BLDC Motor with Variabl Speed

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Better torque and speed characteristics can be obtained;
  • Simple structure, reliable operation and convenient maintenance;
  • The Brushless motor has long service life, silence and high efficiency;
  • DC motor has good starting performance, speed regulation performance;
  • Wide application range, low manufacturing cost and high cost performance.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830
Z6130
Z8213
Z8220


Application

This kind of motor has simple structure, reliable operation, no spark and low electromagnetic noise, and is widely used in modern production equipment, instruments and meters, computer peripherals and advanced household appliances.

DC brushless motor customized accept

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

wholesale dc mini brushless motor



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.

Related Products

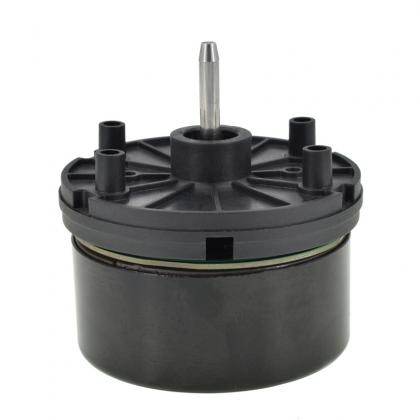

Brushless Cross Flow Cooling System Fan DC Motor brushless dc motor
Brushless DC motor consists of synchronous motor and driver, which is a typical mechatronics product. Brushless motors have much less friction than brushed DC motors so they can operate at much higher speeds.
ReadMore+
Electrical DC Cross Flow Ventilation Fan Motor small electric motor
It replaces the mechanical commutator in general DC motor with semiconductor inverter to form DC motor without commutator.
ReadMore+

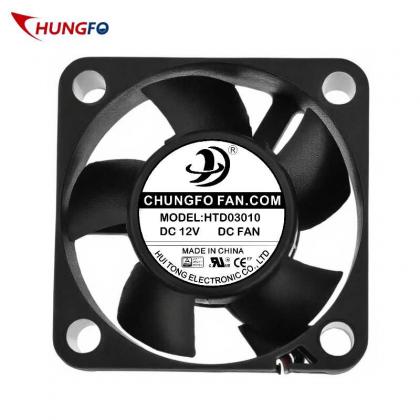

30mm Air Radiator Axial Ventilator Fan with Fg/Rd/PWM quiet exhaust fan
DC axial cooling fan, current is 5V/12V/24V, and other parameters can be customized to meet customer needs. Our products are customized accroding to customer's requirements.
ReadMore+
High Performance Air Cooler Refrigerator Axial Fan 120x120x38mm ac axial cooling fan
Higher airflow / Lower noise: Updated blade and motor designs allow this to put out 74.98 cubic feet per minute with a noise level of 42db.  AC axial cooling fans are widely used in household equipment and ventilation appliances.
ReadMore+
Electric Brushless AC Shaded Pole Fan Asynchronous Motor ac fan motor
The shaded pole motor features stable structure, reliable operation, low noise and no electromagnetic interference.
ReadMore+
90V-240V AC Brushless Shaded Pole Fan Motor shaded pole motor
The motor has the advantages of simple structure, convenient manufacture, low cost, low noise and no radio interference during operation.
ReadMore+

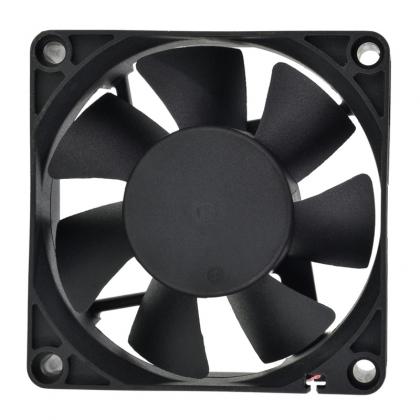

Computer Power Supply Radiator Fan with Energy Saving radiator fans pc
The DC 12V Cooling fan with high performance but low noise, you can use it to cooling you computer, laptop, desktop, also the fan can offer ventilation for wine cabinet. It can be first choice when you need a fan replacment.
ReadMore+

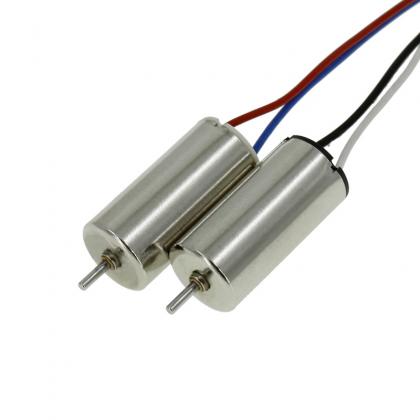

Electric Coreless Brush 7.4V PMDC Micro Spindle Motor 10mm Diameter Brushes DC Motor
