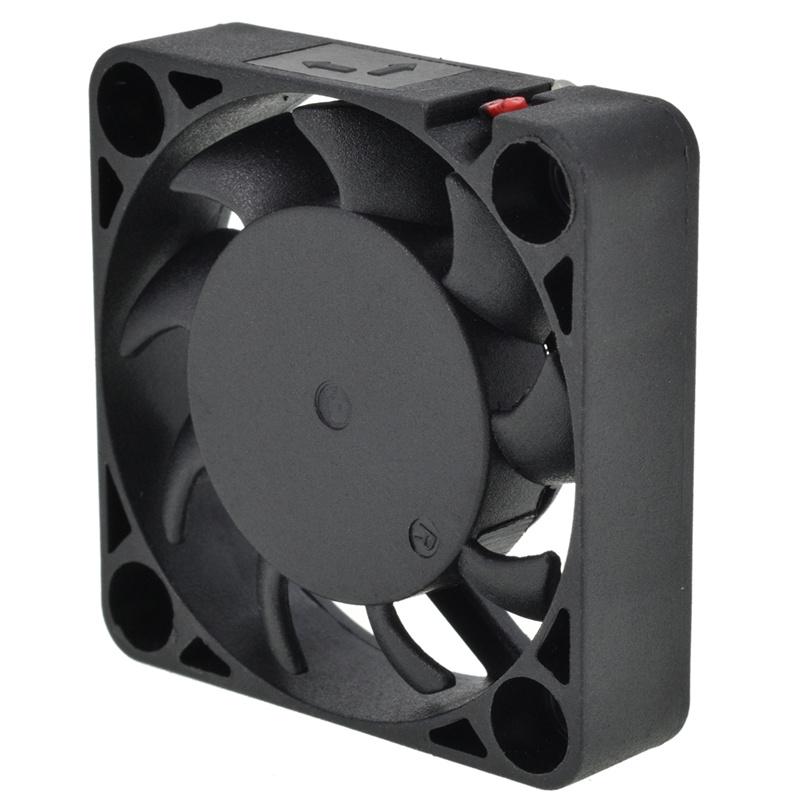

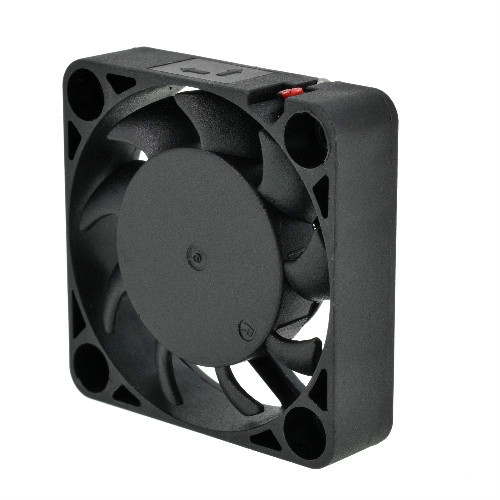

5V/12V/24V Brushless Axial Cooling Fan for Electrical Toys

High Performance 5V 12V 24V DC Brushless Motor, Axial Exhaust Fan for Air Cooler. Long life cycle, low noise, high efficiency, meet the strict test of waterproof and dustproof.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

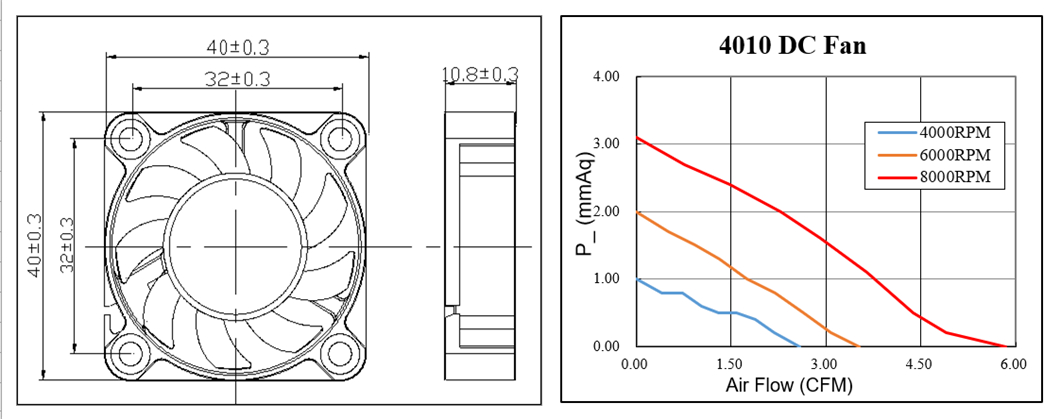

• Dimension of outer the frame is 40 mm(L) x 40 mm(W) x 10 mm(H) / The size of fan in inch is 1.57 in(L) x 1.57 in(W) x 0.39 in(H); The center to center distance beween the mountiong holes is 32.0 ± 0.3 mm / 1.25 in.

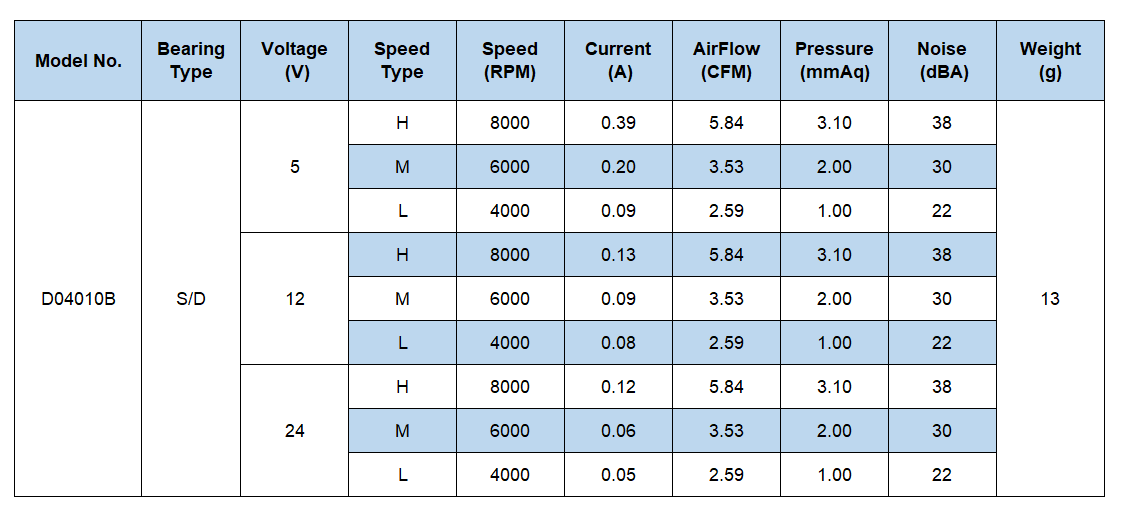

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.05 ~ 0.39 Amp | Speed: 4000 ~ 8000 RPM | Airflow: 2.59 ~ 5.84 CFM | Noise: 22 ~ 38 dBA | Pressure: 1.0 ~ 3.1 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

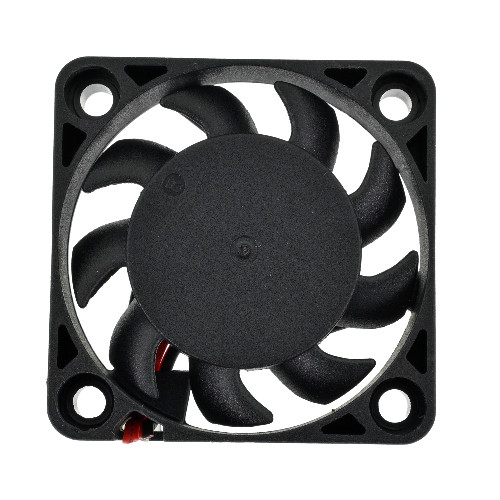

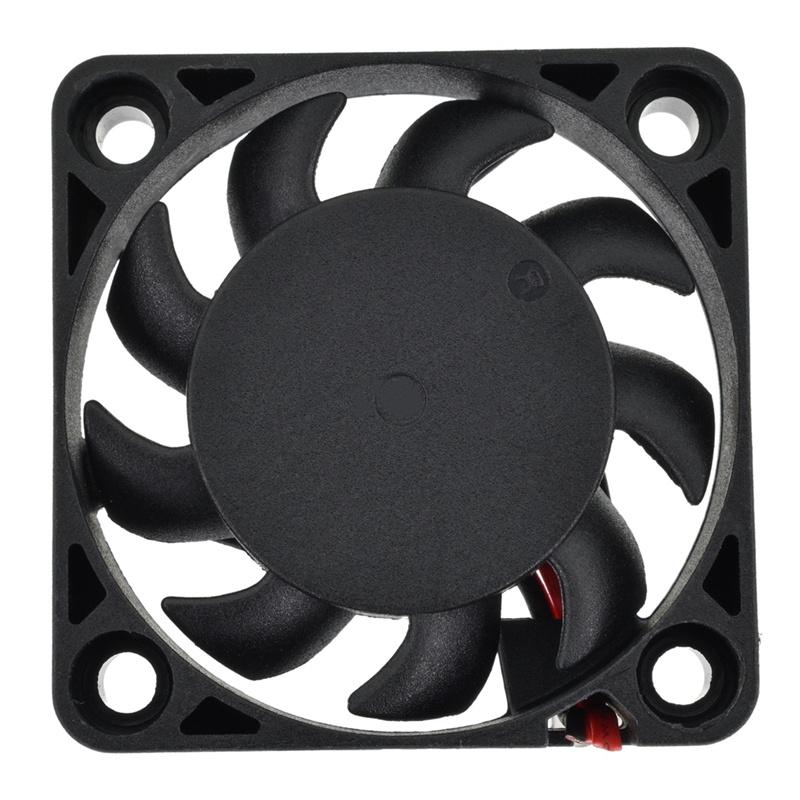

DC AXIAL FAN 40x40x10mm(1.57"x1.57"x0.39")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Typical voltage values for DC fans are 5V, 12V and 24V;
• Stable performance, lower operating noise and long service life;
• It can be applied to ultrasonic cleaning machine and has good waterproof function;
• Compact structure of the axial fans, they can save a lot of space, and are easy to install;
• Superior airflow and pressure, and adopts the compact structure design of sleeve/ball bearing motor;
• With high-efficiency inlet designs, lubricated maintenance-free ball bearings, and vibration-free operation.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

DC axial fans are suitable for various fields, including the air purifiers, PC, electronic equipment and other industries.

Usually it can be installed on the cabinets of electrical equipment, and sometimes it also can be integrated on the motor.

CHUNGFO strives to play an important role as a supplier and is committed to innovation and sustainable success.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
