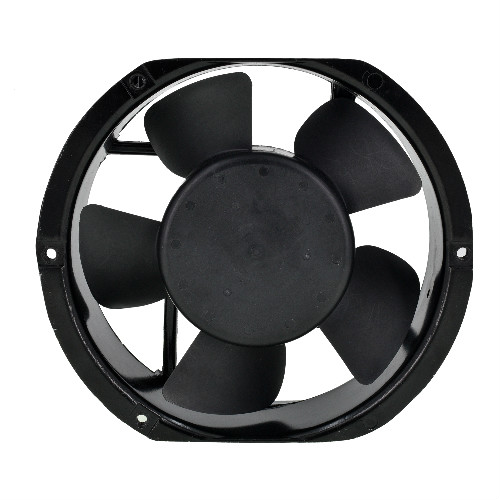

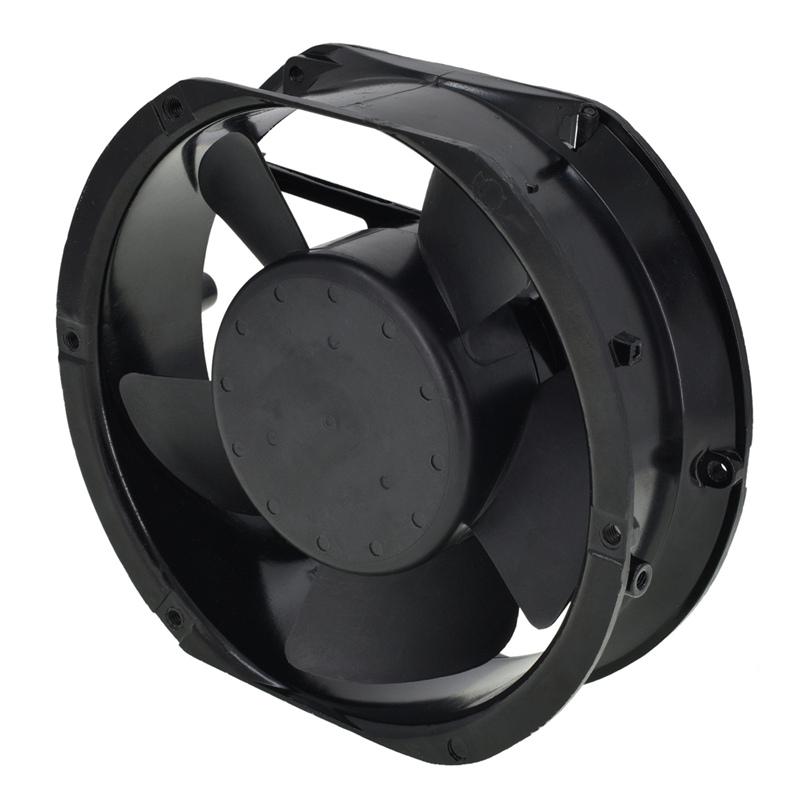

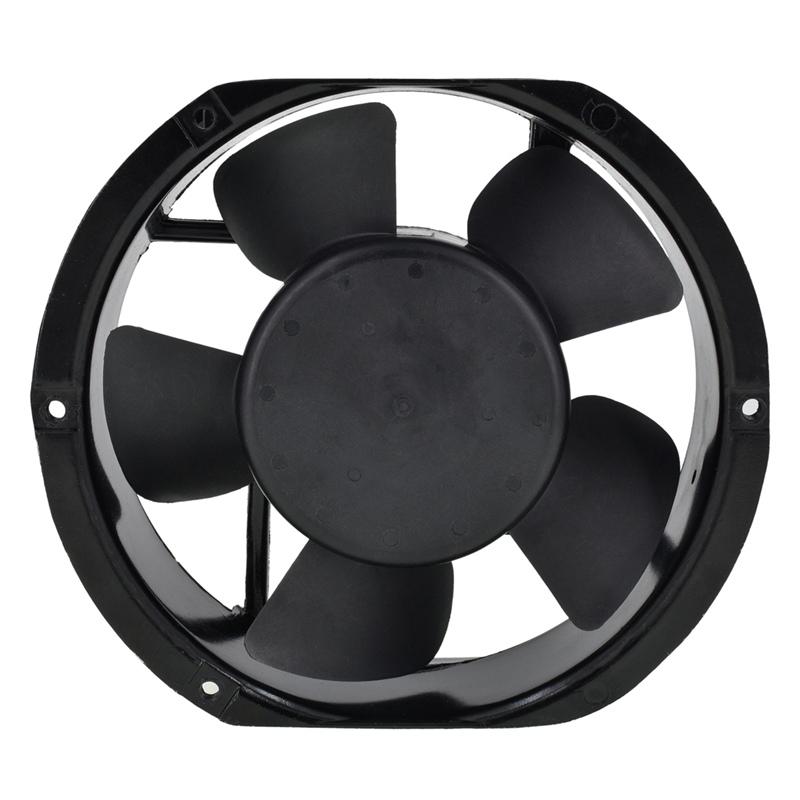

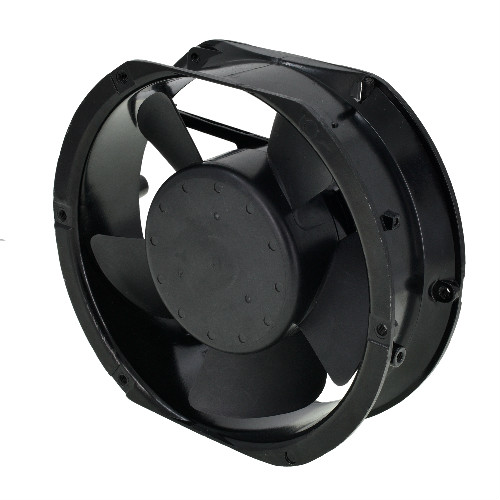

Industrial Brushless Axial Ventilator Exhaust Fan 170X150X51mm

High Quality 220/50Hz Axial Cooling Fan with CE Certificate. 5 blades designed to focus airflow and provide highly efficient ventilation for the fan.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

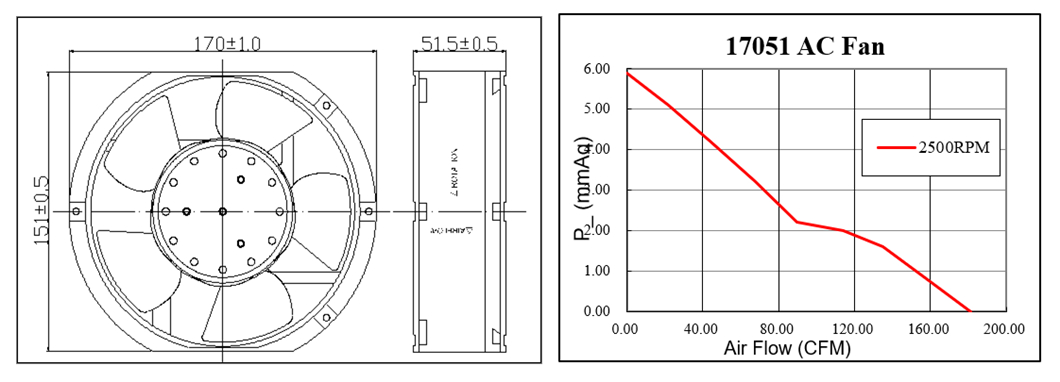

• Dimension of outer the frame is 170 mm(L) x 150 mm(W) x 51 mm(H) / The size of fan in inch is 6.69 in(L) x 5.90 in(W) x 2.0 in(H); The center to center distance beween the mountiong holes is 170.0 ± 1.0 mm / 6.69 in.

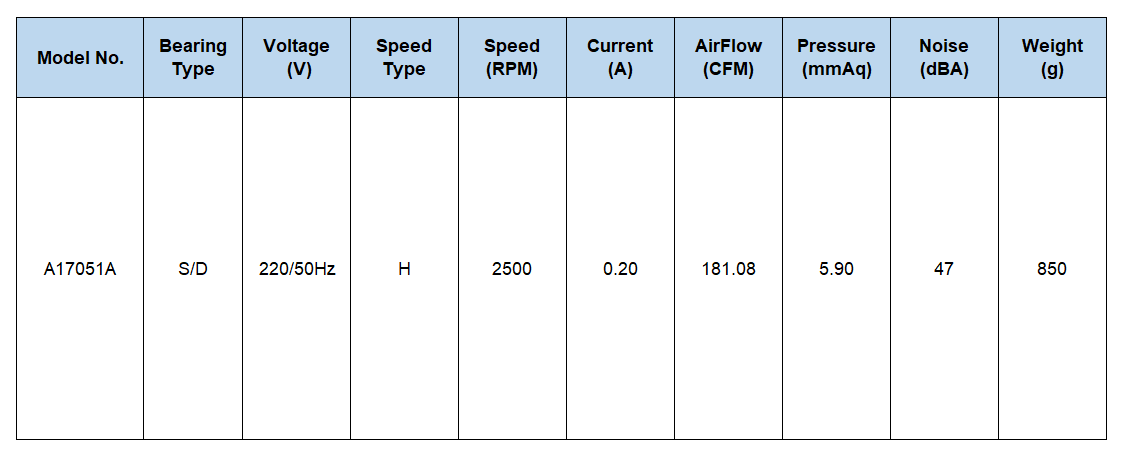

• Operating Voltage Range: AC 220/50Hz | Current: 0.20 Amp | Speed: 2500 RPM | Airflow: 181.08 CFM | Noise: 47 dBA | Pressure: 5.9 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

AC AXIAL FAN 170x150x51mm(6.69"x5.90"x2.0")

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Typical voltage values for AC fans are 220V;
• 170x150x51mm, high performance compact axial fan for cooling;
• Brushless design, lower noise, high speed and long serve life;
• With high-efficiency inlet designs, lubricated maintenance-free ball bearings;
• All our products are approved by UL/CE, as well as in compliance with RoHS requirement.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Application

DC/AC axial fans with many models can be used for cooling, ventilation and heat dissipation in freezers, refrigerators, air purifiers, cabinets, power supply and ect.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
