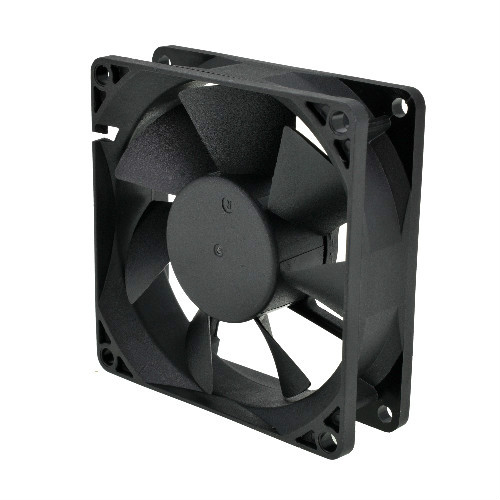

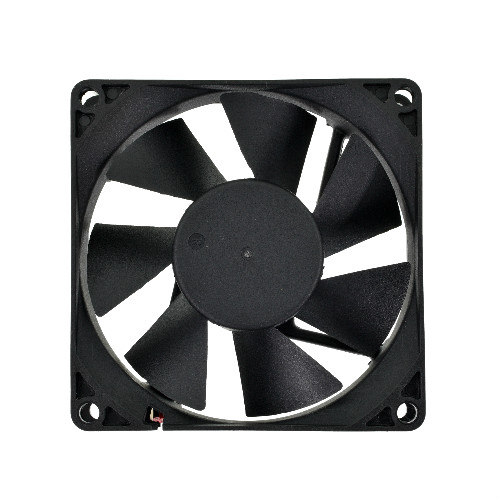

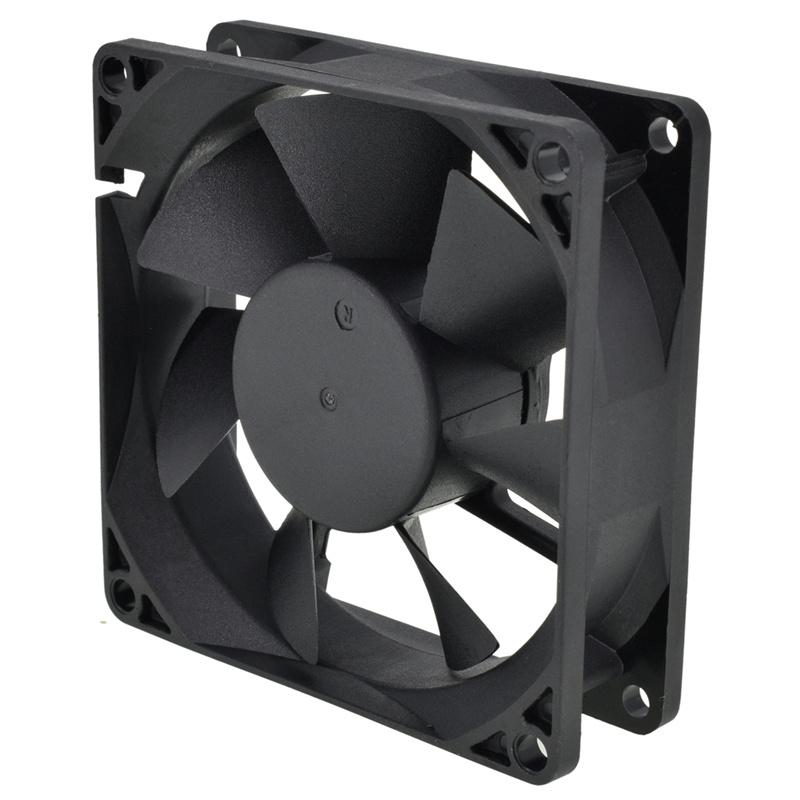

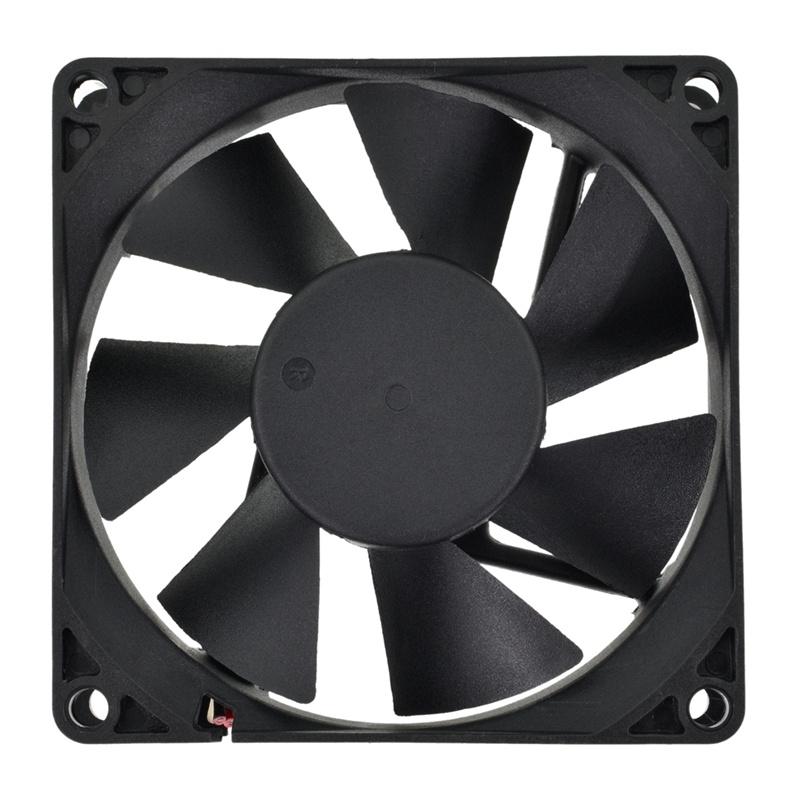

BLDC Sleeve/Ball Bearing PC Cooling Axial Radiator Fan

High Speed 80x80x25mm DC Brushless Fan to optimal noise and airflow levels. Axial flow fan is designed and developed by CHUNGFO for projects requiring cooling or ventilation according to the market demand of cooling fan.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

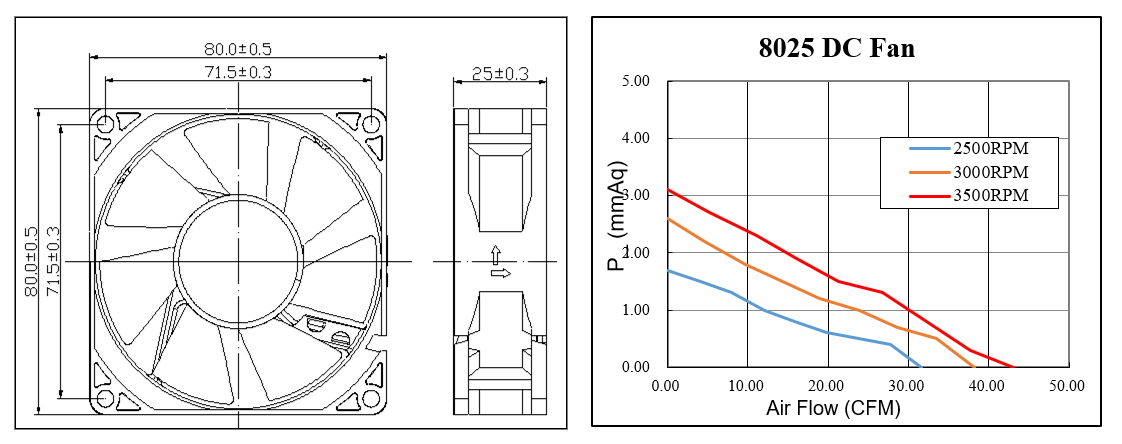

• Dimension of outer the frame is 80 mm(L) x 80 mm(W) x 25 mm(H) / The size of fan in inch is 3.15 in(L) x 3.15 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 71.5 ± 0.3 mm / 2.81 in.

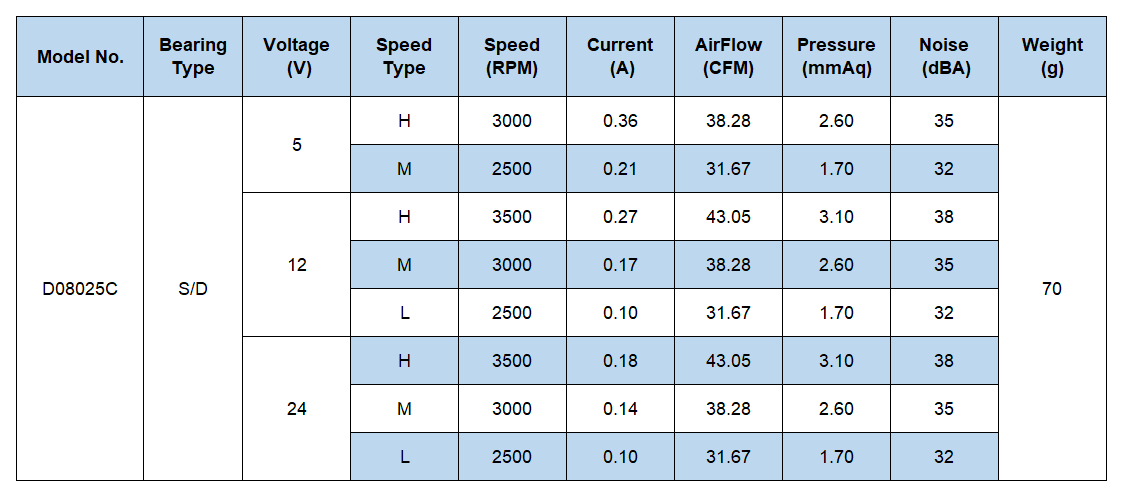

• Operating Voltage Range: DC 5V/12V/24V | Current: 0.10 ~ 0.36 Amp | Speed: 2500 ~ 3500 RPM | Airflow: 31.67 ~ 43.05 CFM | Noise: 32 ~ 38 dBA | Pressure: 1.70 ~ 3.10 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

DC AXIAL FAN 80x80x25mm(3.15"x3.15"x0.98")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Moved more air at less power consumption;
• Parameters can be set according to customer requirements;
• High performance meeting the needs of today's demanding applications;
• DC brushless fan with lightweight motor rotor design and low operating temperature rise;
• Additional features that can be added are Auto Start, Rotation Detector, Tachometer Output, and more.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

DC/AC axial cooling fans are widely used in household equipment and ventilation appliances.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
