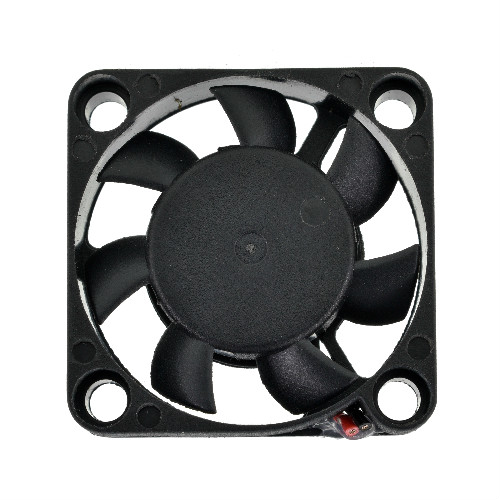

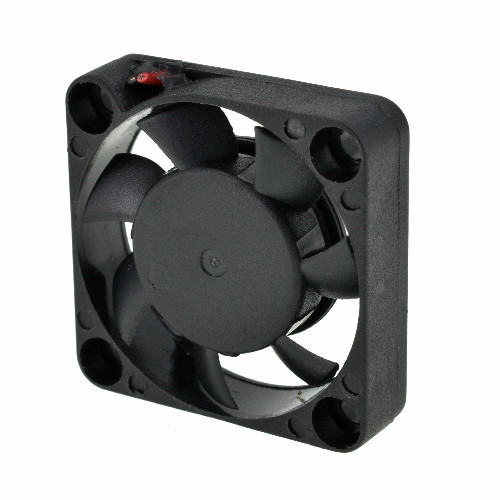

Lower Noise Air Cooler Micro Axial Ventilation Fan

High Quality Cooling Fan, 5V/12V DC 30mm x 7mm High Speed Control, UL-Certified for Cooling Ventilation Exhaust Projects. It can provide systematic products and customized service.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

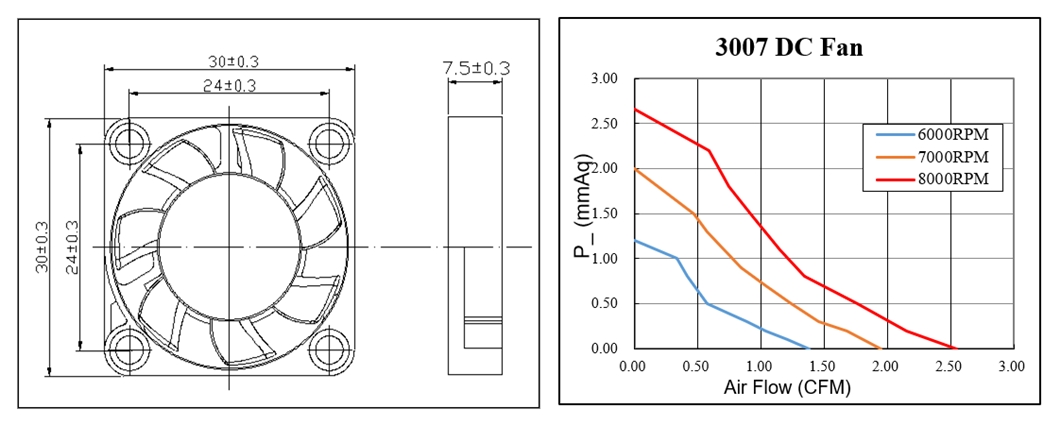

• Dimension of outer the frame is 30 mm(L) x 30 mm(W) x 7 mm(H) / The size of fan in inch is 1.18 in(L) x 1.18 in(W) x 0.27 in(H); The center to center distance beween the mountiong holes is 24.0 ± 0.3 mm / 0.94 in.

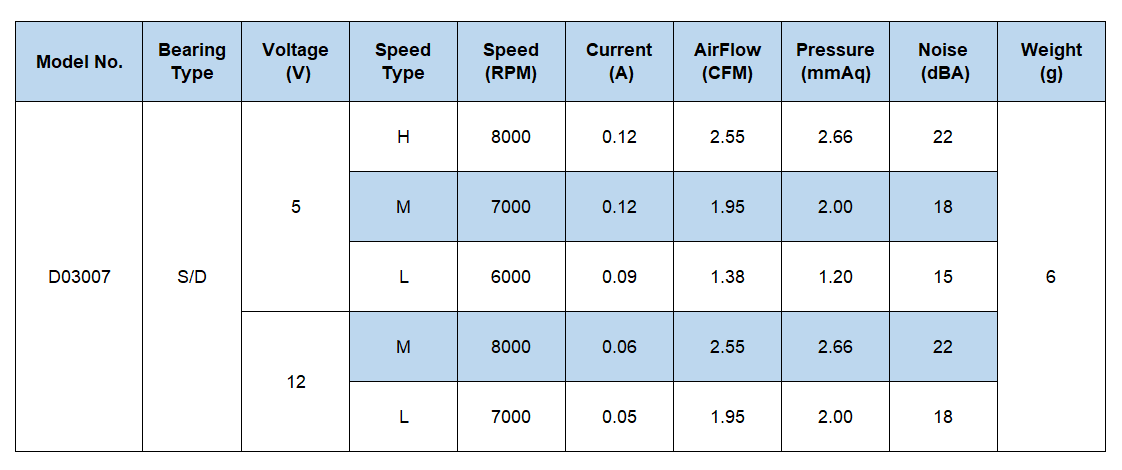

• Operating Voltage Range: DC 5V/12V | Current: 0.05 ~ 0.12 Amp | Speed: 6000 ~ 8000RPM | Airflow: 1.38 ~ 2.55 CFM | Noise: 15 ~ 22 dBA | Pressure: 1.20 ~ 2.66 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

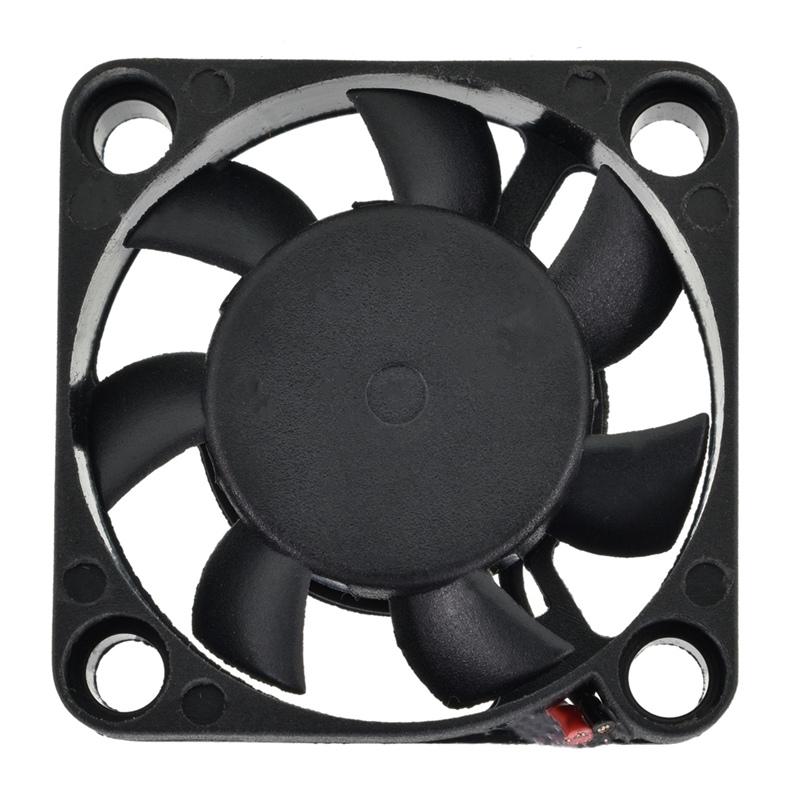

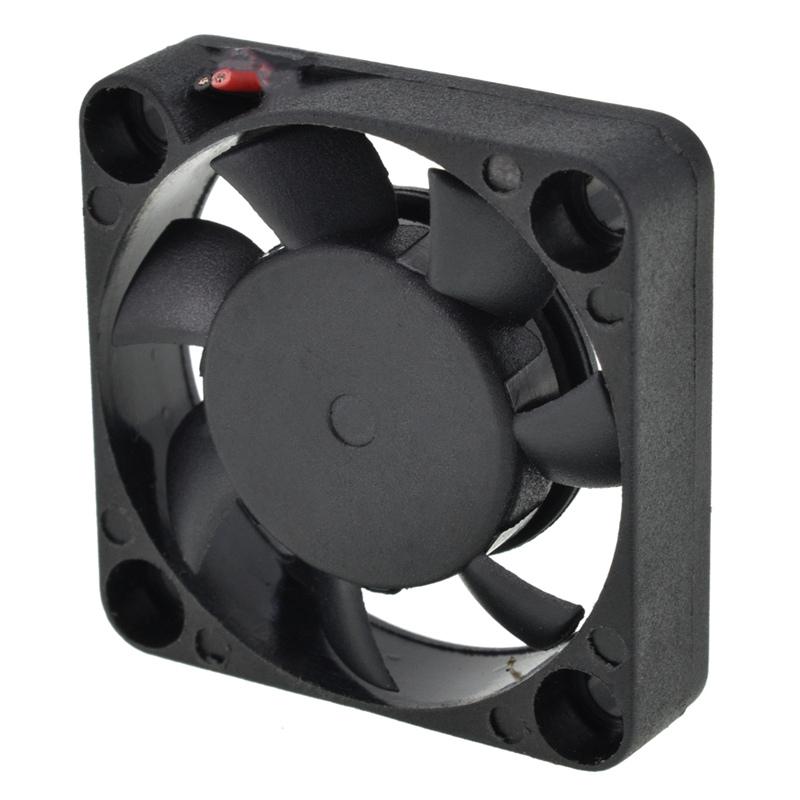

DC AXIAL FAN 30x30x7mm(1.18"x1.18"x0.27")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Small in size, light in weight and easy to install;
• Strict Waterproof & Dustproof Test;
• 7 blades design, improve the air flow performance;
• Features Dual Ball Bearing ,life span up to 67,000 Hrs at 25℃;
• ISO 9001, CE, UL, RoHS and REACH environmental certificated.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Video

Application

DC Axial Fans, due to the compact structure of the axial fans, they can save a lot of space, and are easy to install and widely used.

Our products can be used to solve the cooling and ventilation problems of electronic products, computer cases and household appliances during operation.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems,computers, and other electronics running at their ideal temperature and optimal speed.

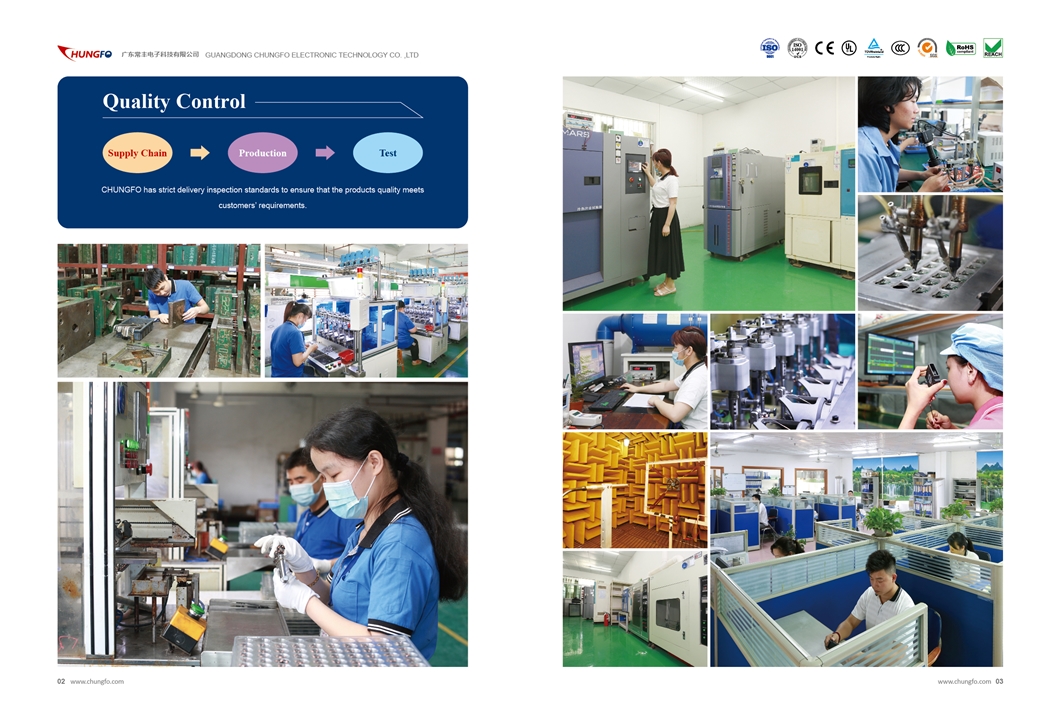

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
