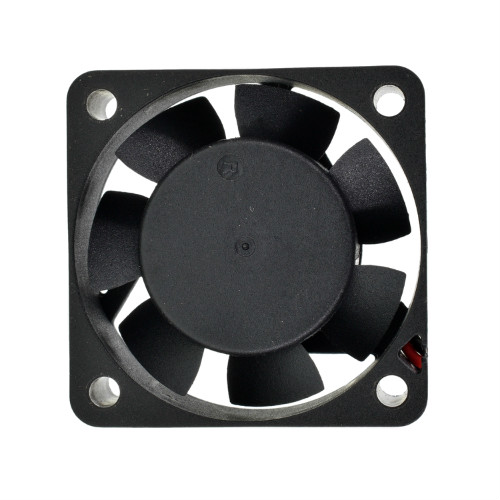

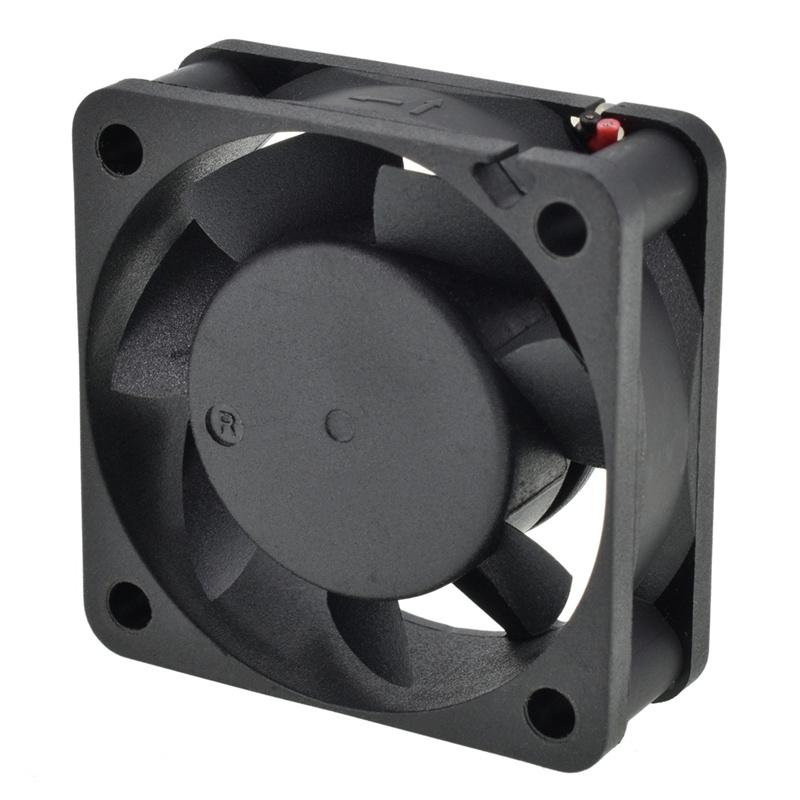

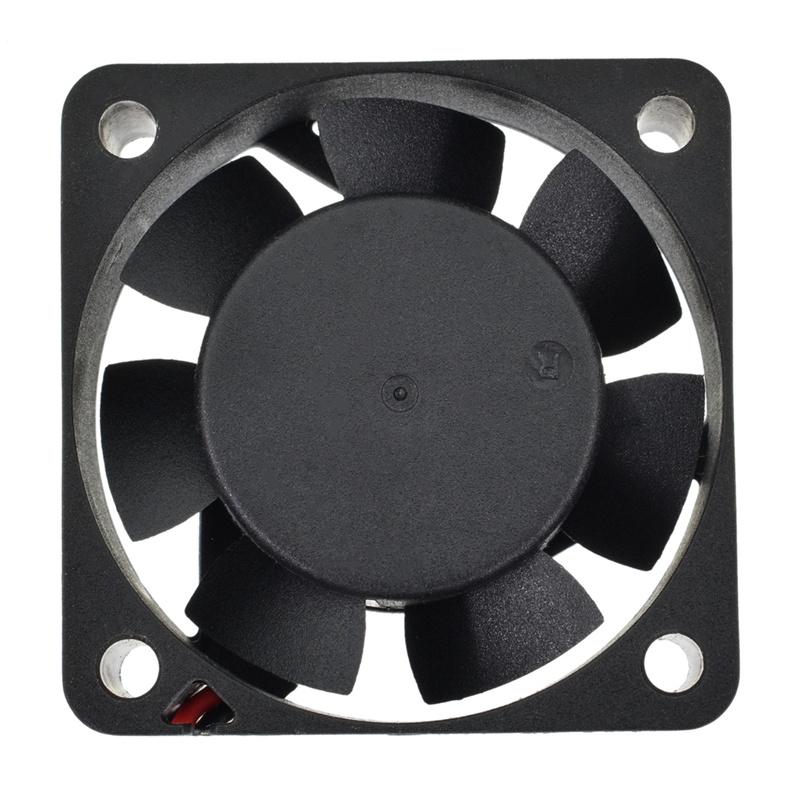

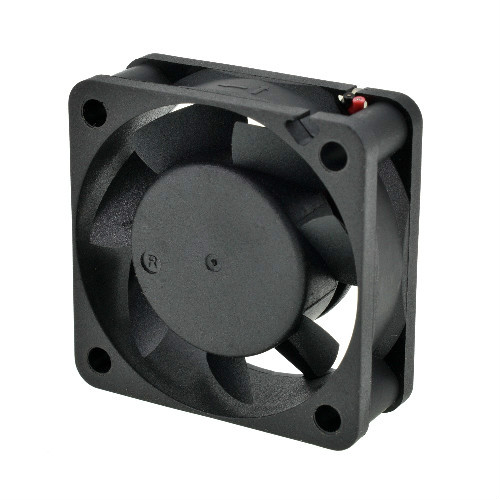

Electric Air Cooling System Fan with Auto Restart

Plastic Fan Blades 5V 12V 24V, High Efficiency Axial Cooling Fan. The fan is smaller, lightweight, have low power consumption, and reduce heat generation. It can customize bearing system and function signals (FG speed measurement signal, RD alarm signal, pwm speed regulation signal, temperature control signal and waterproof function).

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

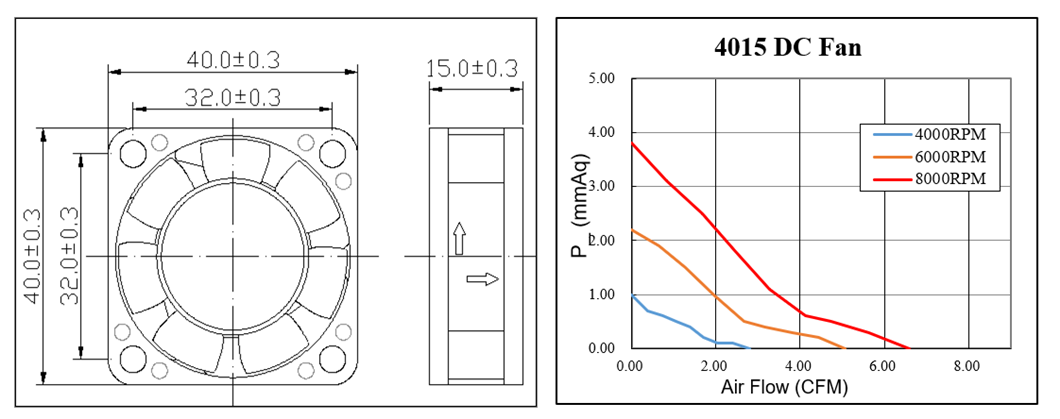

• Dimension of outer the frame is 40 mm(L) x 40 mm(W) x 15 mm(H) / The size of fan in inch is 1.57 in(L) x 1.57 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 32.0 ± 0.3 mm / 1.25 in.

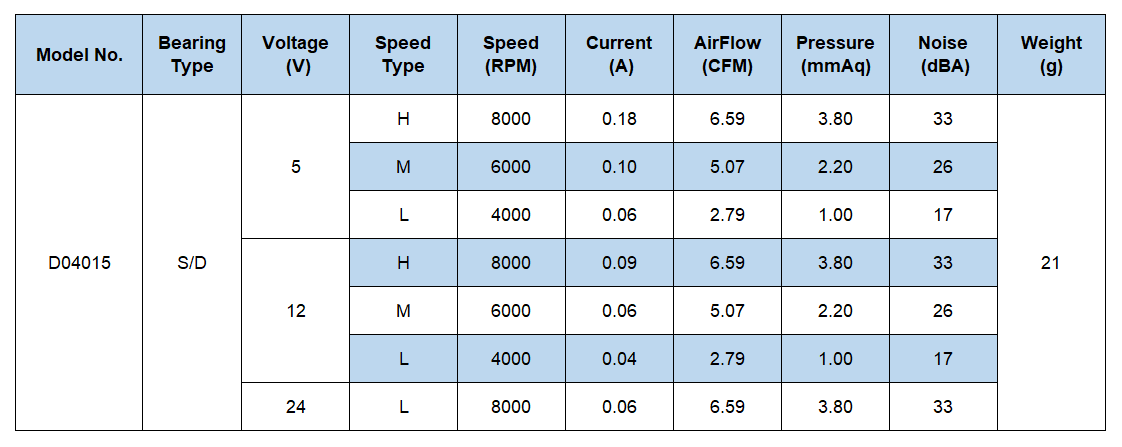

• Operating Voltage Range: DC 5V/12V/24 |Current: 0.04 ~ 0.18 Amp | Speed: 4000 ~ 8000 RPM | Airflow: 2.79 ~ 6.59 CFM | Noise: 17 ~ 33 dBA | Pressure: 1.0 ~ 3.8 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

DC AXIAL FAN 40x40x15mm(1.57"x1.57"x0.59")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• The square fan frame and 7 blades provide highly efficient ventilation for the fan;
• Ball and sleeve bearing system allows the fan to be laid flat or stand upright;
• Excellent performance and impeccable quality for dc cooling;
• 5V/12V/24V brushless ventilation fans, they are available to customers in various voltages;
• Providing efficient parallel airflow to the cooled unit, lower noise, and reduced vibration.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Video

Application

DC/AC fans are widely used. It can be applied to equipment ventilation, portable cooling fans, heat exchangers, refrigeration coils, solarium equipment, electronic enclosures, condenser or evaporator cooling, heating cooling and ventilating applications.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

Our axial fan adopts excellent bearings, silicon steel sheets and enameled wires, which have higher reliability.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
