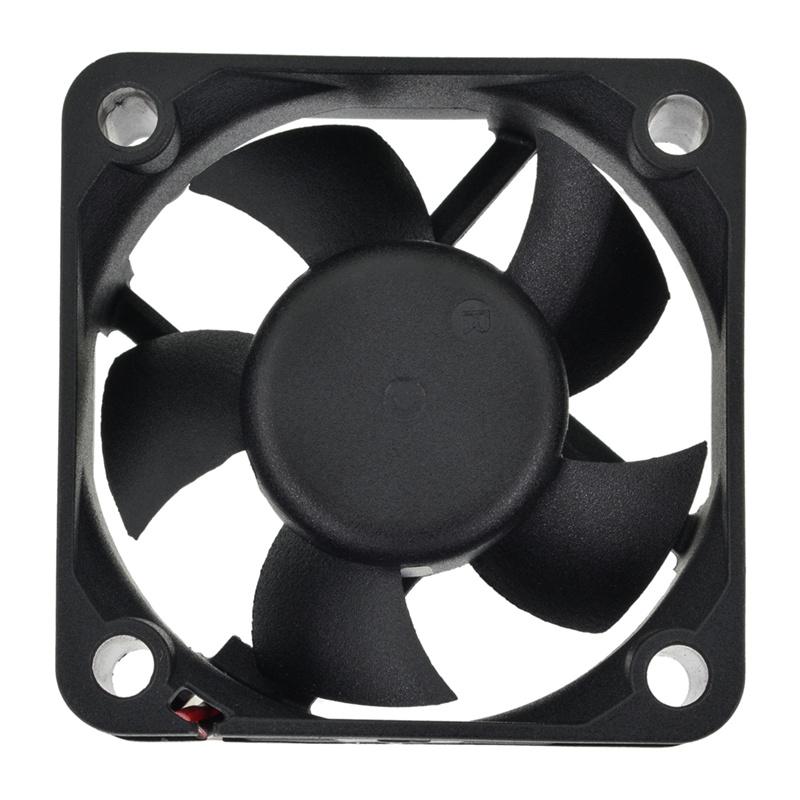

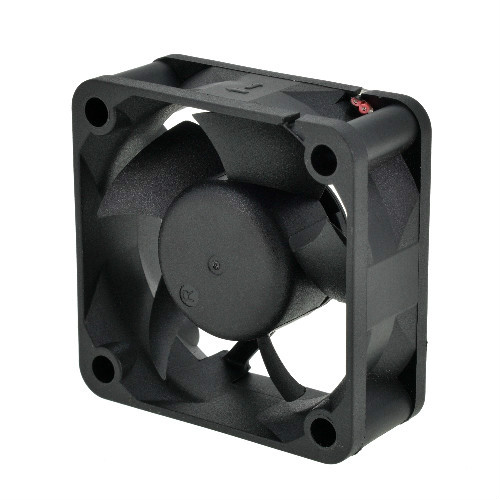

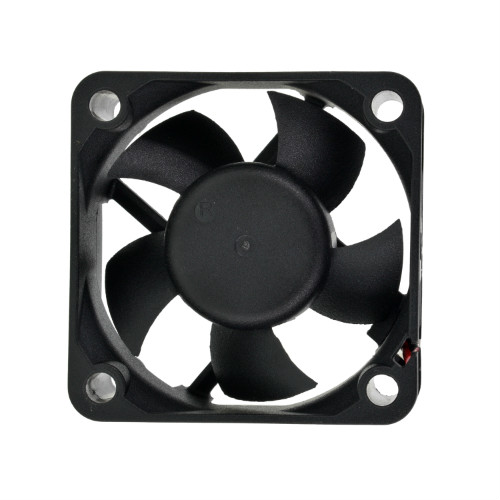

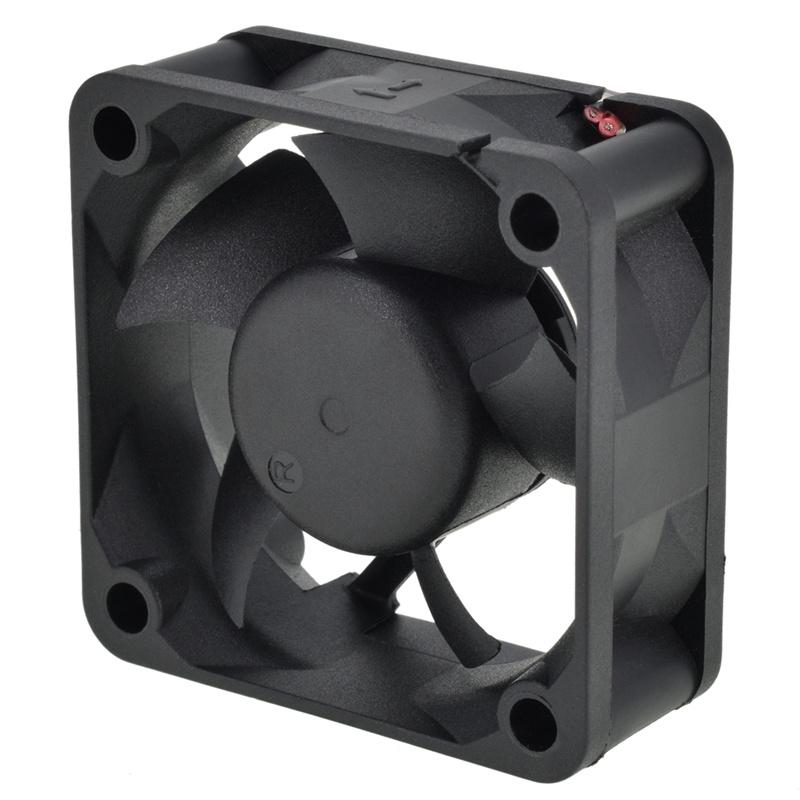

Square Housing Air Cooling 5V/12V/24V Axial Radiator Fan

High Speed 6000RPM 50mm x 50mm x 25mm 2 inch Big Airflow High Performance Dual Ball Bearing Brushless DC Cooling Fan. It can be first choice when you need a fan replacment.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 50 mm(L) x 50 mm(W) x 20 mm(H) / The size of fan in inch is 1.96 in(L) x 1.96 in(W) x 0.78 in(H); The center to center distance beween the mountiong holes is 40.0 ± 0.3 mm / 1.57 in.

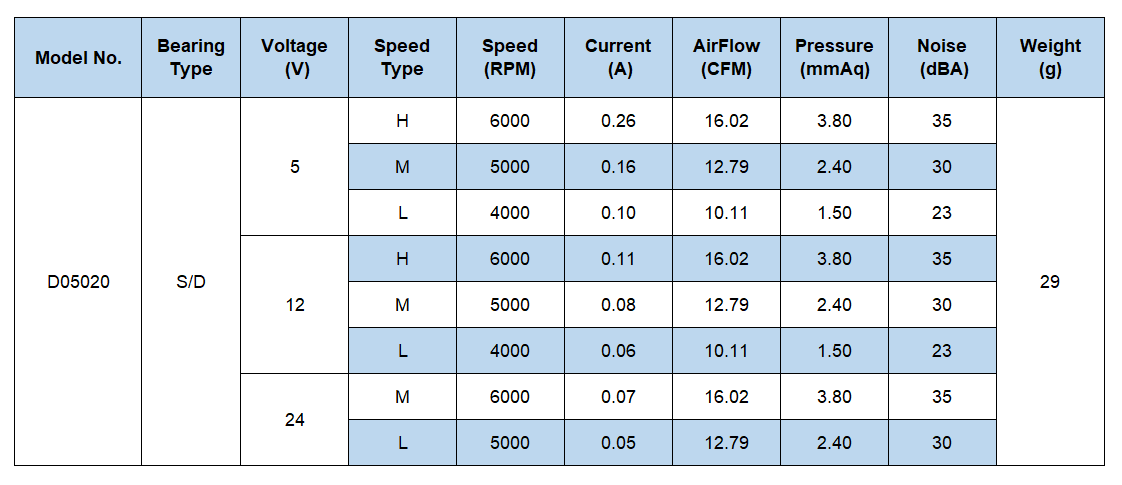

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.05 ~ 0.26 Amp | Speed: 4000 ~ 6000 RPM | Airflow: 10.11 ~ 16.02 CFM | Noise: 23 ~ 35 dBA | Pressure: 1.50 ~ 3.80 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

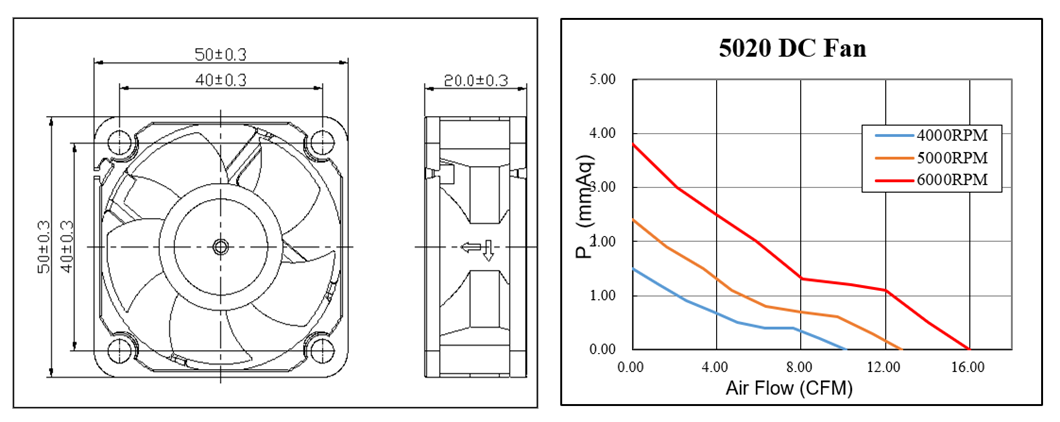

DC AXIAL FAN 50x50x20mm(1.96"x1.96"x0.78")

General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Small size, quick installing, easy to use and maintain;
• PBT Frame and Blades, not easy to deform and break, long service life;
• A wide operation temperature ranged from -10℃ to +70℃;
• High-precision double ball bearings make this chassis cooling fan more convenient to use;
• Designed for projects that requires cooling & ventilation or as a replacement fan for various products.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

CHUNGFO fan based on the cooling fan market demand and is applicable to cool computer power supply, cabinet ventilation, automatic equipment, industrial machinery and so on.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
