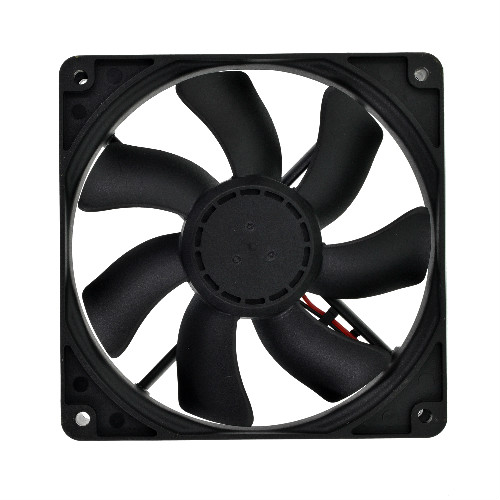

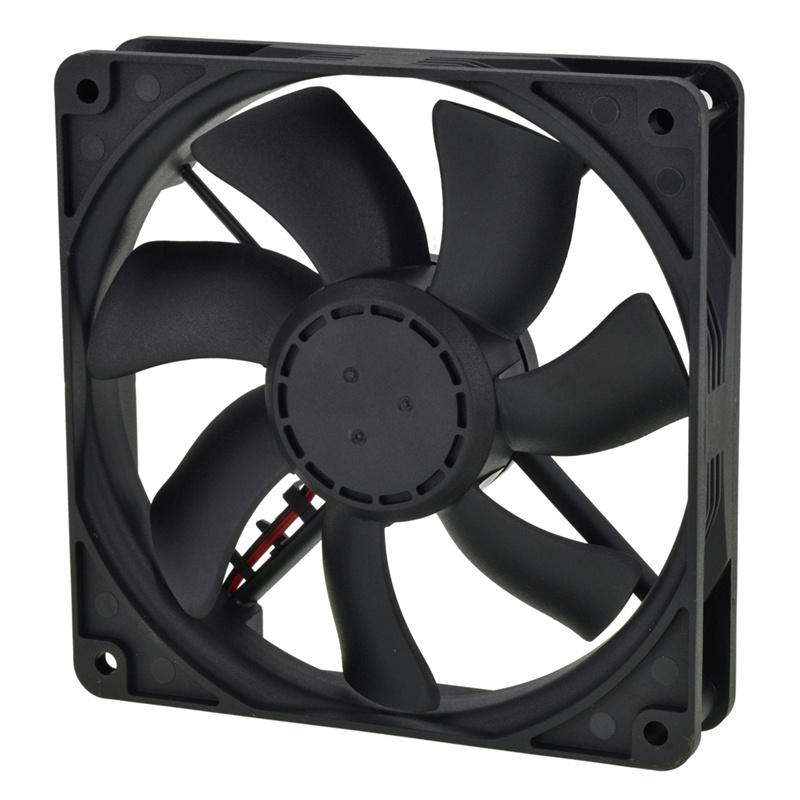

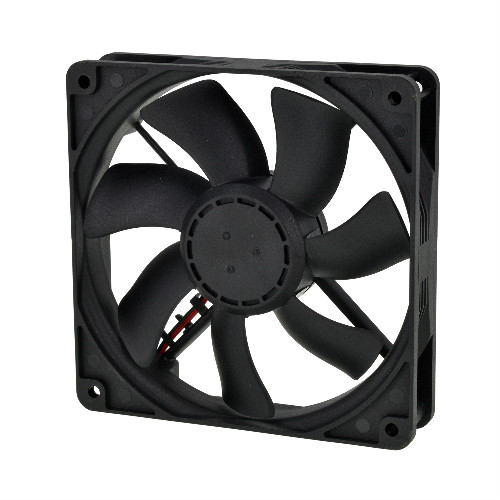

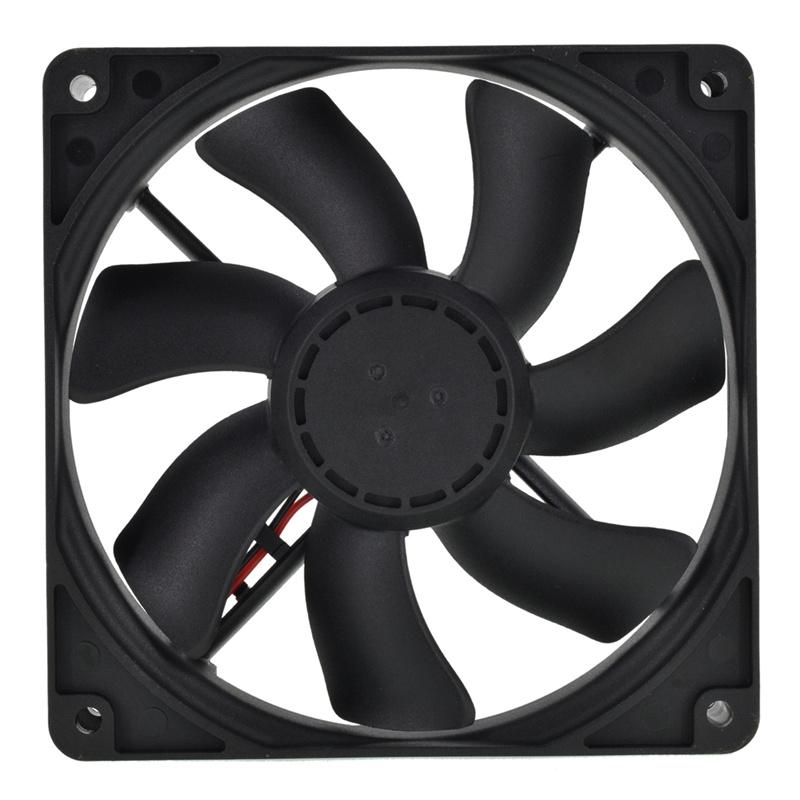

DC Brushless Axial Freezer Cooling Exhaust Fan 120x120x25mm

5V 12V 24V DC Powered Fan with Speed Control, for Receiver Amplifier, Component Cooling and Freezer. Large air Valume Adopting high precision double ball bearings, life expectancy at up to 50,000hrs at 25℃ .

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

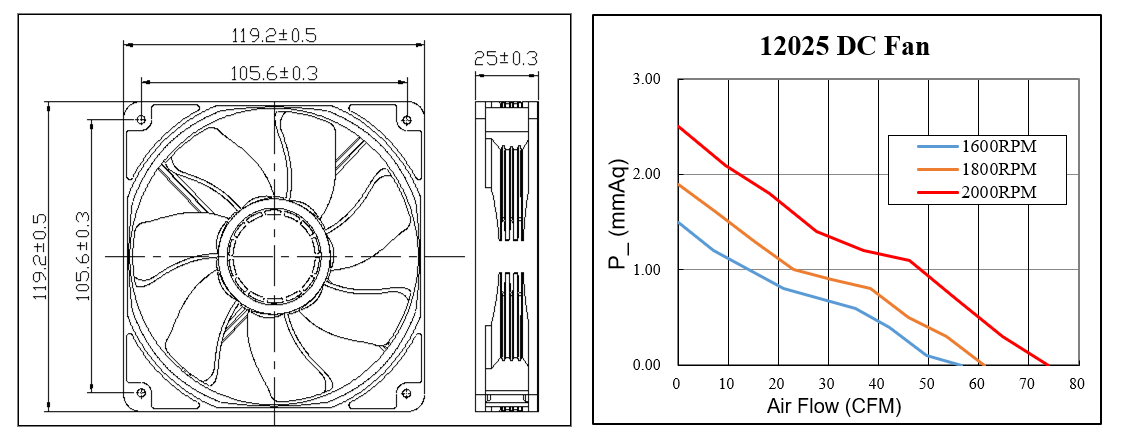

• Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 25 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.3 mm / 4.13 in.

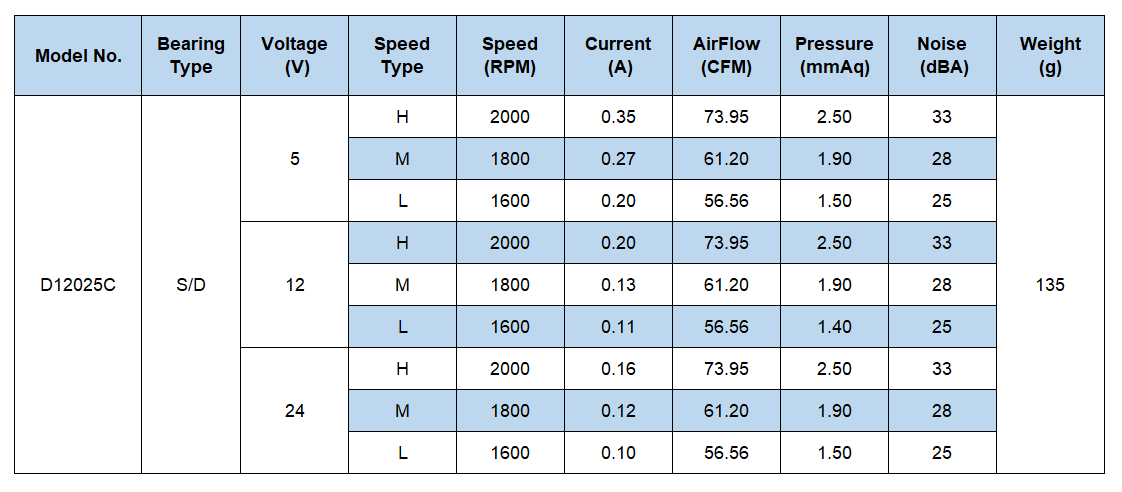

• Operating Voltage Range: DC 5V/12V/24V | Current: 0.10 ~ 0.35 Amp | Speed: 1600 ~ 2000 RPM | Airflow: 56.56 ~ 73.95 CFM | Noise: 25 ~ 33 dBA | Pressure: 1.50 ~ 2.50 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

DC AXIAL FAN 120x120x25mm(4.72"x4.72"x0.98")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• 120mm x 120mm x 25mm big size offer super ariflow 73.95 CFM;
• Parameters can be set according to customer requirements;
• Standard square axial fans are used to cool freezer & refrigeration equipment;
• Double ball bearings rated at 67,000 hours allows the fans to be laid flat or stand upright;
• Engineered for optimum performance, they have a long service life and excellent energy efficiency.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

Our products are used in applications of Heating ,ventilation , and air conditioning ,home appliances , and water purifier and many other industries.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
