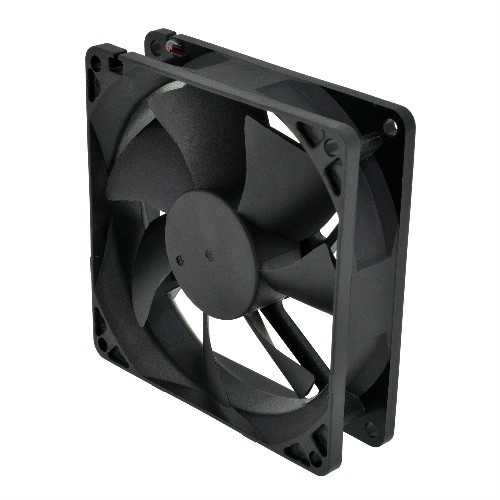

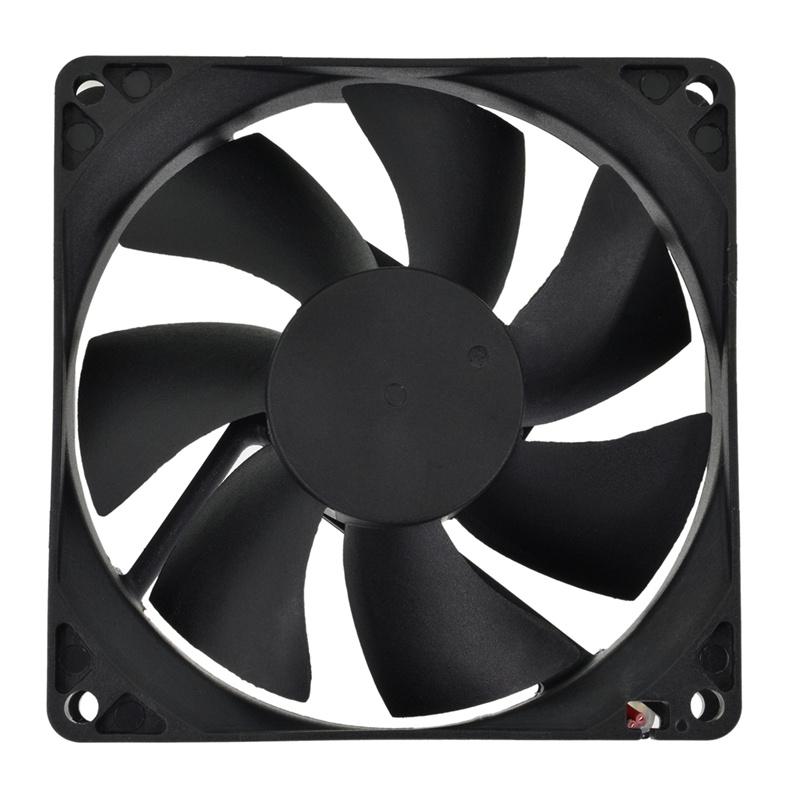

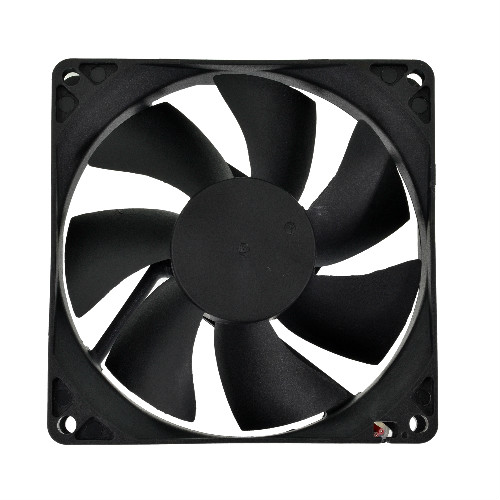

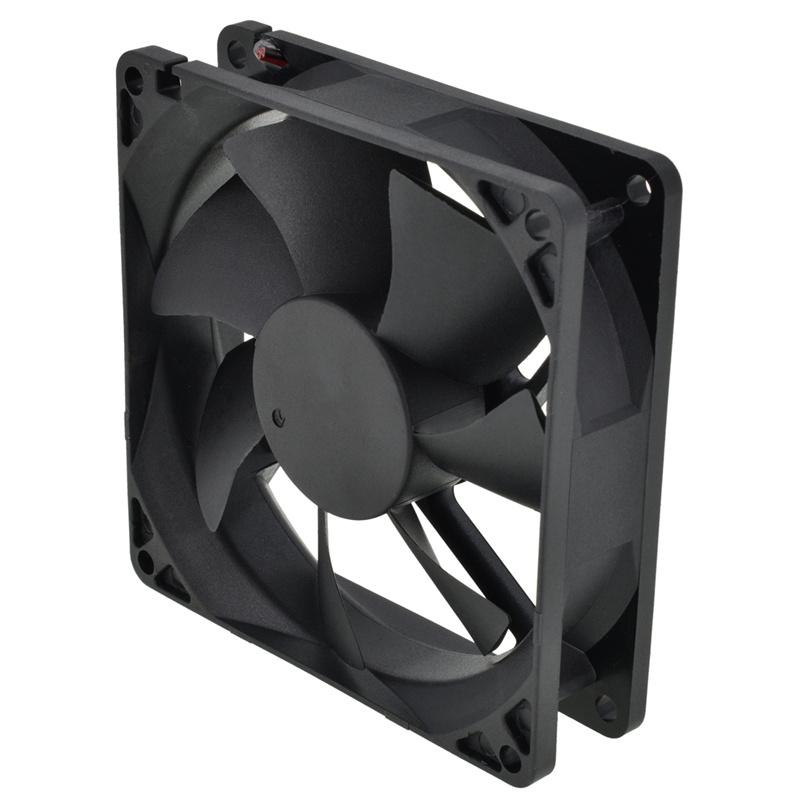

92*92*25mm DC Brushless Cabinet Ventilation Axial Cooling Fan

DC Brushless Cooling Fan,  92x92x25MM 5V/12V/24V DC Axial Fan  for Computer Case, and Other Small Appliances. The life expectancy of double ball bearings is greater than 50,000 hours.

Our advantage

We have our own production workshops, which are divided into AC workshop, DC workshop, injection molding workshop and SMT workshop, and are equipped with the most advanced production equipment and tools to ensure the precise manufacturing and high quality of products.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

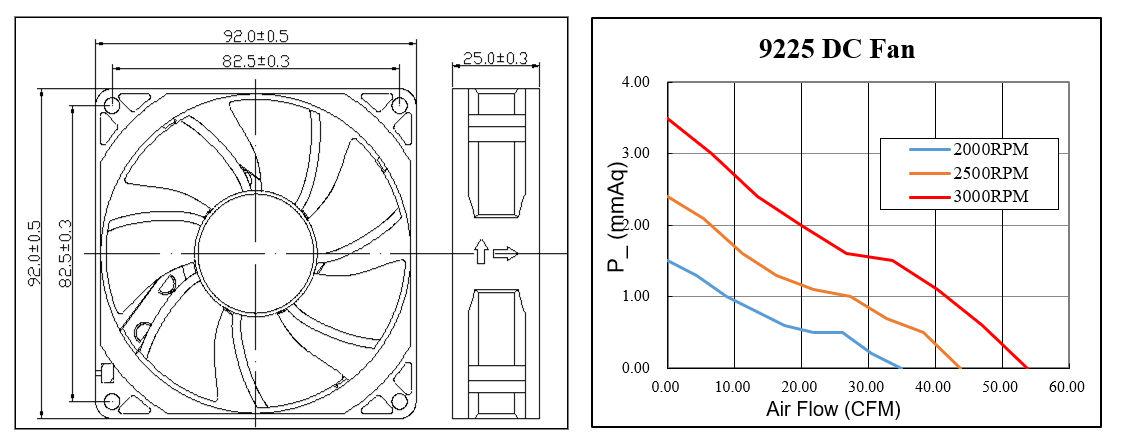

• Dimension of outer the frame is 92 mm(L) x 92 mm(W) x 25 mm(H) / The size of fan in inch is 3.62 in(L) x 3.62 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 82.5 ± 0.3 mm / 3.24 in.
• Operating Voltage Range: DC 5V/12V/24V | Current: 0.08 ~ 0.28 Amp | Speed: 2000 ~ 3000 RPM | Airflow: 34.93 ~ 53.85 CFM | Noise: 29 ~ 40 dBA | Pressure: 1.50 ~ 3.50 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

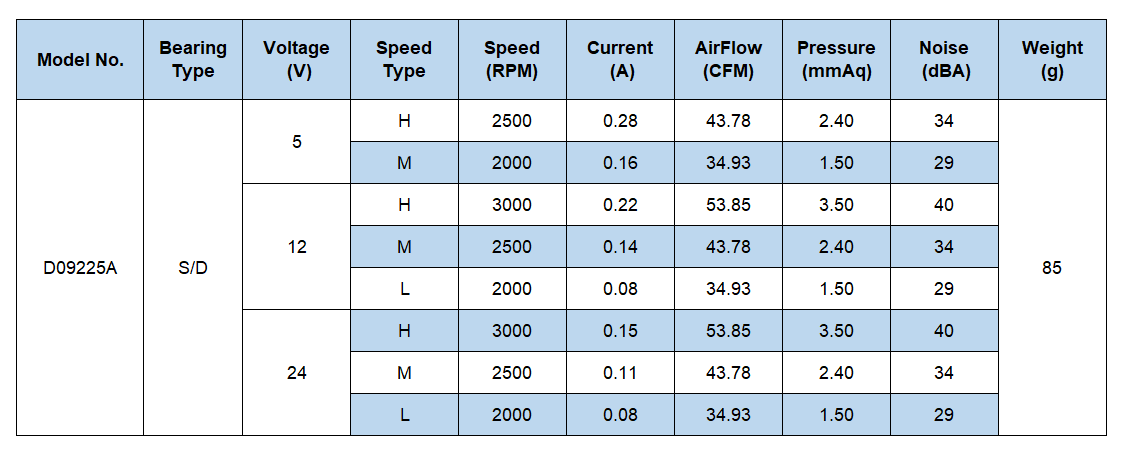

DC AXIAL FAN 92x92x25mm(3.62"x3.62"x0.98")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Strict Waterproof & Dustproof Test;
• With more than 50,000 hours of trouble-free performance;
• Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability;
• 7 blades have large air volume, uniform inlet and outlet air, wear resistance, high temperature resistance;
• Can be added are Auto Start, Rotation Detector, Tachomete Output, Pulse Width Modulation and more functions.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
