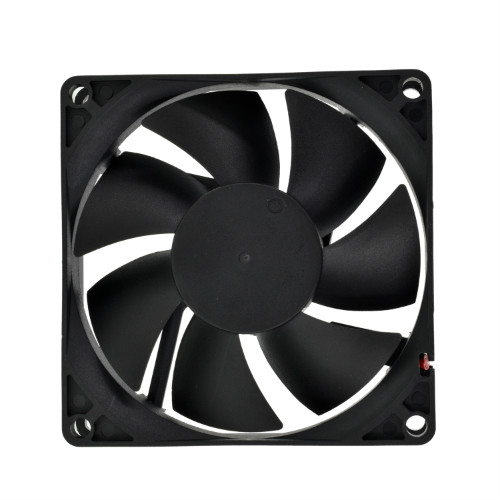

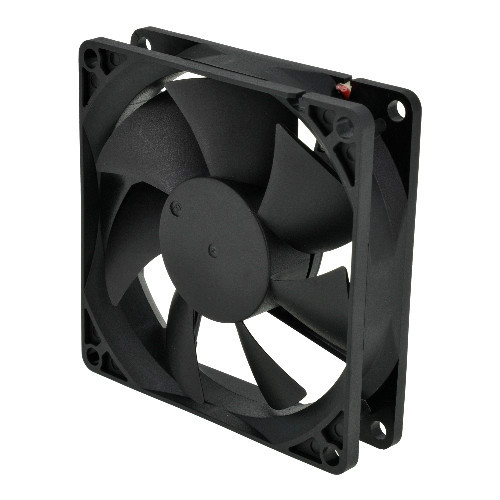

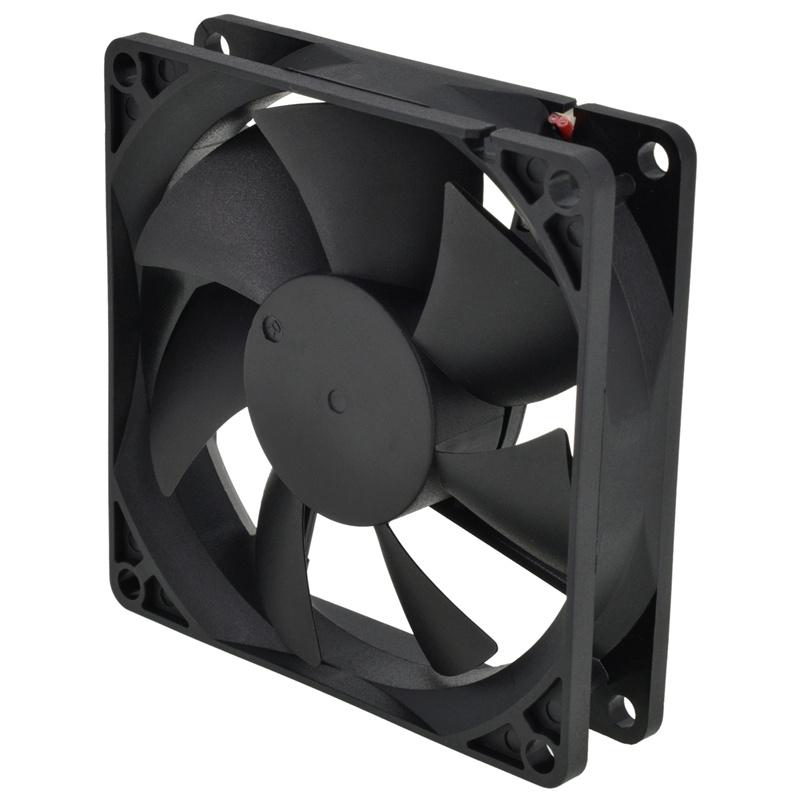

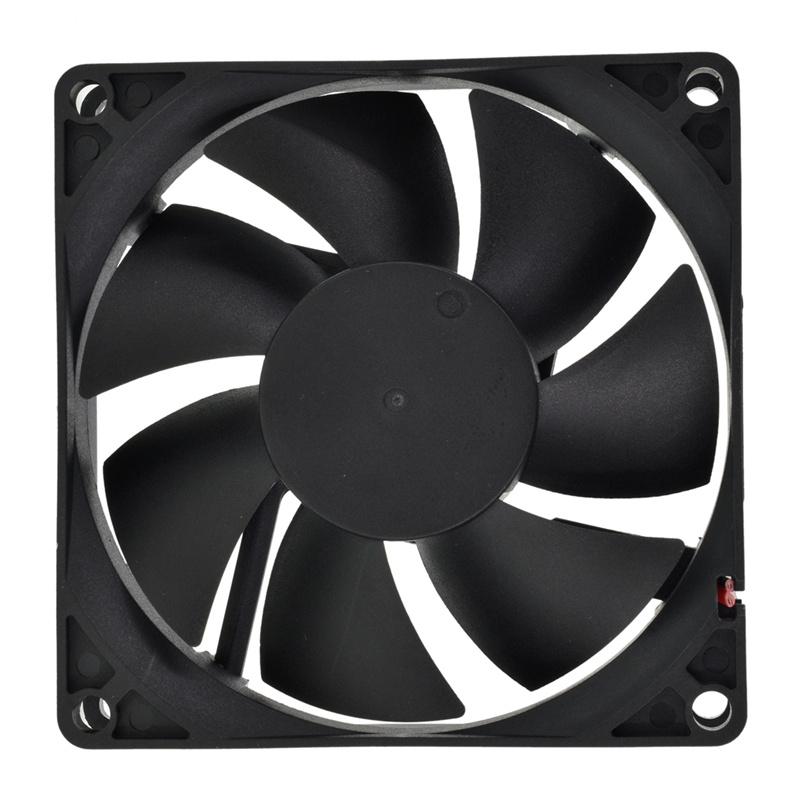

12V/24V High Efficiency Brushless Axial Cabinet Cooling Fan

High Airflow 12V 24V DC brushless fan, Features sleeve/ball bearing. Compact design technology allows this to be completely dustproof and waterproof.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 80 mm(L) x 80 mm(W) x 20 mm(H) / The size of fan in inch is 3.15 in(L) x 3.15 in(W) x 0.78 in(H); The center to center distance beween the mountiong holes is 71.5 ± 0.3 mm / 2.81 in.

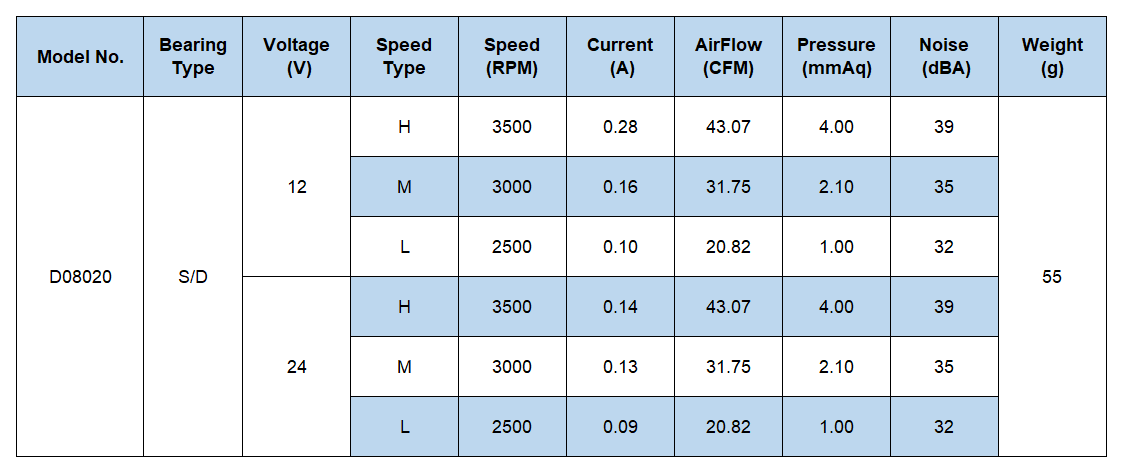

• Operating Voltage Range: DC 12V/24 | Current: 0.09 ~ 0.28 Amp | Speed: 2500 ~ 3500 RPM | Airflow: 20.82 ~ 43.07 CFM | Noise: 32 ~ 39 dBA | Pressure: 1.00 ~ 4.00 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

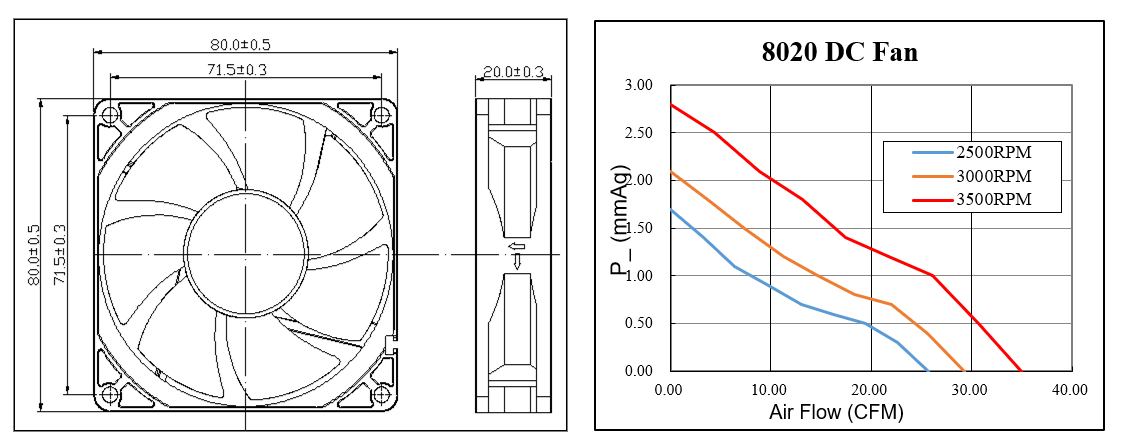

DC AXIAL FAN 80x80x20mm(3.15"x3.15"x0.78")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Stable performance, lower operating noise and long service life;
• Our products are customized accroding to customer's requirements;
• Excellent performance and impeccable quality for dc cooling system fan with a square housing;
• Impedance protection ensures safe operation at high temperatures;
• Wrappeed in pure copper wire high temperature resistance, and energy saving .It make fan have a at least 35000 hours long life span.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

DC/AC axial fans are available in several sizes to accommodate diverse applications. They are often used for cooling cabinet refrigerator,wine cabinet.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
