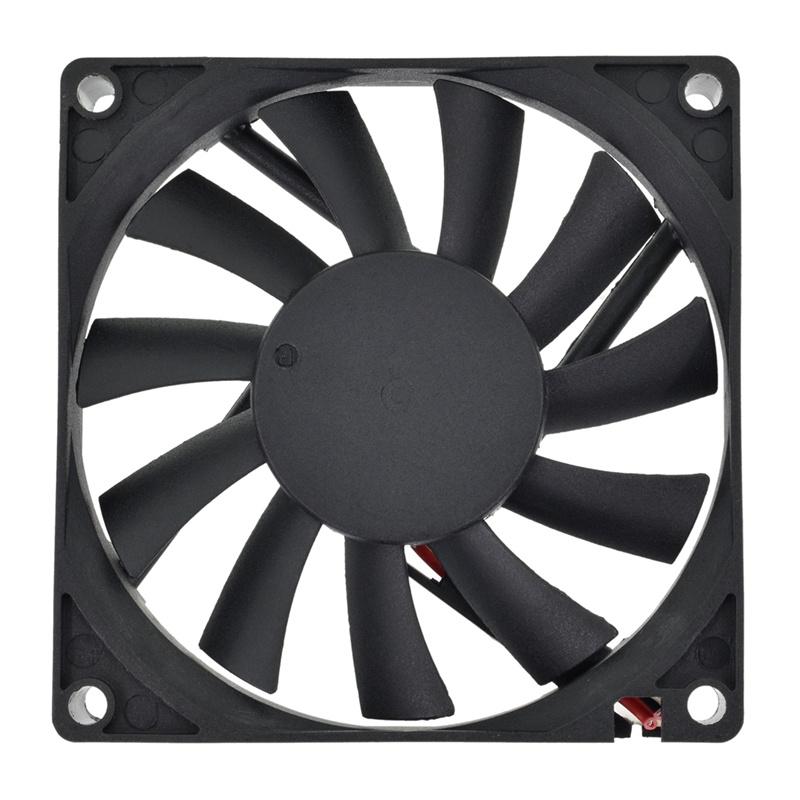

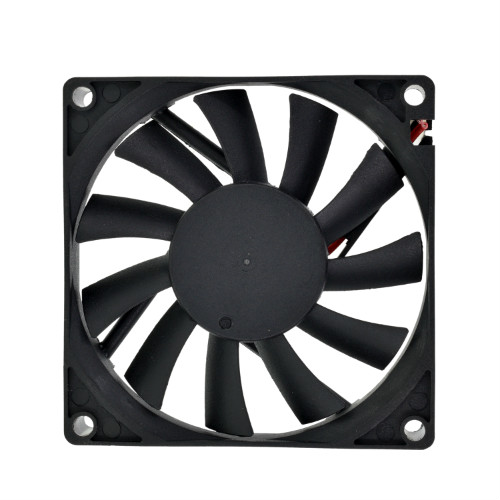

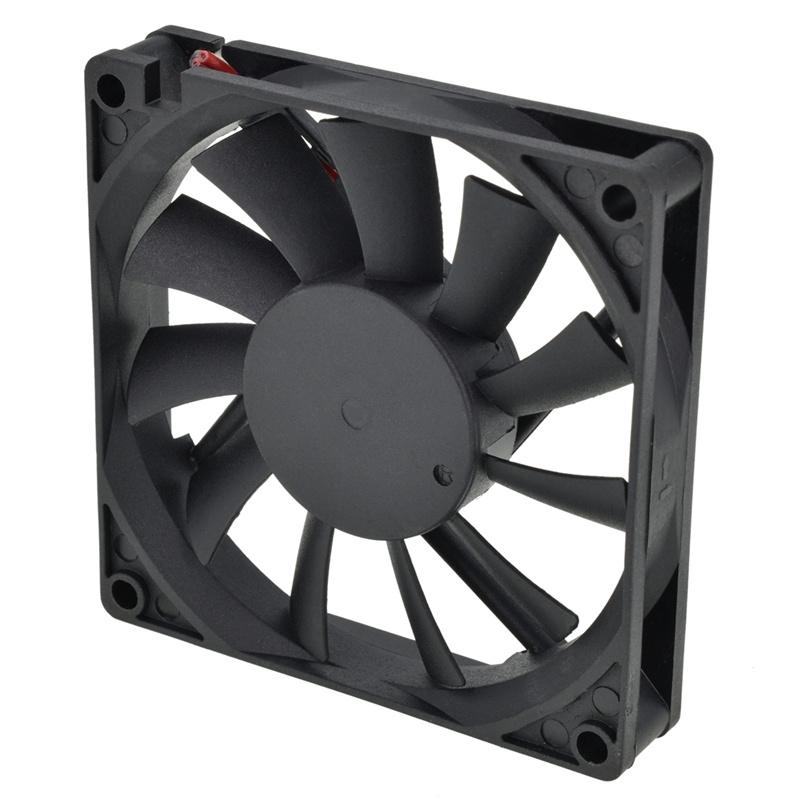

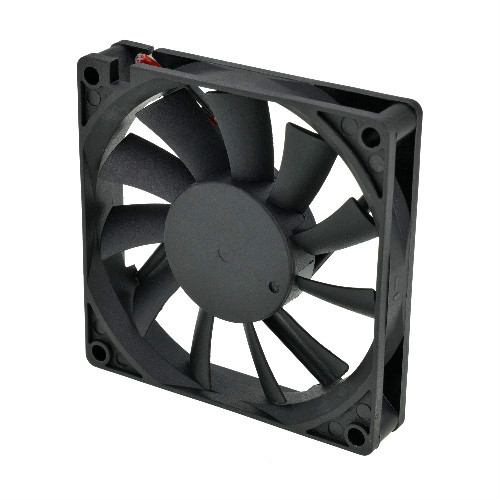

DC Brushless 80mm Axial Exhaust Ventilator Fan

80mm x 80mm x 15mm Air Cooled axial fans is developed by CHUNGFO. It based on the cooling fan market demand and is applicable to cool various equipments.

Our advantage

Our company is committed to promoting the development of environmentally friendly packaging. We use renewable and recyclable materials to minimize our impact on the environment.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

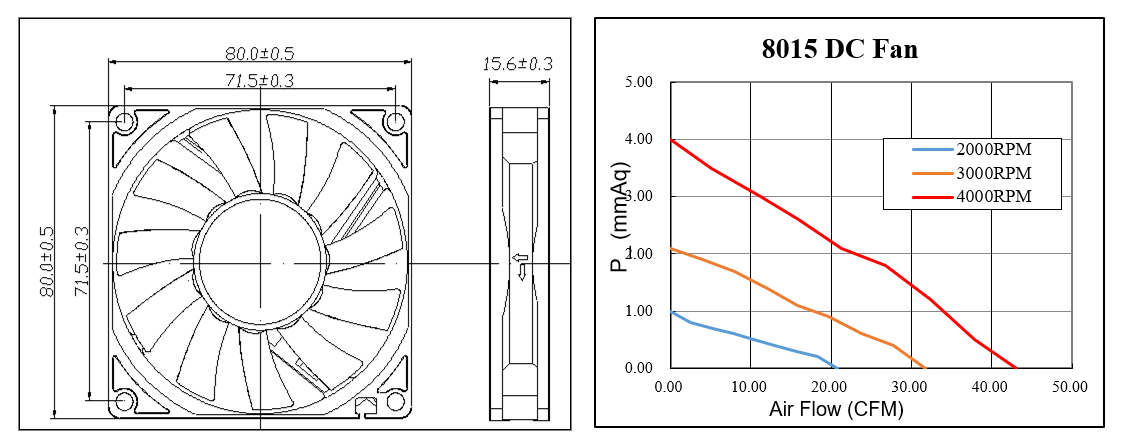

• Dimension of outer the frame is 80 mm(L) x 80 mm(W) x 15 mm(H) / The size of fan in inch is 3.15 in(L) x 3.15 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 71.5 ± 0.3 mm / 2.81 in.

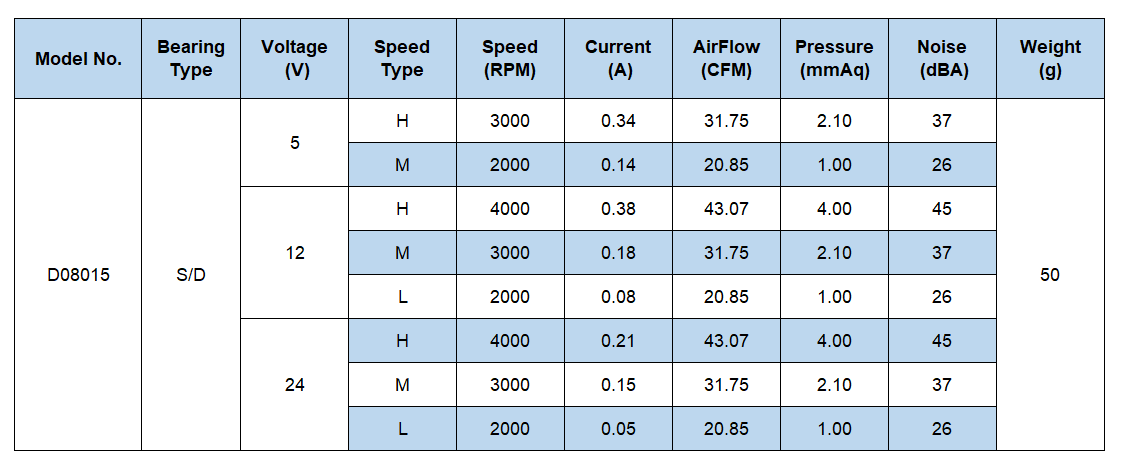

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.08 ~ 0.38 Amp | Speed: 2000 ~ 4000 RPM | Airflow: 20.85 ~ 43.07 CFM | Noise: 26 ~ 45 dBA | Pressure: 1.00 ~ 4.00 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

DC AXIAL FAN 80x80x15mm(3.15"x3.15"x0.59")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• DC 5V 12V 24V Cooling fan, with high performance but low loise;
• Built-in locked rotor protection increases fan life;
• Can be used as a replacement fan for various products;
• The square fan frame and 11 blades provide highly efficient ventilation for the fan;
• Due to the compact structure of the axial fans, they can save a lot of space, and are easy to install and widely used.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

The axial cooling fan has good temperature stability, can work normally in the low temperature environment of -10℃~70℃, and can be well used in cabinet, refrigerators and freezers.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
