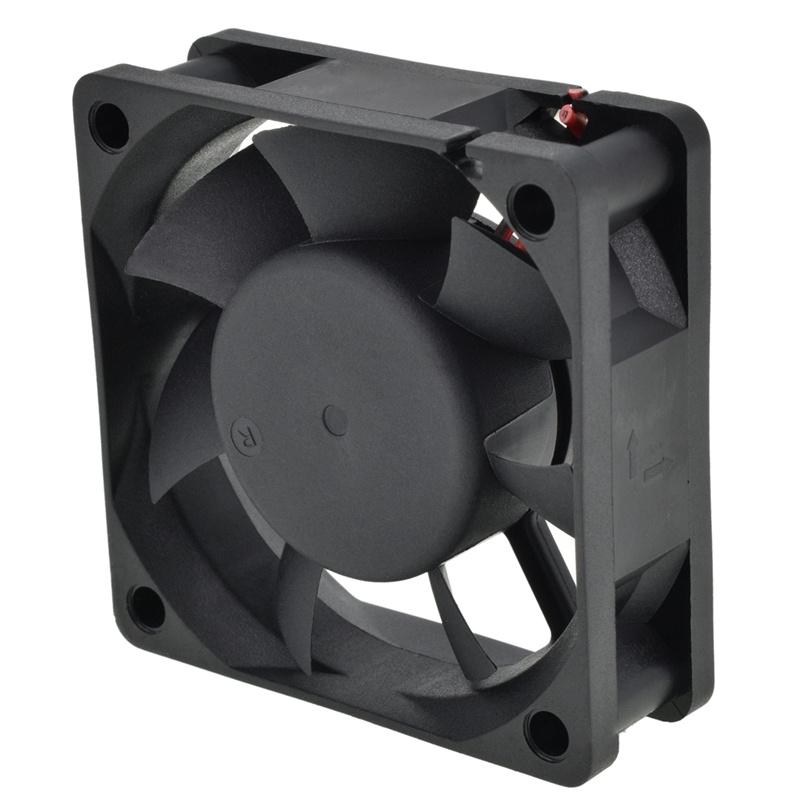

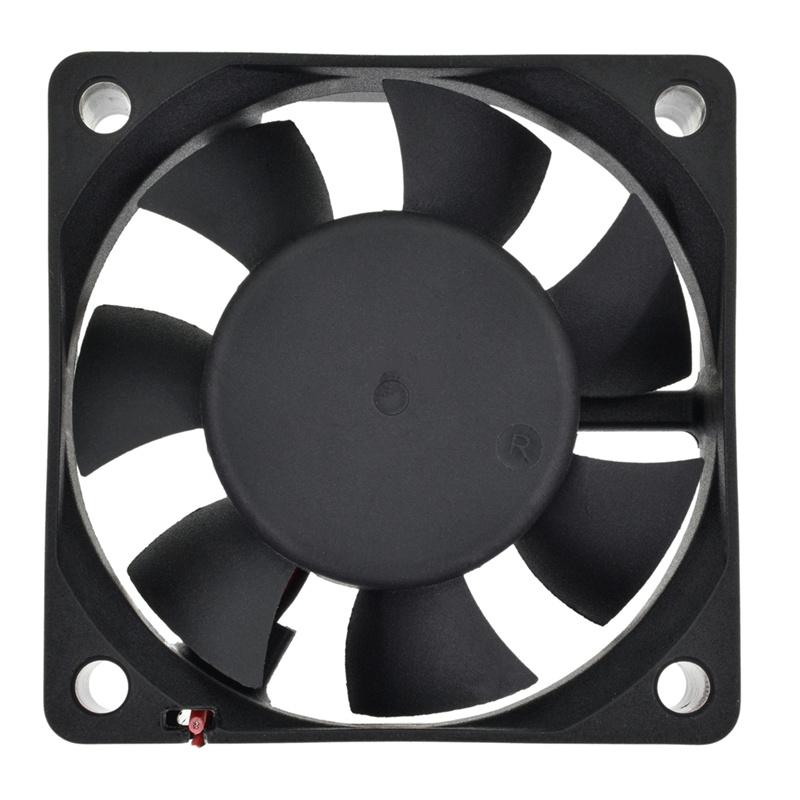

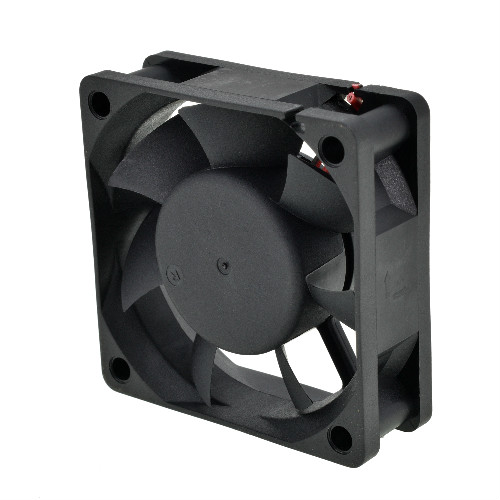

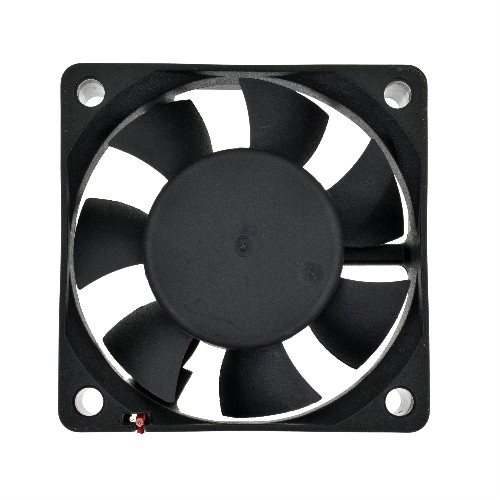

Electric Air Ventilation Radiator Fan with CE Certificate

Long Lifetime Air cooled 60mm Radiator Fan for Ventilation. The square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 60 mm(L) x 60 mm(W) x 20 mm(H) / The size of fan in inch is 2.36 in(L) x 2.36 in(W) x 0.78 in(H); The center to center distance beween the mountiong holes is 50.0 ± 0.3 mm / 1.96 in.

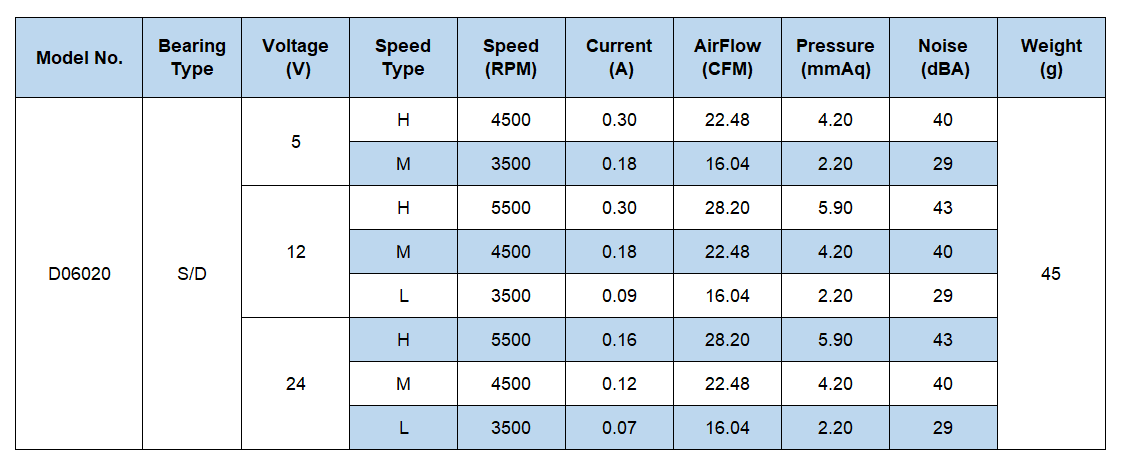

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.07 ~ 0.30 Amp | Speed: 3500 ~ 5500 RPM | Airflow: 16.04 ~ 28.20 CFM | Noise: 29 ~ 43 dBA | Pressure: 2.20 ~ 5.90 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

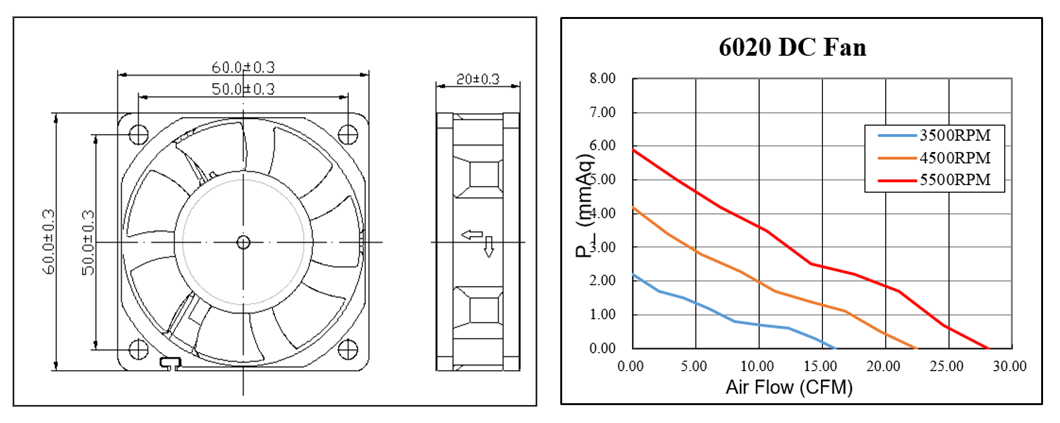

DC AXIAL FAN 60x60x20mm(2.36"x2.36"x0.78")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Light in weight and easy to install;

• 7 pieces of blades get a better heat dissipation effect;

• Double ball bearing exhaust fan with square housing;

• Excellent workmanship, durable frame and long service life;

• The ventilation fan has high ventilation efficiency and very low noise during operation.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

Economic price range of DC/AC fans, which are extensively used in PCs, for both CPU and power supply cooling.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
