Industrial Axial Quiet Ventilation Air Cooling Exhaust Fan

BLDC Ventilation System 5V 12V 24V Customized Fan with CE Certificate. The axial fan can have four wires, two of which were used for power and the other two were used to connect to the equipment's system monitor for speed control.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 60 mm(L) x 60 mm(W) x 25 mm(H) / The size of fan in inch is 2.36 in(L) x 2.36 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 50.0 ± 0.3 mm / 1.96 in.

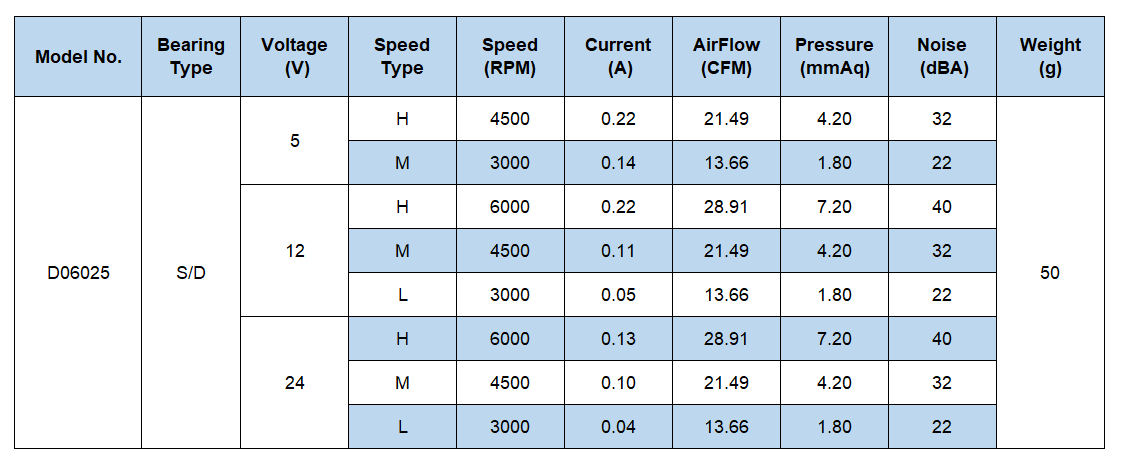

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.04 ~ 0.22 Amp | Speed: 3000 ~ 6000 RPM | Airflow: 13.66 ~ 28.91 CFM | Noise: 22 ~ 40 dBA | Pressure: 1.80 ~ 7.20 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

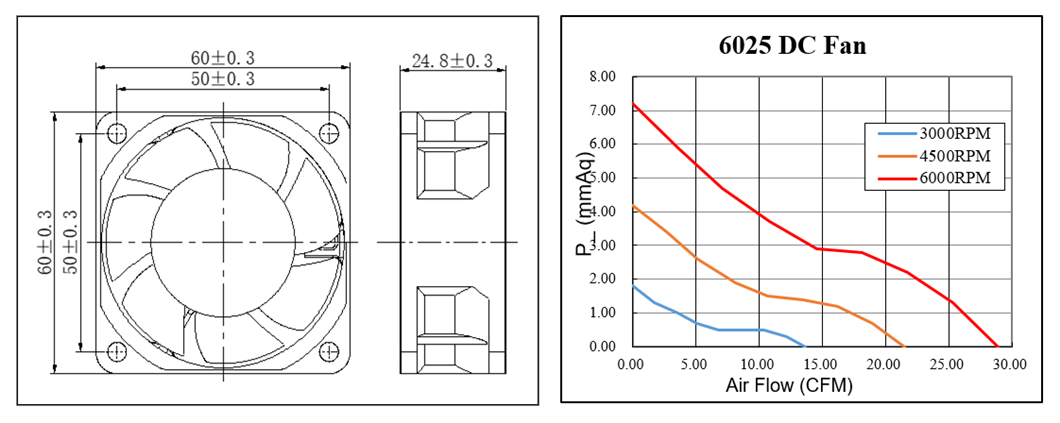

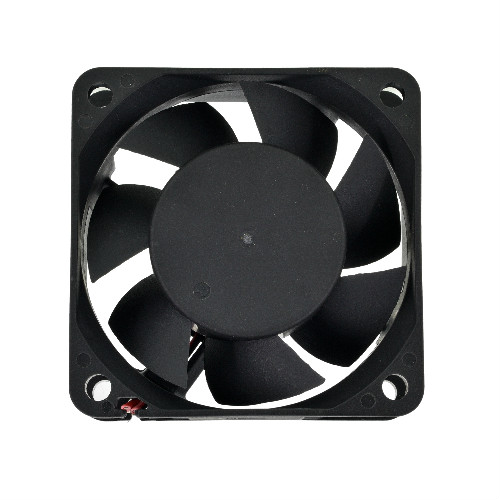

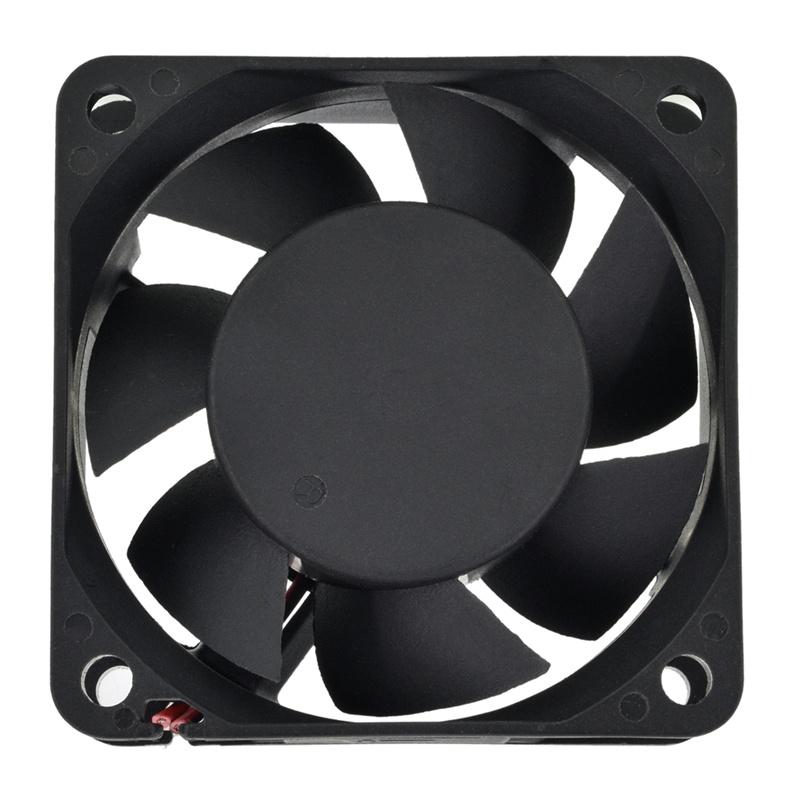

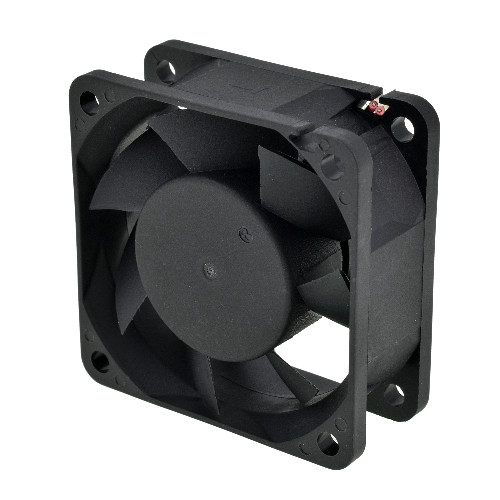

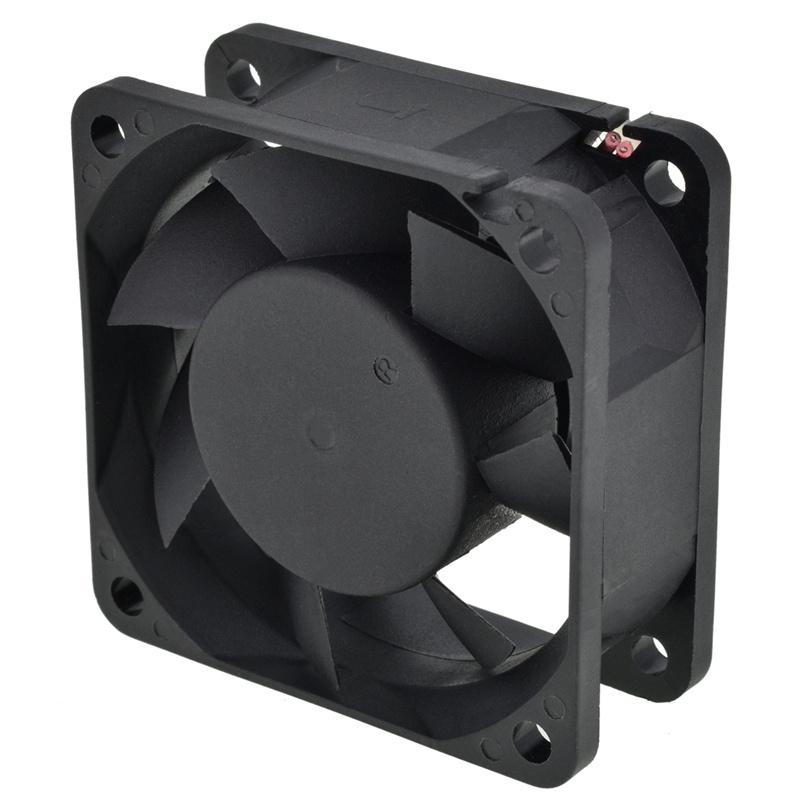

DC AXIAL FAN 60x60x25mm(2.36"x2.36"x0.98")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Short Production Time & Prompt Delivery;
• Long Life Cycle / Low Noise / High Efficiency;
• Winglet fan blade provides minimal air resistance to boost overall airflow;

• The fan blade is made of environmental protection and fireproof PBT material;

• Products smaller,lightweight,have low power consumption,and reduce heat generation.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

CHUNGFO brushless axial DC/AC cooling fans are widely equipped applied to cool computer power supply, refrigerator or freezer.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
