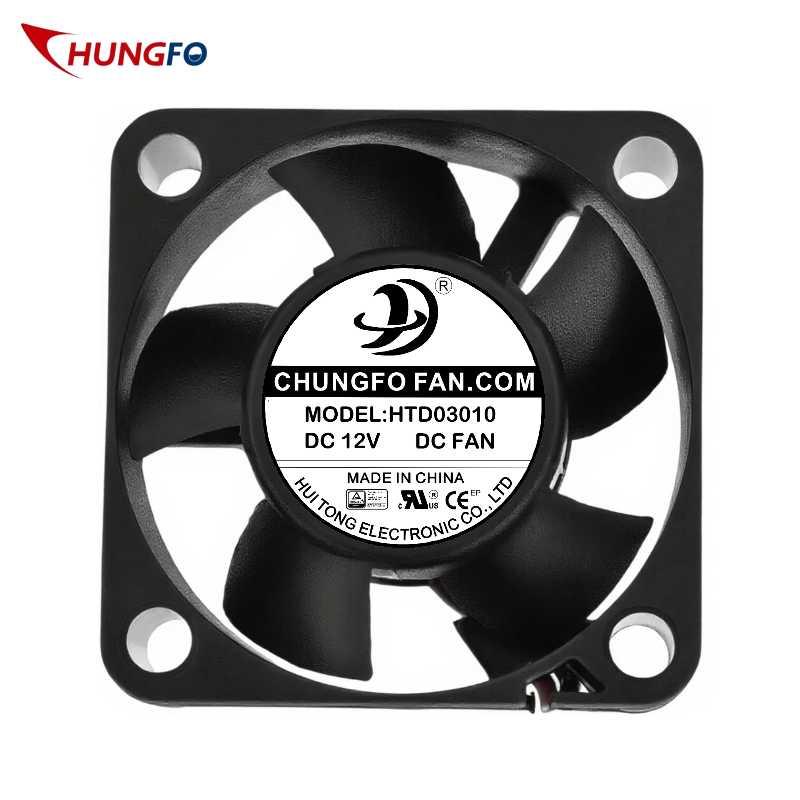

30mm Air Radiator Axial Ventilator Fan with Fg/Rd/PWM

10000RPM BLDC Air Ventilation, High CFM Cooling Case Fan with PBT black frame. The axial mini fan have stable performance and long lifespan, which is over 50,000 hours at 25 ℃.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

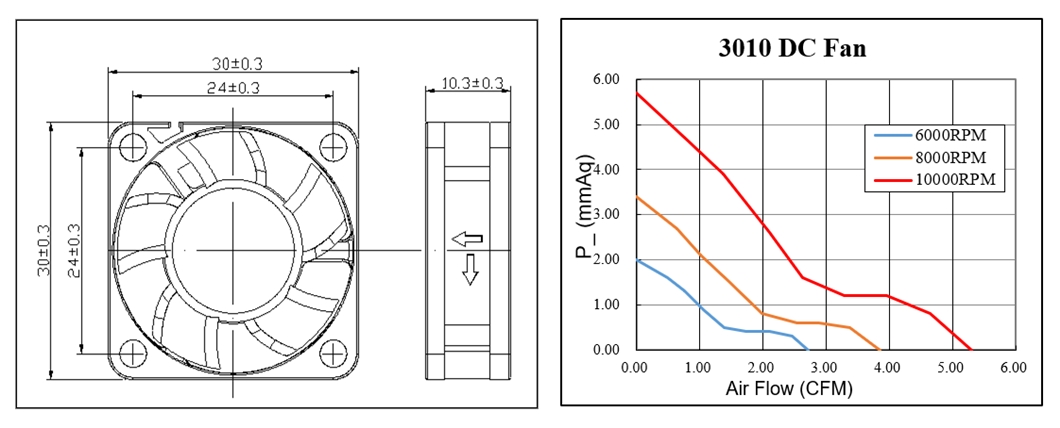

• Dimension of outer the frame is 30 mm(L) x 30 mm(W) x 10 mm(H) / The size of fan in inch is 1.18 in(L) x 1.18 in(W) x 0.39 in(H); The center to center distance beween the mountiong holes is 24.0 ± 0.3 mm / 0.94 in.

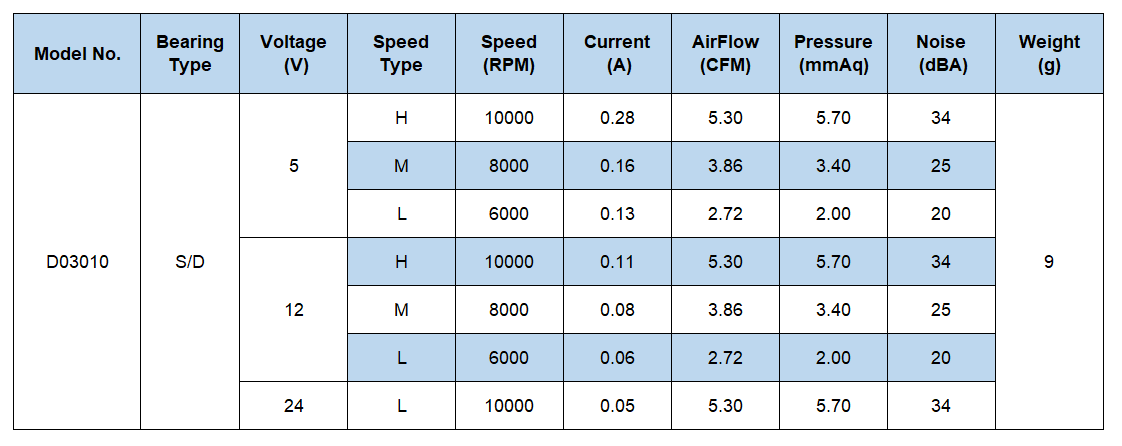

• Operating Voltage Range: DC 5V/12V/24V | Current: 0.05 ~ 0.28 Amp | Speed: 6000 ~ 10000RPM | Airflow: 2.27 ~ 5.30 CFM | Noise: 20 ~ 34 dBA | Pressure: 2.0 ~ 5.7 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

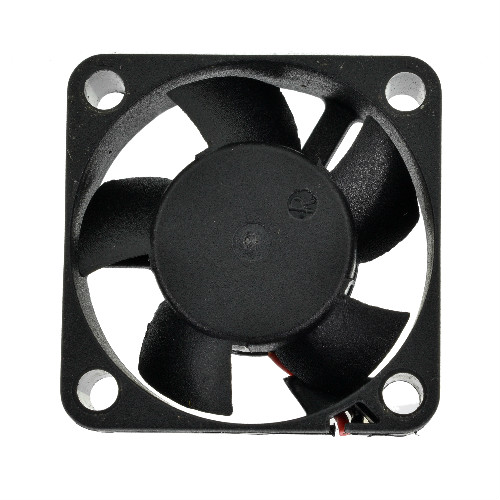

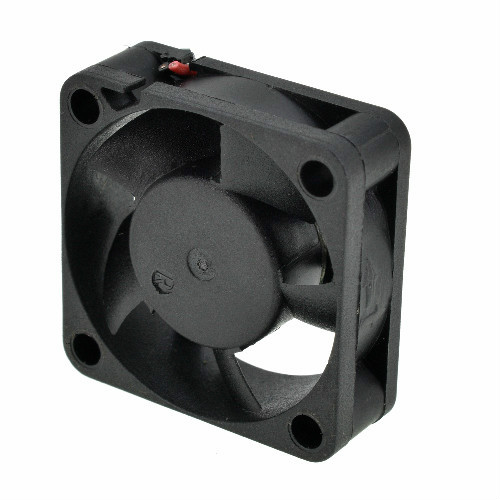

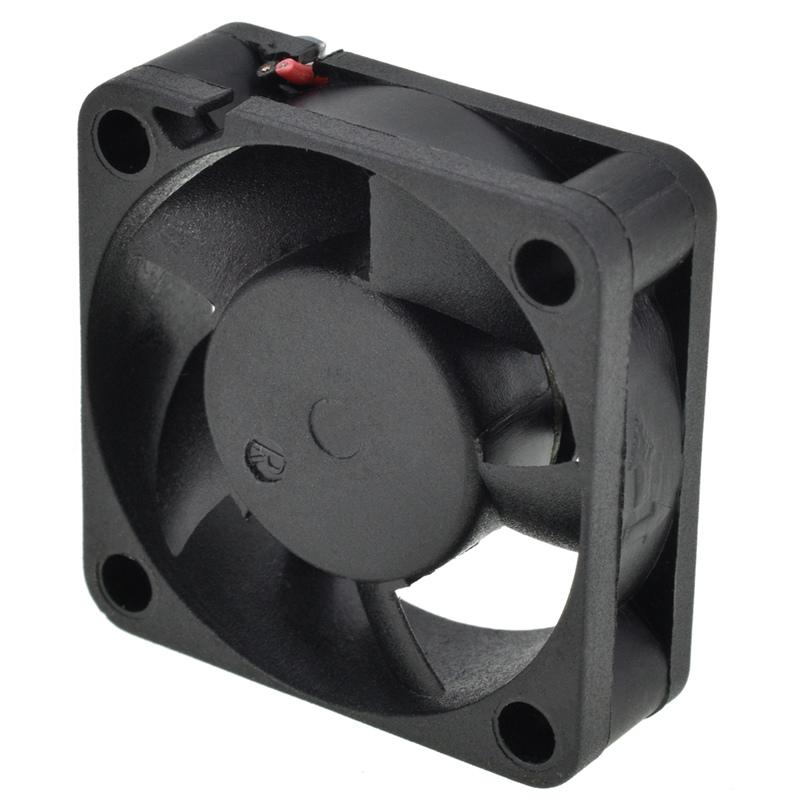

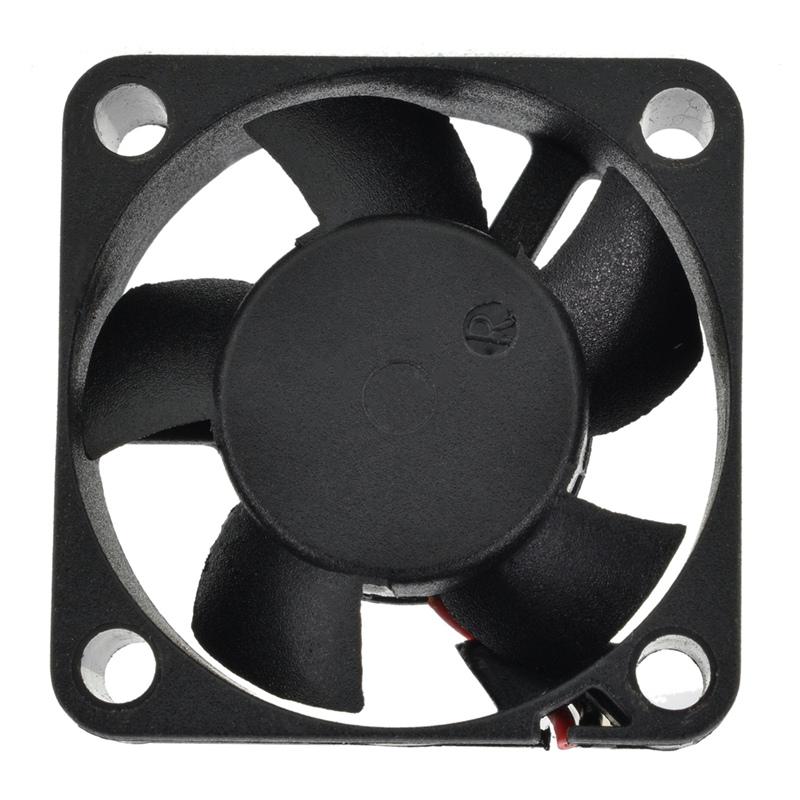

DC AXIAL FAN 30x30x10mm(1.18"x1.18"x0.39")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Featrue

• Double ball bearing exhaust fan with Square Housing;

• Customization is also acceptable;

• greatly reduce the operating noise and improve efficiency;

• All our products are approved by UL/CE, as well as in compliance with RoHS requirement;

• Due to the compact structure of the axial fans, they can save a lot of space, and are easy to install and widely used.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Video

Application

There are many models and different parameters of DC axial fans, which make them suitable for the differences of specific applications.

DC axial fan products are widely used in computers, communication equipment, frequency converters, teller machines, automobile freezers, welding machines, induction cookers, audio equipment and other peripheral cooling, refrigeration and ventilation equipment.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems,computers, and other electronics running at their ideal temperature and optimal speed.

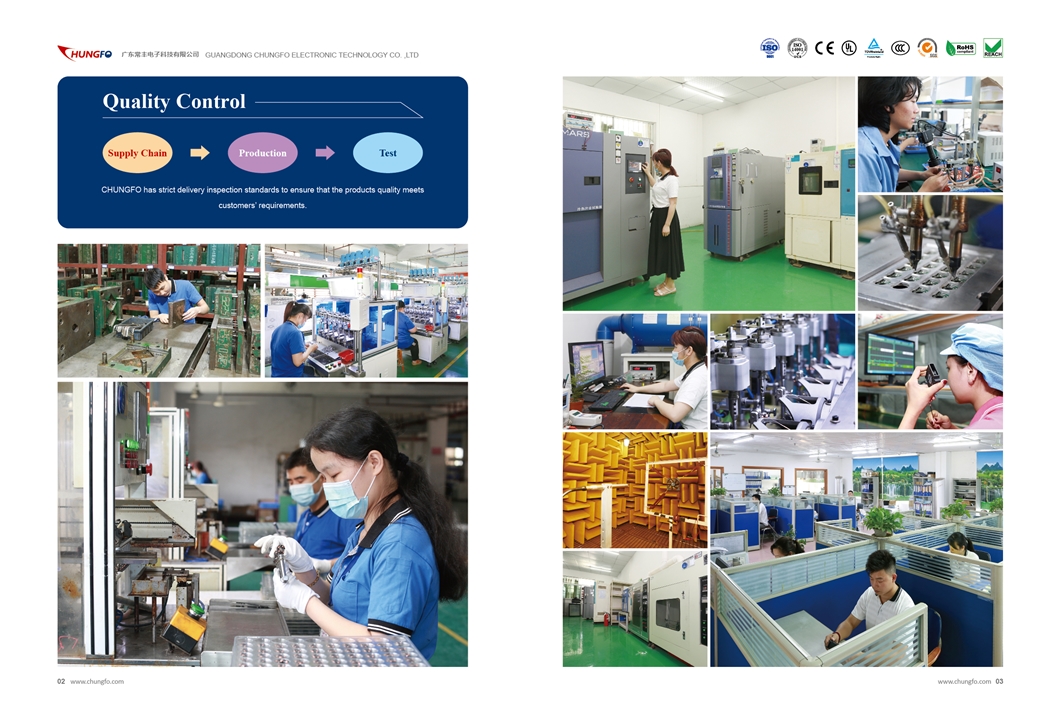

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
