Plastic Airflow Exhaust Axial Fan for Ventilation Products

Axial Exhaust Fan, Replacement for High CFM Cooling Fan, 400mm by 400mm by 28mm with Speed Ccontrol (5V 12V 24V DC). The fan blade is made of environmental protection and fireproof PBT material.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

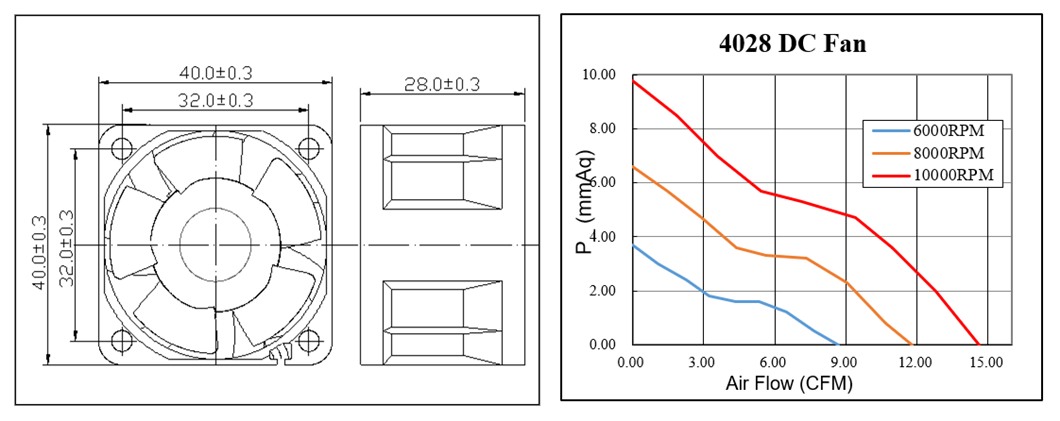

• Dimension of outer the frame is 40 mm(L) x 40 mm(W) x 28 mm(H) / The size of fan in inch is 1.57 in(L) x 1.57 in(W) x 1.10 in(H); The center to center distance beween the mountiong holes is 32.0 ± 0.3 mm / 1.25 in.

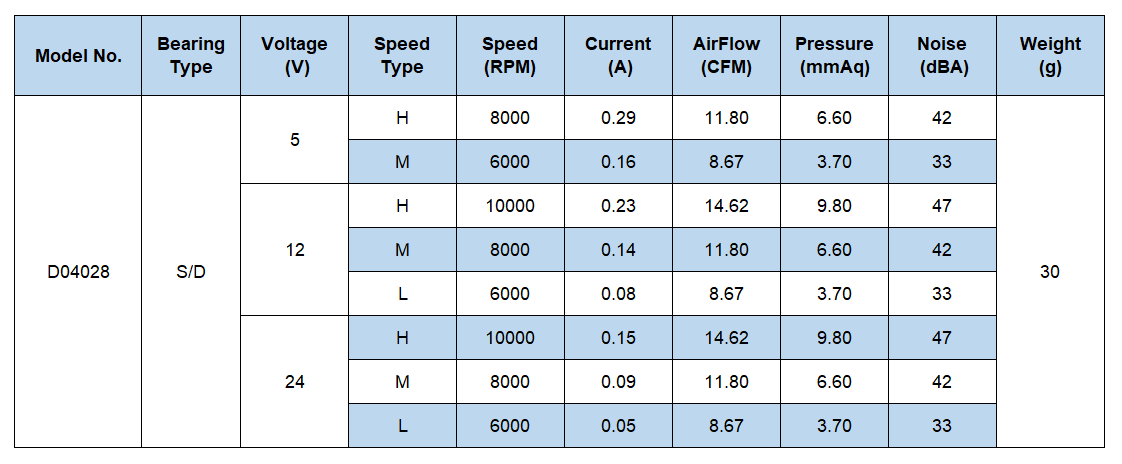

• Operating Voltage Range: DC 5V/12V/24 | Current: 0.04 ~ 0.29 Amp | Speed: 6000 ~ 10000 RPM | Airflow: 8.67 ~ 14.62 CFM | Noise: 33 ~ 47 dBA | Pressure: 3.7 ~ 9.8 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

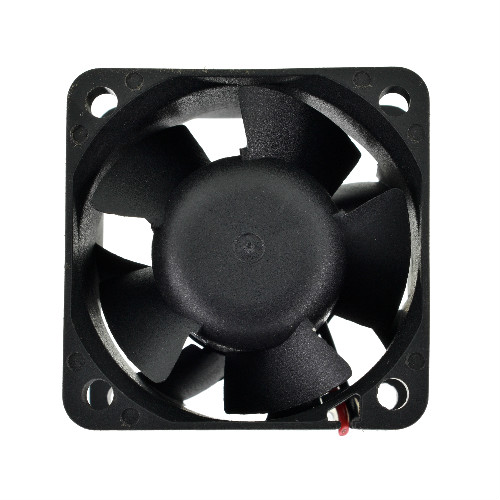

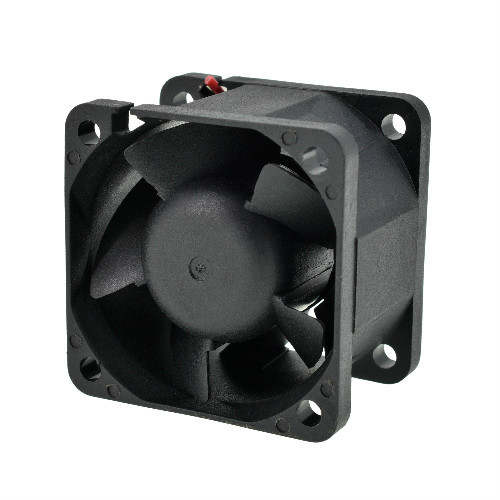

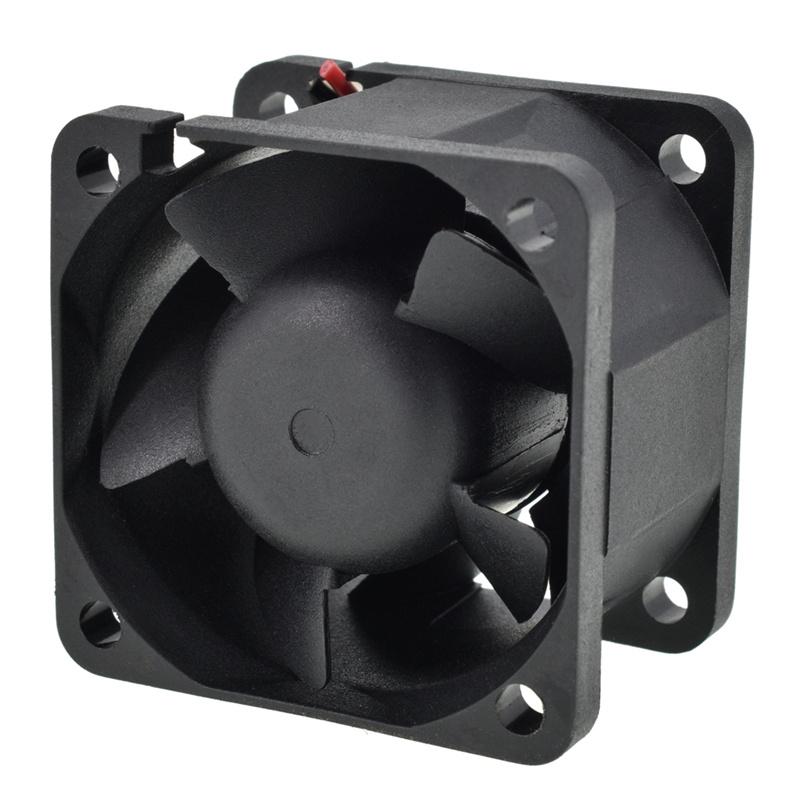

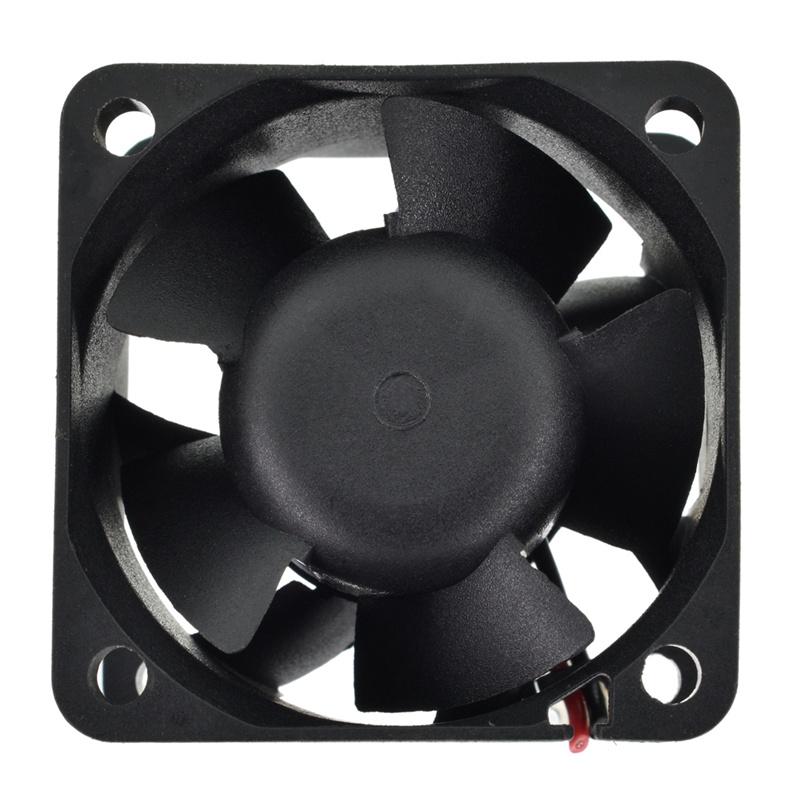

DC AXIAL FAN 40x40x28mm(1.57"x1.57"x1.10")

General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Strict Waterproof & Dustproof Test;
• Large air Valume Adopting high precision double ball bearings;

• PBT black frame brushless axial fan designed for projects that requires cooling or ventilation;

• good temperature stability, can work normally in the low temperature environment of -10℃~70℃;

• It's approved by UL/CE, as well as in compliance with RoHS requirement.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

DC fans are widely used in heat dissipation and air circulation of electronic equipment, such as computers, communications products, photoelectric products, consumer electronics products etc.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
