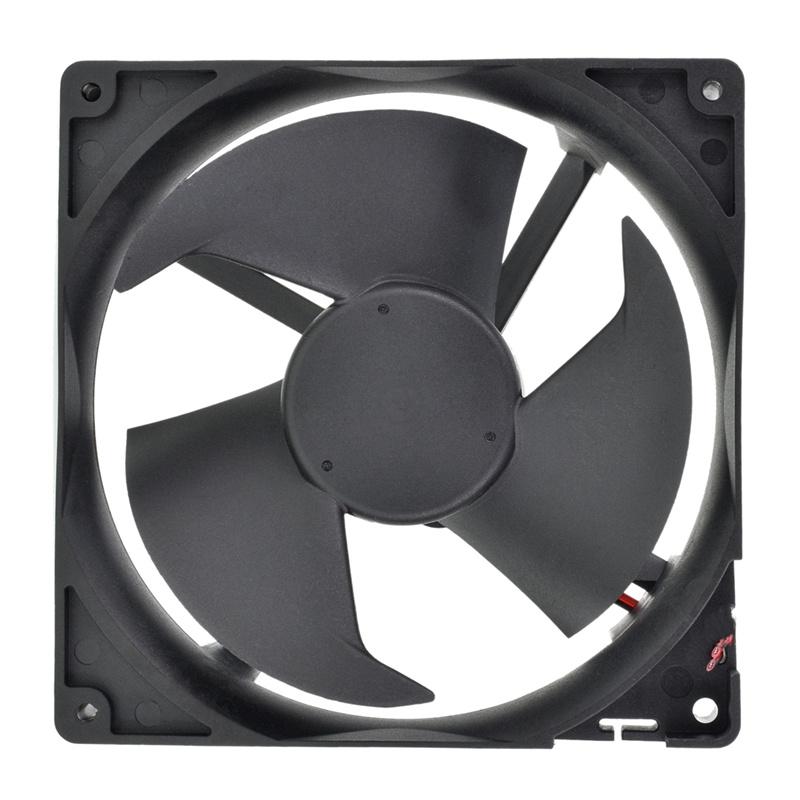

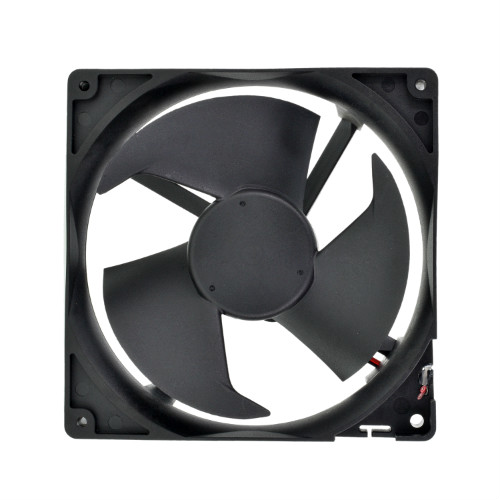

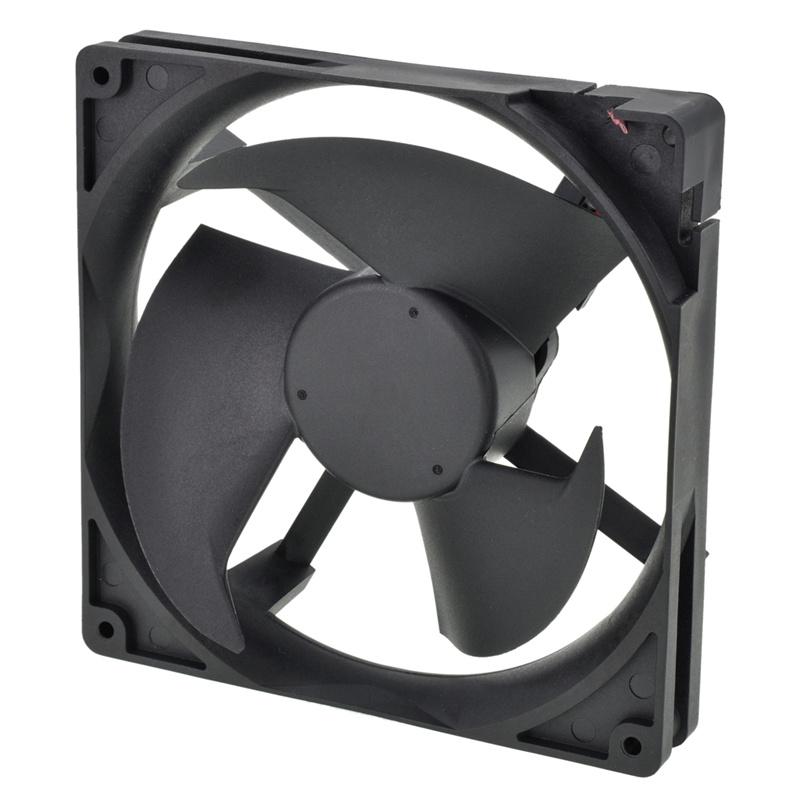

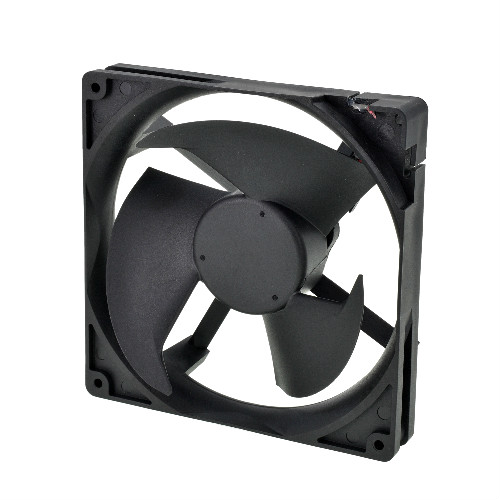

12V Sleeve/Ball Bearing Axial Exhaust Fan for Cooler

High speed 12Volt brushless axial fan adopts DC motor 125mmx125mmx39mm, It adopts double ball bearings rated at 67,000 hours allows the fans to be laid flat or stand upright.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

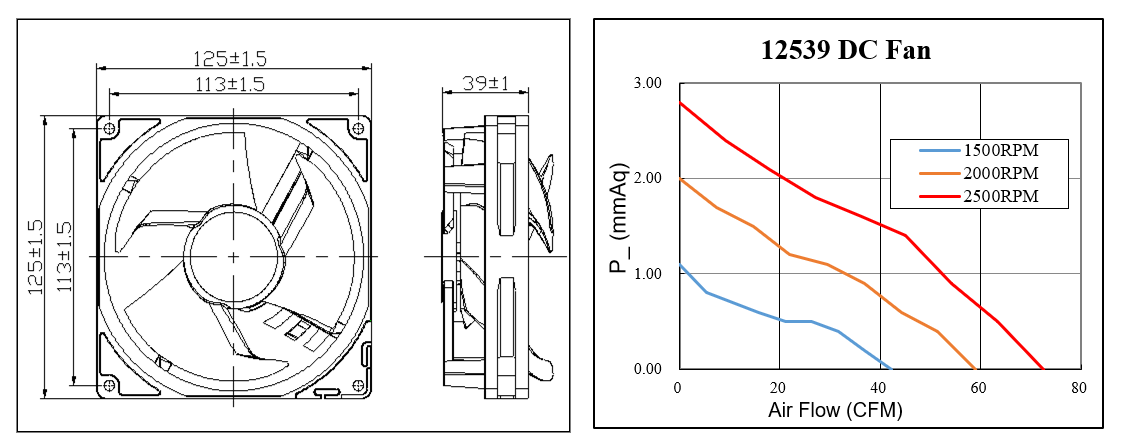

• Dimension of outer the frame is 125 mm(L) x 125 mm(W) x 39 mm(H) / The size of fan in inch is 4.93 in(L) x 4.93 in(W) x 1.54 in(H); The center to center distance beween the mountiong holes is 113.0 ± 1.5 mm / 4.44 in.

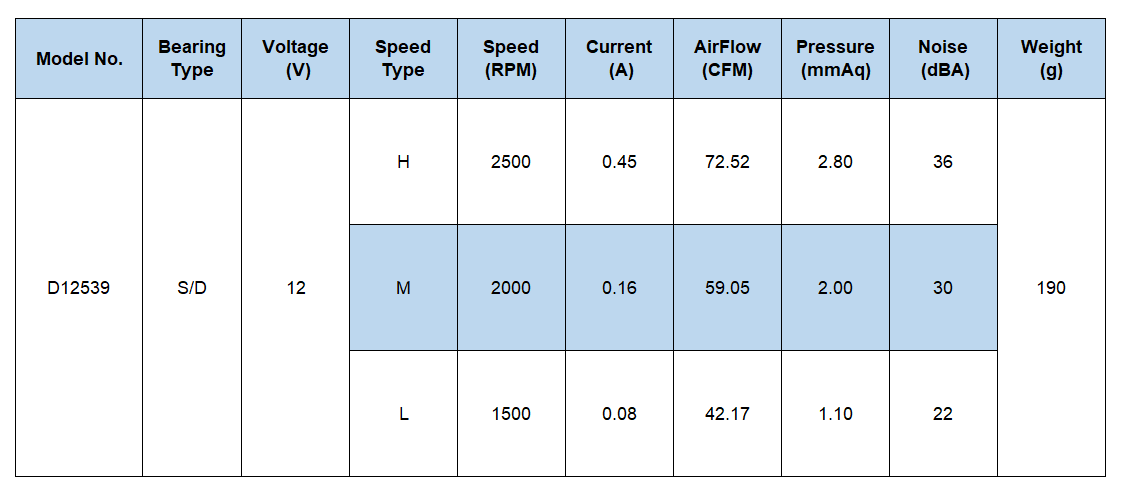

• Operating Voltage Range: DC 12V | Current: 0.08 ~ 0.45 Amp | Speed: 1500 ~ 2500 RPM | Airflow: 42.17 ~ 72.52 CFM | Noise: 22 ~ 36 dBA | Pressure: 1.10 ~ 2.80 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

DC AXIAL FAN 125x125x39mm(4.93"x4.93"x1.54")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Unique multi-blade designs increase airflow;
• Features Dual Ball Bearing, life span up to 67,000 Hrs at 25℃;
• Impedance protection ensures safe operation at high temperatures;
• Parameters can be set according to customer requirements;
• Long life cycle, low noise, high efficiency, meet the strict test of waterproof and dustproof.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

It can be used in refrigeration system. Because of its wide range of products, CHUNGFO provides ideal solutions for various performance ranges and various refrigeration applications.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
