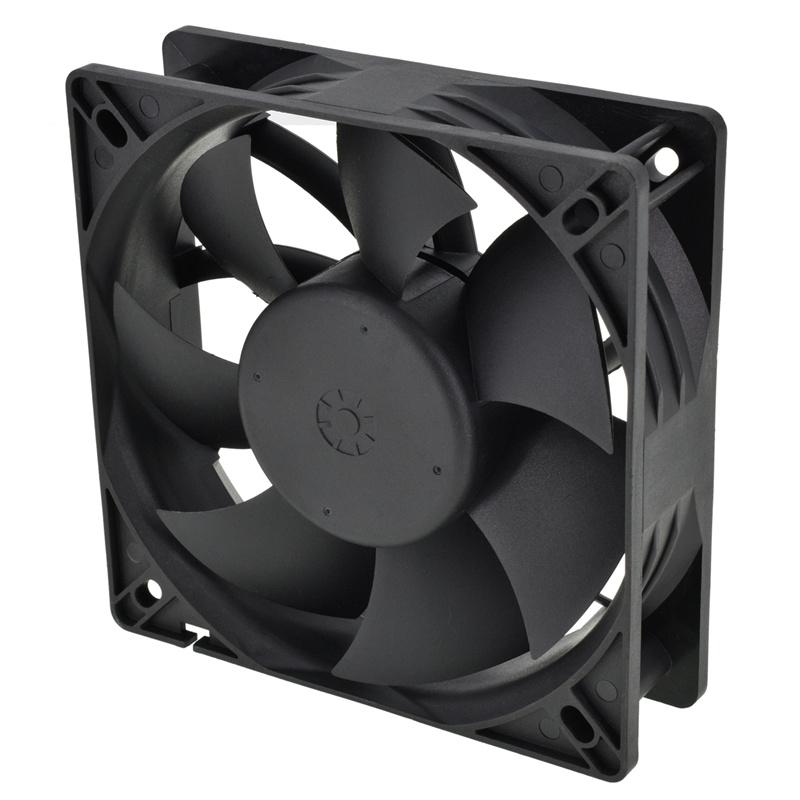

Industrial Air Radiator Cooling System Axial Ventilator Fan

12Volt size of the the fan is 135mm x 135mm x 38mm, 7 blades generate strong airflow to keep the cabinet stay cool. PBT frame and blades, not easy to deform and break, long service life.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

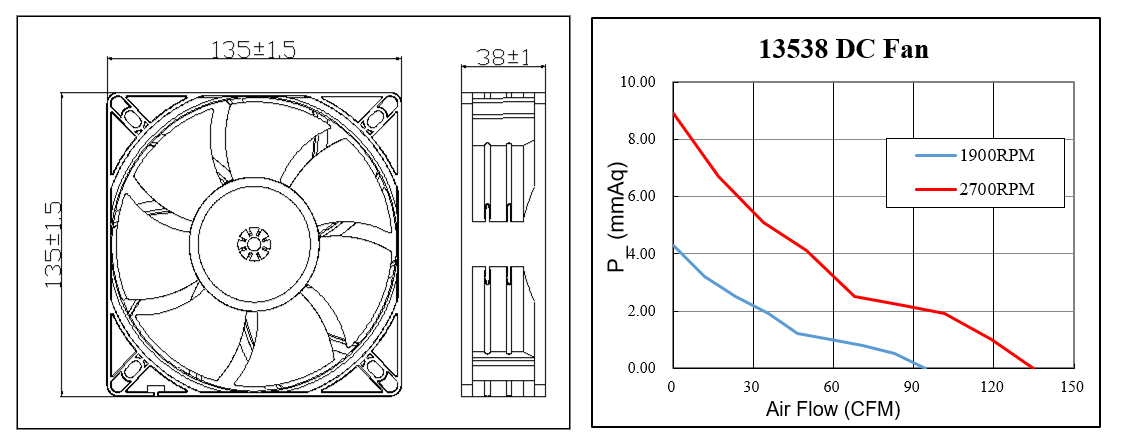

• Dimension of outer the frame is 135 mm(L) x 135 mm(W) x 38 mm(H) / The size of fan in inch is 5.31 in(L) x 5.31 in(W) x 1.49 in(H); The center to center distance beween the mountiong holes is 135.0 ± 1.5 mm / 5.31 in.

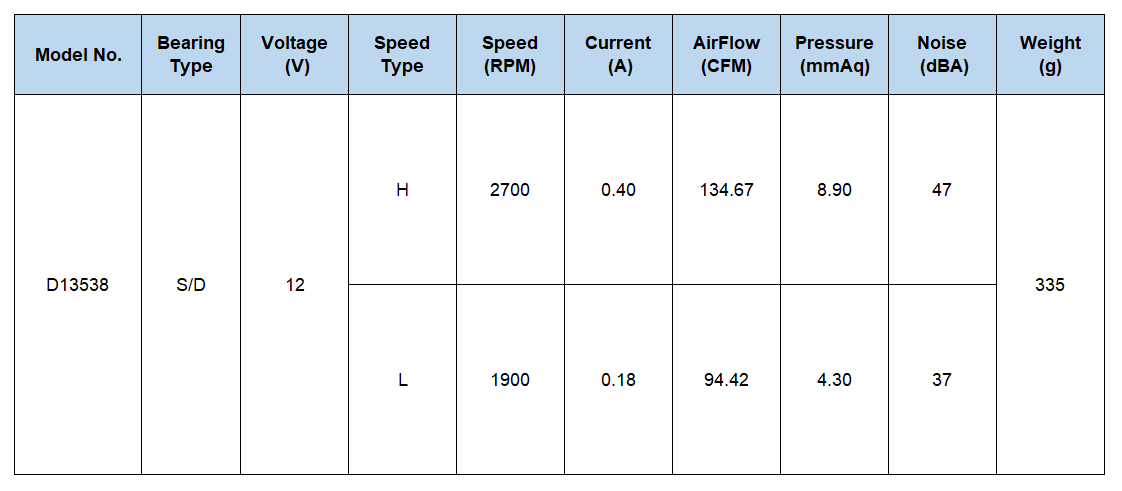

• Operating Voltage Range: DC 12V | Current: 0.18 ~ 0.40 Amp | Speed: 1900 ~ 2700 RPM | Airflow: 94.43 ~ 134.67 CFM | Noise: 37 ~ 47 dBA | Pressure: 4.30 ~ 8.90 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

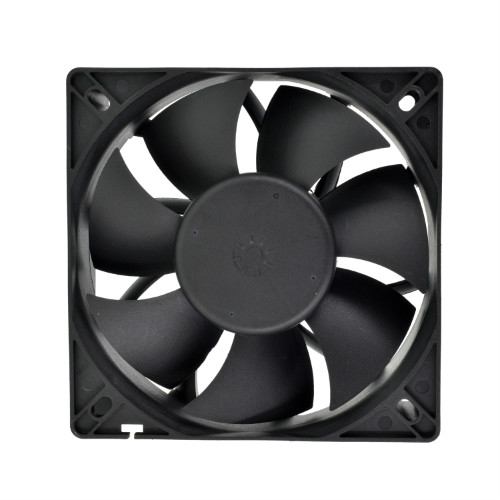

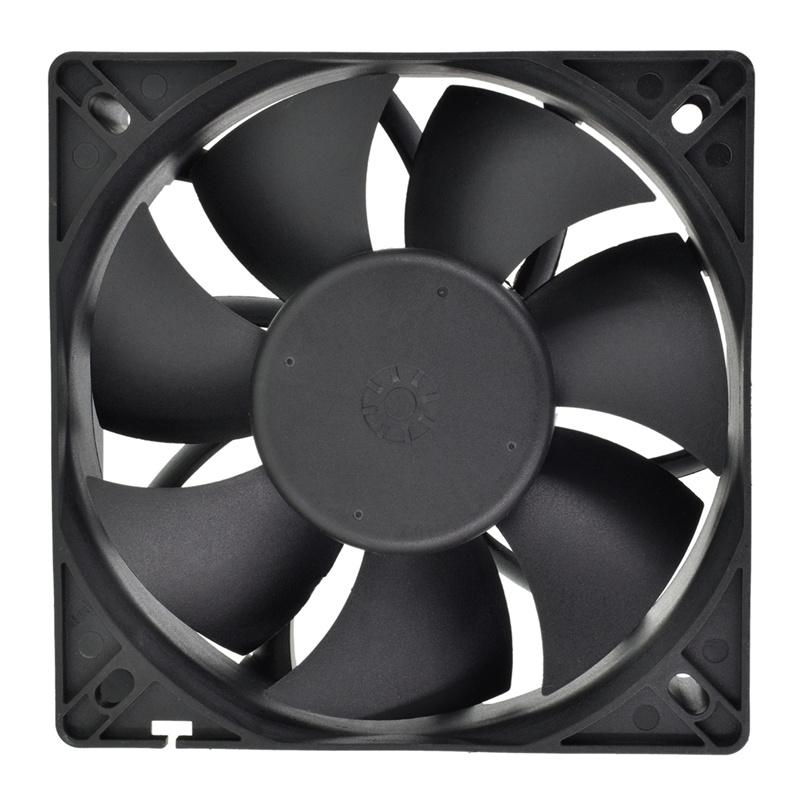

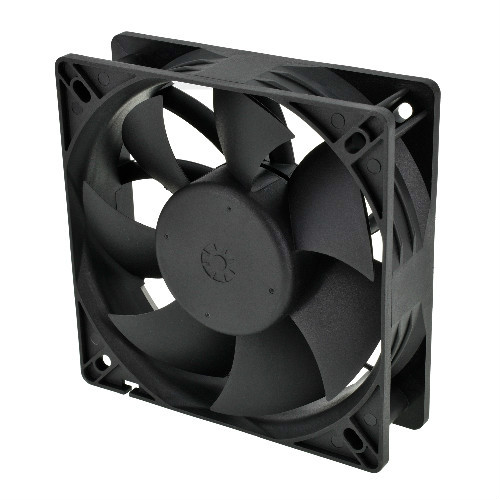

DC AXIAL FAN 135x135x38mm(5.31"x5.31"x1.49")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Great air flow performance and its square housing is easy to install;
• High-quality bearings ensure quiet operation and longer life;
• Each item will be tested carefully and packed tightly before shipping out;
• 12Volt power source, creates cooling systems to keep equipment running at their ideal temperature；
• Our products are customized accroding to customer's requirements;

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

Air Conditioning Technology, ICT and the electronics industry, including telecommunications base stations, telecommunication refrigeration devices, IT hardware.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
