High Speed Exhaust Fan for Axial Cooling 5V/12V

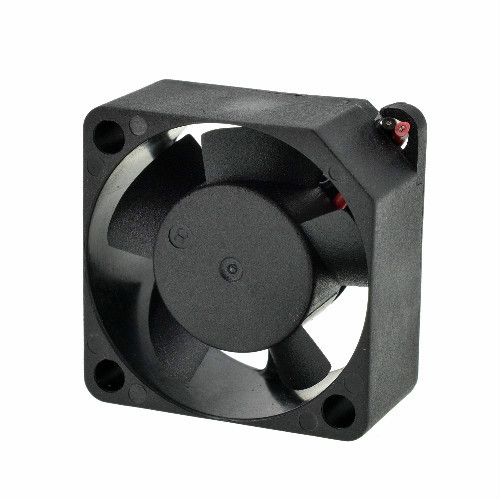

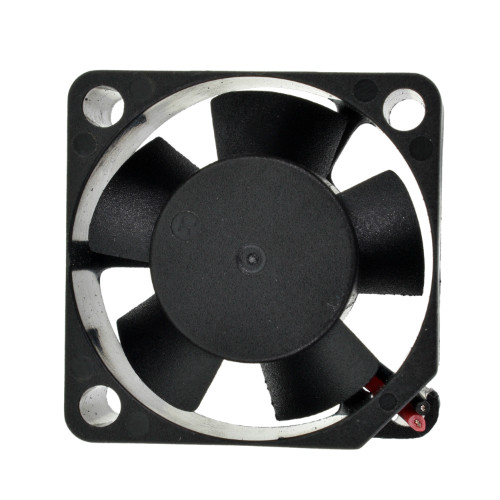

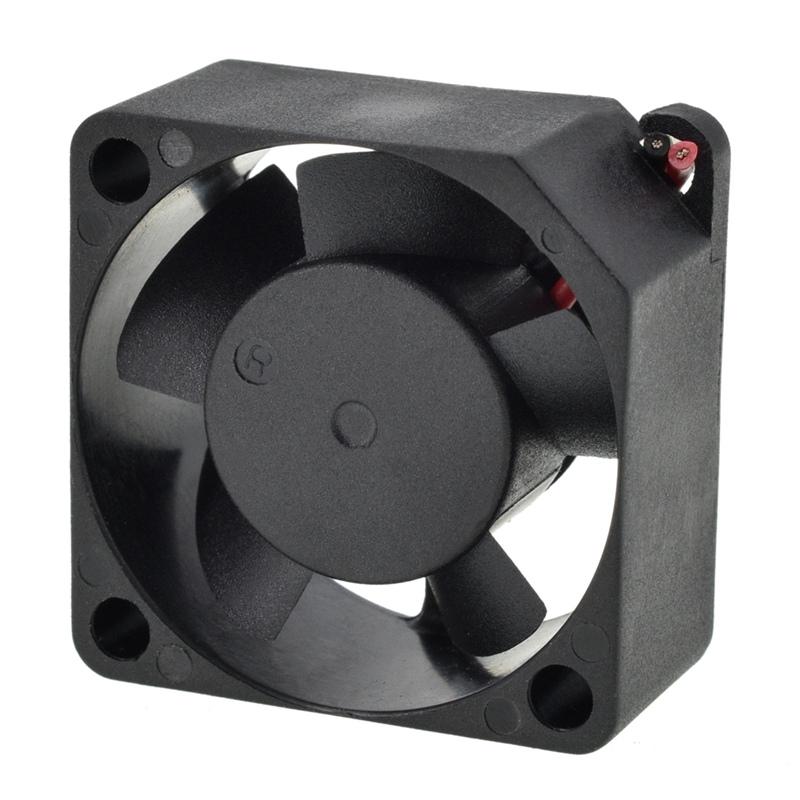

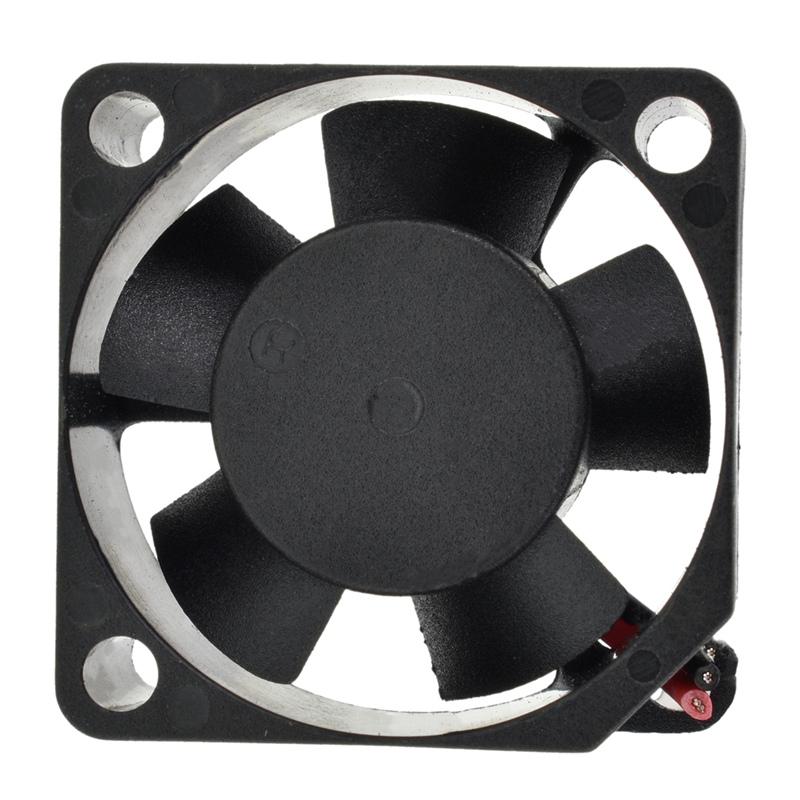

CHUNGFO Axial Fan 3015, 5V 12V DC Small Fan, Ventilation Exhaust Projects Cooling Fan with a square fan frame and 5 blades provide highly efficient ventilation for the fan.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 25mm(L) x 25mm(W) x 7mm(H) / The size of fan in inch is 1.18 in(L) x 1.18 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 24.0 ± 0.3 mm / 0.94 in.

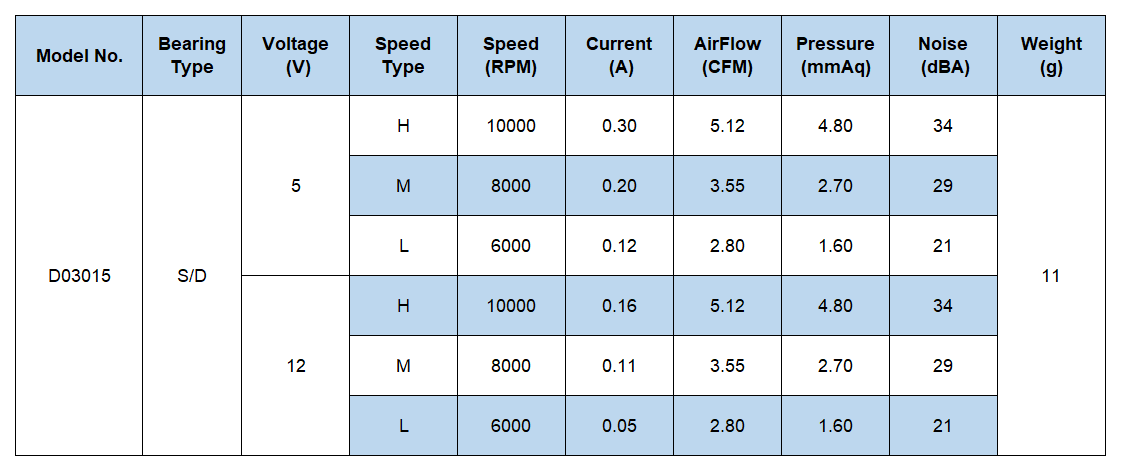

• Operating Voltage Range: DC 5V/12V | Current: 0.05 ~ 0.30 Amp | Speed: 6000 ~ 10000 RPM | Airflow: 2.28 ~ 5.12 CFM | Noise: 21 ~ 34 dBA | Pressure: 1.16 ~ 4.80 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

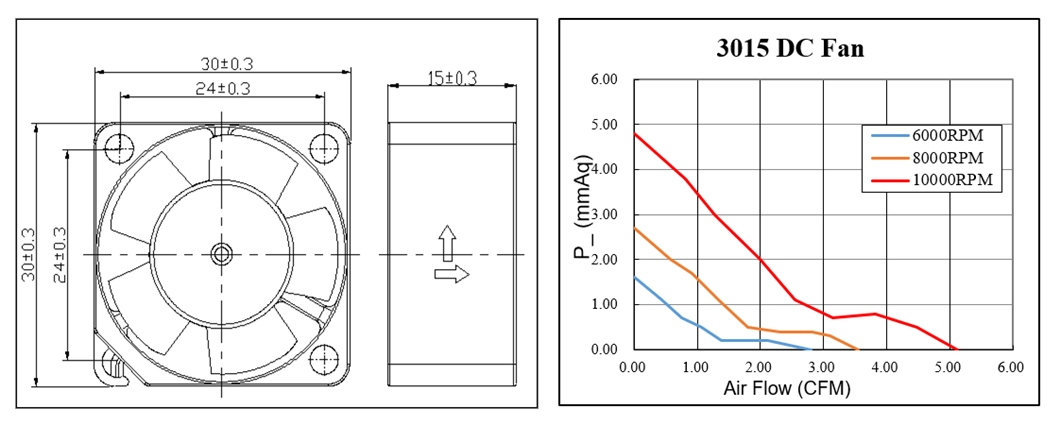

DC AXIAL FAN 30x30x15mm(1.18"x1.18"x0.59")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Long Life Cycle / Low Noise / High Efficiency;
• The fans allows to be laid flat or stand upright;
• Ball and sleeve bearing system allows the fan to be laid flat or stand upright;
• providing efficient parallel airflow to the cooled unit, lower noise, and reduced vibration;
• Our products are customized accroding to customer's requirements.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Video

Application

Our DC/AC Axial fans are available in a large range of models to fit every application.

DC/AC Axial fans are used extensively in freezers, beverage cabinets, wending machines and etc., providing cooling in places with limited enclosed space.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems,computers, and other electronics running at their ideal temperature and optimal speed.

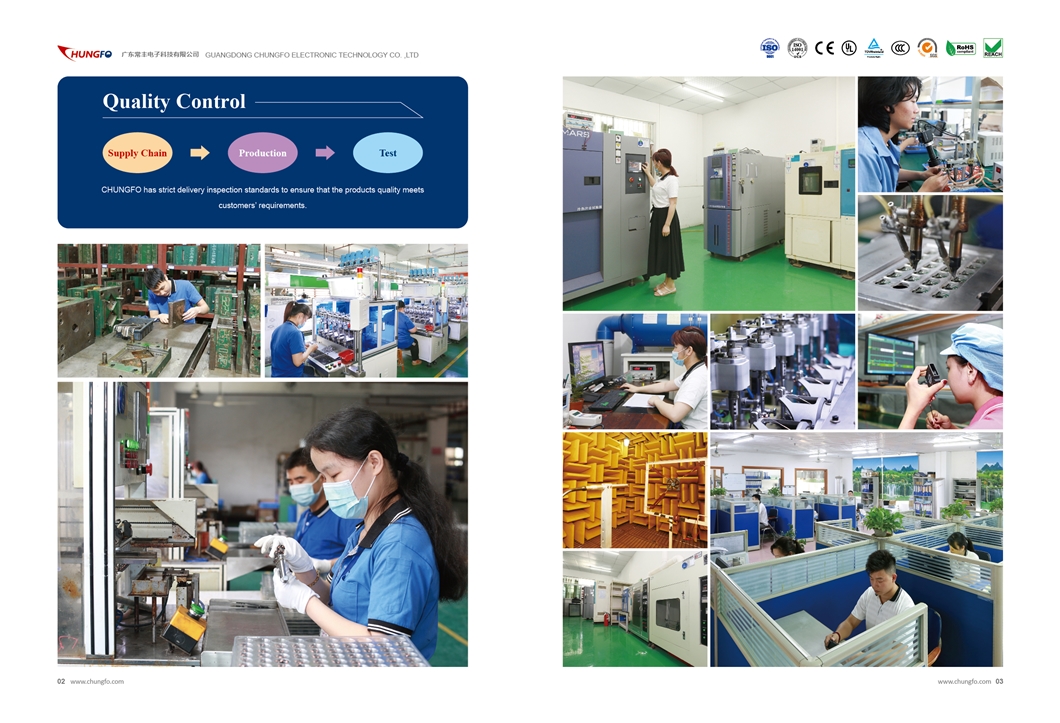

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
